Audiovox Prestige P-950W Owner's Manual

Am/fm/mpx radio with fold-down detachable front panel, compact disc player, cd changer controls, wireless remote control and quartz clock
Hide thumbs Also See for Prestige P-950W:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
OPEN
CLAS
EQ
POP
JAZZ
LOC
MONO
T/F
REG
ST
LOUD
MULTI-COLOR FLOURESCENT DISPLAY
MUTE
SCAN
LOC
1
2
SEL
PAU
SCN

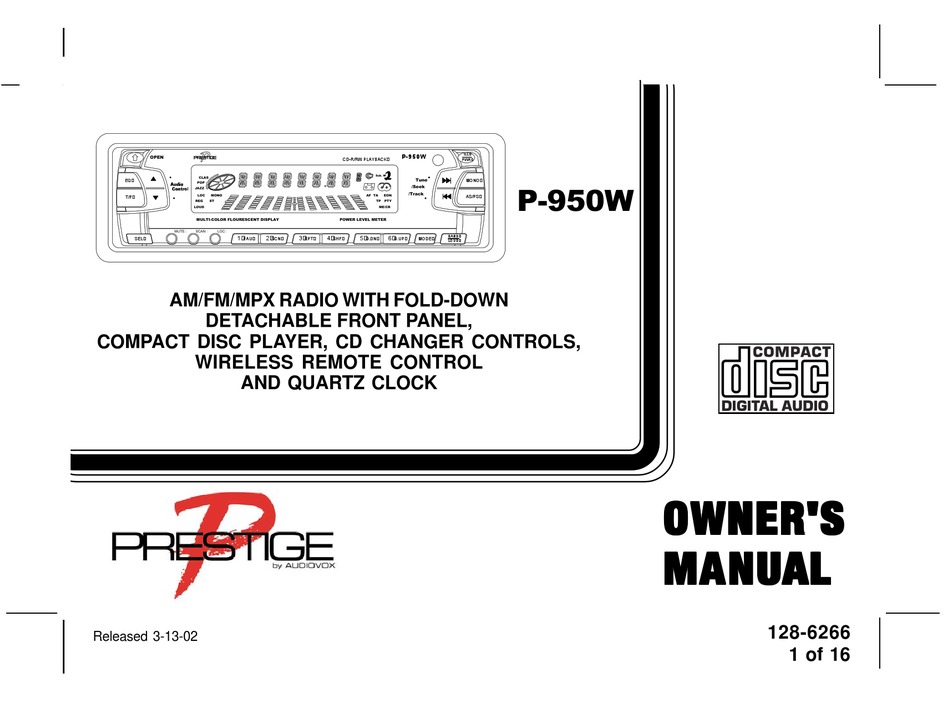

AM/FM/MPX RADIO WITH FOLD-DOWN
DETACHABLE FRONT PANEL,
COMPACT DISC PLAYER, CD CHANGER CONTROLS,
WIRELESS REMOTE CONTROL
AND QUARTZ CLOCK
Released 3-13-02
P-950W
ILL
CD-R/RW PLAYBACK
PWR
Sub. W
Tune
MONO
/Seek
/Track
AF TA
EON
AS/PS
TP
PTY
ME/CR
POWER LEVEL METER
BAND
3
4
5
6
RPT
SHF
D.DN
D.UP
MODE
LOUD
O O O O O WNER'S
WNER'S
WNER'S
WNER'S
WNER'S
MA
MA
NUAL
NUAL
MA NUAL
NUAL
MA
MA
NUAL
128-6266
1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige P-950W and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox Prestige P-950W

Summary of Contents for Audiovox Prestige P-950W

  • Page 1 OPEN CLAS JAZZ MONO LOUD MULTI-COLOR FLOURESCENT DISPLAY POWER LEVEL METER MUTE SCAN AM/FM/MPX RADIO WITH FOLD-DOWN DETACHABLE FRONT PANEL, COMPACT DISC PLAYER, CD CHANGER CONTROLS, WIRELESS REMOTE CONTROL AND QUARTZ CLOCK Released 3-13-02 P-950W CD-R/RW PLAYBACK Sub. W Tune MONO /Seek /Track...

  • Page 2: Table Of Contents

    INDEX Page Operating Instructions ... 3 - 9 Setting the Clock ... 9 CD Player Error Codes... 9 Specifications ...10 CD Changer Controls ...11 CD Changer Error Codes...12 Wireless Remote Control Operation ...13 Care and Maintenance ...14 Warranty ...16 128-6266 2 of 16...

  • Page 3: Operating Instructions

    OPERATING INSTRUCTIONS OPEN MUTE 3, 4, 5, 6, 7 POWER ON-OFF/ILLUMINATION (PWR/ILL) BUTTON Press this button to turn the unit on or off. If the ignition switch is “on”, the unit will also turn on automatically when a compact disc is inserted, or if the MODE switch or BAND switch is pressed.
  • Page 4 BASS CONTROL To adjust the bass level (Equalizer function inactive), first select the Bass mode by pressing the SEL button appears on the display panel. Within 5 seconds of choosing the Bass mode, press the AUDIO CONTROL the bass response, or the AUDIO CONTROL button to increase it as desired.
  • Page 5 audio; however, disc play will continue and not be paused. During this time, the indication will remain on the display panel to show that a disc is still loaded in the unit. AM/FM BAND SELECTOR (BAND) Each time the BAND/LOUD button is pressed momentarily, the radio band is changed.
  • Page 6 and two beeps will sound, indicating that the station is now set into that preset memory position. The station can now be recalled at any time by pressing that button. 4. Repeat the above procedure for the remaining 5 pre-sets on that band and for the other 4 bands on the unit.
  • Page 7 PAUSE (PAU) BUTTON The Pause function is used to freeze disc play when the CD player or optional CD changer is in use. PAUSE will appear flashing on the display. Press this button again to resume disc play; the PAUSE indication will disappear.

  • Page 8: Notes On Use Of Front Panel

    PRE-SET SCAN (PS) /AUTO-STORE TUNING (AS) Press this button momentarily to scan the stations pre-set into the six memories of the current band in use. The unit will stop at each pre-set station for 5 seconds before continuing to the next pre-set station (the pre-set number on the display panel will flash during Pre-Set Scan operation).

  • Page 9: Setting The Clock

    NOTES ON USE OF REMOTE INPUT JACK: The remote input jack provides the user option of applying an external audio source to the radio.The audio jack is compatible with most "Walkman" CD and cassette players, or an MP3 digital audio playback unit. When the external source is connected, only that media is played by the radio;...

  • Page 10: Specifications

    SPECIFICATIONS Size: 7" W x 2" H 178 mm x 50 mm x 168 mm Operating Voltage: 12 volts DC, negative ground Fuse Ratings: Constant (Yellow wire): 15 AMP. Switched (Red wire): 0.5 AMP. Output Power: 160 watts maximum (40 watts x 4 channels) Output Wiring: Floating-ground type designed for 4 speaker use.

  • Page 11: Cd Changer Controls

    CD CHANGER CONTROLS Built into this radio are controls to operate an optional CD changer. Please check with your Prestige/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume, tone, balance, and fader) for the CD changer operate in the same manner as they do for radio play.

  • Page 12: Cd Changer Error Codes

    disc will be continually repeated until the Disc Repeat mode is canceled by pressing the RPT button again or by activating the Scan or Shuffle Play functions. DISC/TRACK SHUFFLE PLAY (SHF) When the SHF button is pressed, the SHF indication will appear on the display panel and the tracks on the disc will be played in a random, shuffled order.

  • Page 13: Wireless Remote Control Operation

    WIRELESS REMOTE CONTROL OPERATION The wireless remote control supplied with this model is capable of operating most of the features of the unit from a remote location. Each button on the remote control functions in the same way as the referenced button on the main unit. For optimal operation of the remote control, always aim it toward the Remote Sensor the front panel of the main unit.

  • Page 14: Care And Maintenance

    MODE OWER AS/PS D.DN D.UP INFRARED REMOTE CONTROLLER 17 (FAR SIDE) CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend you keep this manual for reference on the many features found in this unit as well as how to set the clock.
  • Page 15 When the vehicle warms up during cold weather or under damp conditions, moisture may condense on the lens of the disc player. Should this occur, the player will not operate properly until the moisture has evaporated. The unit is designed with a vibration dampening CD mechanism to minimize interruption of disc play due to normal vibration in a moving vehicle.

  • Page 16: Warranty

    AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
