- Page 1 VM8022 Installation and Operation Manual Watts Peak Watts en Crête Vatios el Máximo 40W x 4...
-
Page 3: Table Of Contents
VM8022 TABLE OF CONTENTS Introduction ...1 Installation ...1 Wiring ...3 Remote Control ...4 Operation ...5 Tuner Operation ...7 Disc/MP3/WMA Playback ...8 System Setup Menu ...10 USB/SD Operation ...12 Care and Maintenance ...15 Troubleshooting ...16 Specifications ...17... - Page 4 VM8022...
-
Page 5: Introduction

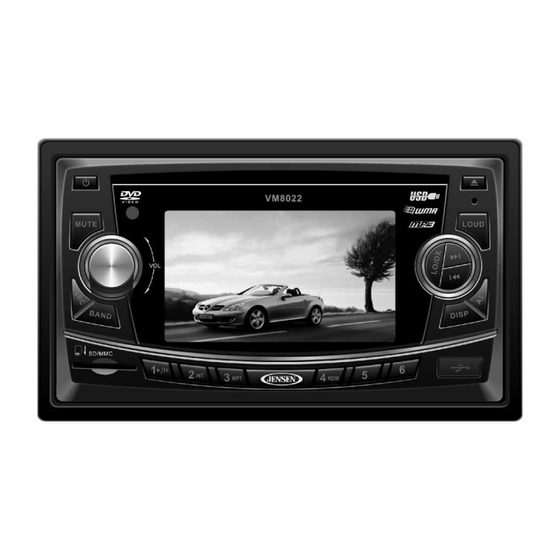

VM8022 INTRODUCTION Congratulations on your purchase of the Jensen VM8022 Mobile Multimedia Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen VM8022 installed by a reputable installation shop. INSTALLATION This unit is designed for installation in cars, trucks and vans with an existing radio opening. -
Page 6: Kit Installation
turn the unit on to confirm operation (vehicle ignition must be on). If the unit does not operate, re-check all wiring until the problem is corrected. 3. Secure the rear of the unit to the car body using the mounting bolt and rubber cushion. -
Page 7: Wiring
VM8022 WIRING NOTE: The amplifier in this radio is only designed for use with four speakers. Never combine (bridge) outputs for use with two speakers. Never ground negative speaker leads to chassis ground. Failure to wire exactly as shown may cause electrical damage to the or clean, unpainted part of chassis. -
Page 8: Remote Control
REMOTE CONTROL The remote control will allow you to control the advanced functions of the VM8022. 1. ZOOM (DVD, VCD only) 2. TITLE (DVD only) 3. Power On/Off 4. SETUP: Access DVD Setup 5. Menu Navigation 6. ENTER 7. PROG: Enter Programmed Playback mode. -
Page 9: Operation
VM8022 OPERATION Power Press the (power) button (2) to turn the unit on. Press and hold the power button again to turn the unit off. NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. -
Page 10: Clock Set
When the equalizer function is activated, the most recently selected bass/ treble levels cannot be adjusted. When the equalizer function is not active, the unit will return to the most recently selected bass and treble levels. BEEP The beep tone feature allows the selection of an audible beep tone to be heard each time the menu is accessed. -
Page 11: Tuner Operation
VM8022 TUNER OPERATION VM8022 SD/MMC Select a Band Press the BAND button (3) to change between three FM and two AM bands. Each band stores up to six preset stations. Tuning Manual Tuning Press the TUNE/TRACK >>| or |<< buttons (17) to move the radio frequency number up or down one step. -
Page 12: Disc/Mp3/Wma Playback
DISC/MP3/WMA PLAYBACK VM8022 SD/MMC Insert and Eject Disc Insert a disc, label side up, into the disc slot (18). To stop disc play and eject the disc, press the eject button (4). NOTE: The unit is designed for play of standard 5” (12 cm.) discs only. Do not attempt to use 3”... -
Page 13: Programmed Playback
VM8022 Programmed Playback 1. Press the PROG button on the remote control to access the pro- grammed playback screen: 2. Use the cursor buttons to access the fields on the “PROG” screen. 3. Use the number buttons on the remote control to enter a track number in each field. -
Page 14: System Setup Menu
SYSTEM SETUP MENU During disc play, press the SETUP button on the remote control to access the SYSTEM SETUP menu. SYSTEM LANGUAGE VIDEO VIDEO FORMAT SCREEN SAVER ASPECT RATIO PASSWORD RATING DEFAULT EXIT SETUP Use the cursor buttons to choose between SYSTEM, LANGUAGE, or VIDEO setup options. -
Page 15: Audio Language
VM8022 Table 1: System Setup Menu AUDIO LANGUAGE ENGLISH FRENCH SPANISH PORTUGUESE GERMAN SUBTITLE LANG ENGLISH FRENCH SPANISH PORTUGUESE GERMAN MENU LANG ENGLISH FRENCH SPANISH PORTUGUESE GERMAN VIDEO SETUP BRIGHTNESS 12 - 0 CONTRAST 12 - 0 +6 to -6 SATURATION 12 - 0 SHARPNESS... -
Page 16: Usb/Sd Operation
USB/SD OPERATION Notes on MP3/WMA Play MP3 and WMA (Windows Media Audio) music files are digital audio files that are compressed to allow more files on a single CD. This unit can play MP3/WMA directly from files contained on a CD-R/RW or an SD card, USB Device using the buttons on the receiver (or remote control) as described below. -
Page 17: Loading An Sd Card
VM8022 MP3 Playing Order When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order in which they were written to the media. As a result, the order in which they are expected to be played may not match the order in which they are actually played. -
Page 18: File Playback
File Playback When a disc or device (SD, USB) containing individual music, video and/or photo files is inserted, the following screen appears: Folder Name File Name Folder List Category List The category, folder or file list is displayed on screen with the name of the file/folder being played displayed on top. -
Page 19: Care And Maintenance
VM8022 CARE AND MAINTENANCE DVD Player The following guidelines will help you extend the life of your DVD player: 1. When cleaning the vehicle interior, do not get water or cleaning fluids on the unit. 2. The DVD player will not operate properly in extreme hot/cold or under damp conditions. -
Page 20: Troubleshooting
TROUBLESHOOTING Problem Cause Does not operate (dis- No power to yellow wire; no play does not light) power to red wire Fuse blown No power to unit Fuse blown No/low audio output Improper audio output connec- tion Volume set too low Speakers damaged Heavily biased volume balance Adjust the channel balance to the center Speaker wiring is in contact with... -
Page 21: Specifications
VM8022 SPECIFICATIONS CEA Power Ratings Power Output ....13 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio....70dBA below reference (reference: 1 watt, 4-ohms) Frequency Response . - Page 22 VM8022...
-
Page 23: Limited Warranty
Who is covered? The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada. This warranty is not transferable or assignable. Proof of purchase is required in the form of an original sales receipt. - Page 24 Audiovox Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensen.com © 2007 Audiovox Ver. 042007 Printed in China...
