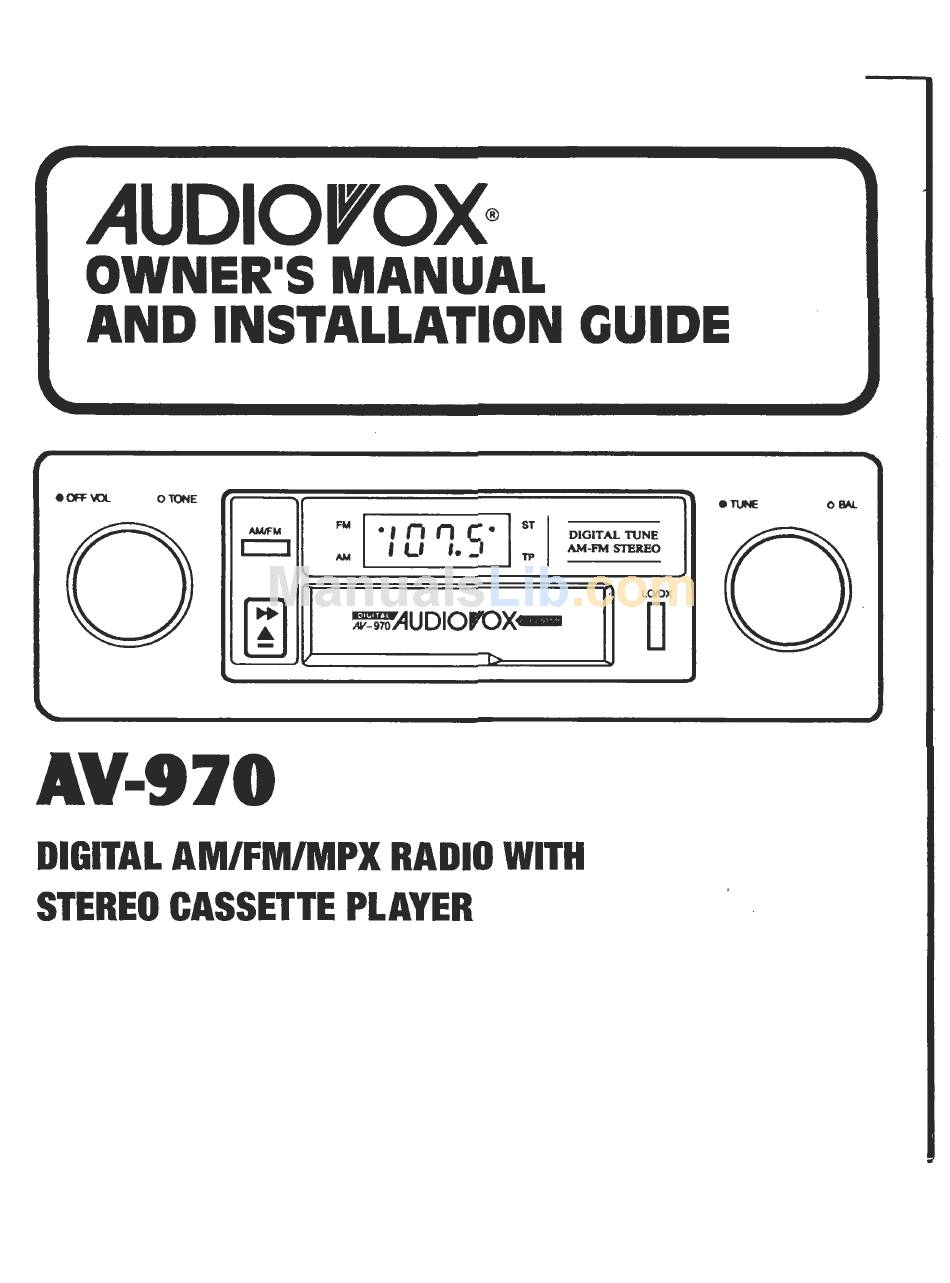

Audiovox AV-970 Owner's Manual And Installation Manual
Audiovox AV-970 Owner's Manual And Installation Manual

Audiovox AV-970 Owner's Manual And Installation Manual

Digital am/fx/mpx radio with stereo cassette player

Advertisement

Advertisement

Table of Contents
loading

Summary of Contents for Audiovox AV-970

  • Page 2: How To Use This Manual

    INDEX How To Use This Manual Kit Information Universal and Impor1 Car Installations Chevrolet -Oldsmobile-Pontiac-Bu Installations Ford-Lincoln-Mercury Installations Chrysler-Dodge-Plymouth Installations Radio Wiring Speaker Wiring- 2 Speaker Systems 4 Speaker Systems Operating Instructions Specifications Troubleshooting Care and Maintenance Warranty Toll-Free Assistance The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do, we're here to help you.
  • Page 3: Kit Information

    "HELP" line. 2. The kits shown below are Audiovox kits. Your retailer may sell kits made by other manufacturers which may also be usable to install this radio. Always check the kit application before purchasing it to make sure it will work with your vehicle.
  • Page 4: Installation

    UNIVERSAL INSTALLATION FOR VEHICLES This installation is designed for cars, trucks, vans, and boats that have an existing radio opening. It can also be used as an option on some of the vehicles listed as requiring the AX-88-SNP kit. It will not work on all vehicles, but can be used on most newer Fords and many imports.
  • Page 5 UNIVERSAL INSTALLATION This installation is designed for cars, trucks, vans, and boats that do not have an existing radio opening. cutting an opening in a surface of the vehicle, so it is important to mark and measure carefully. 1. Select III..nUng Area: A.
  • Page 6: Installations

    CHEVROLET -OLDSMOBlLE-BUICK-PONTIAC-GMC-CADILLAC 1981 OLDER ImQortant- This installation is designed for 1981 and older U.S. made GM cars, trucks, and vans. For 1981 and newer vehicles, an installation kit may be required. See Kit Listing on Page 2 of this manual or refer to the in-store application chart.
  • Page 7 CHEVROLET -OLDSMO BILE- BUICK 1982 NEWER ImRortant- This installation is designed for most 1982 and newer GM cars, trucks, and vans where an installation kit is required. See Kit Listing on Page 2 of this manual or refer to the in-store application chart. If a kit is not required, use the instructions on Page 5.
  • Page 8 FORD-LINCOLN-MERCURY INSTALLATION ImQortant- This installation is designed for 1984 and older U.S. made Ford cars, trucks, and vans. vehicles, an installation kit may be required. 1. Renlove Existing Radio: A. Remove radio knobs and shaft nuts behind the knobs. B. Locate and remove support brace at back of radio. C.
  • Page 9 FORD-LINCOLN-MERCURY ImRortant- This installation is designed installation kit is required forthese vehicles. chart. For 1991 and newer vehicles, theAX-88-SNP kit. Instructions for use oftheAS-88-SNP 1. Remove Existing Radio: A. Remove existing dashboard trim panel surrounding the radio opening. This panel is usually secured by screws and/or snap-in clips.
  • Page 10: Chrysler-Dodge-Plymouth Installations

    CHRYSLER-DODGE-PLYMOUTHINSTALLATION U.S. MADE CARS, TRUCKS, ImRortant- This radio cannot be installed in any U.S. made Chrysler, Dodge, or Plymouth vehicle without an installation kit. Refer to the Kit Listing on Page 2 for the required kit. Complete kit installation is explained in the instructions included with the kit.
  • Page 11: Radio Wiring

    RADIO WIRING REFER TO PAGE 11 OR 12 FOR SPEAKER WIRING...
  • Page 12: Speaker Wiring- 2 Speaker Systems

    SPEAKER WIRING SPEAKER SYSTEMS REFER TO PAGE 10 FOR RADIO WIRING...
  • Page 13: Speaker Systems

    SPEAKER WIRING SPEAKER SYSTEMS REFER TO PAGE 10 FOR RADIO WIRING...
  • Page 14: Tone Control

    OPERATING INSTRUCTIONS CD ON-OFF SWITCHNOLUME Turn this knob to the right to turn the unit on. Continue rotation until the desired volume level is obtained. <V LEFT/RIGHT BALANCE CONTROL Turn this knob to the left or right to obtain the desired balance between left and right speak- ers.
  • Page 15 @) MANUAL TUNING CONTROL Turn the knob either to the left or the right to select a radio station . CD ANTENNA TRIMMER It is very important to adjust the ANTENNA TRIMMER for optimum AM reception. The an- tenna trimmer is located at the back in the tape slot.
  • Page 16: Specifications

    SPECIFICATIONS Size: Operating Voltage: Output Power: Output Wiring: Output Impedance: Tuning Range: Sensitivity: Stereo Separation: Tape Frequency Response: Tape SIN Ratio: Wow & Flutter: * Specifications 7" W 2" H 5" D 178mm x 50mm 125mm 12 volts DC, negative ground 14 watts maximum ( 7 watts x 2 channels) Common-ground...
  • Page 17 PROBLEM Unit completely inoperative no lights, no sound Unit will not keep time or Radio station memory (Electronic Tuning Radios Only) Noise both radio tape Noise on radio only Poor FM reception and almost no AM reception Poor FM reception and Good AM reception No sound on one speaker (both radio and tape)
  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE The radio por1ion of your new sound system does not require any maintenance. We recommend you keep this manual for general reference of the many features found in this unit. As with any cassette player, the cassette section of this sound system does require a minimum of maintenance to keep it in good working condition.
  • Page 19: Warranty

    Applies to In-dash radios, radio/tape AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
