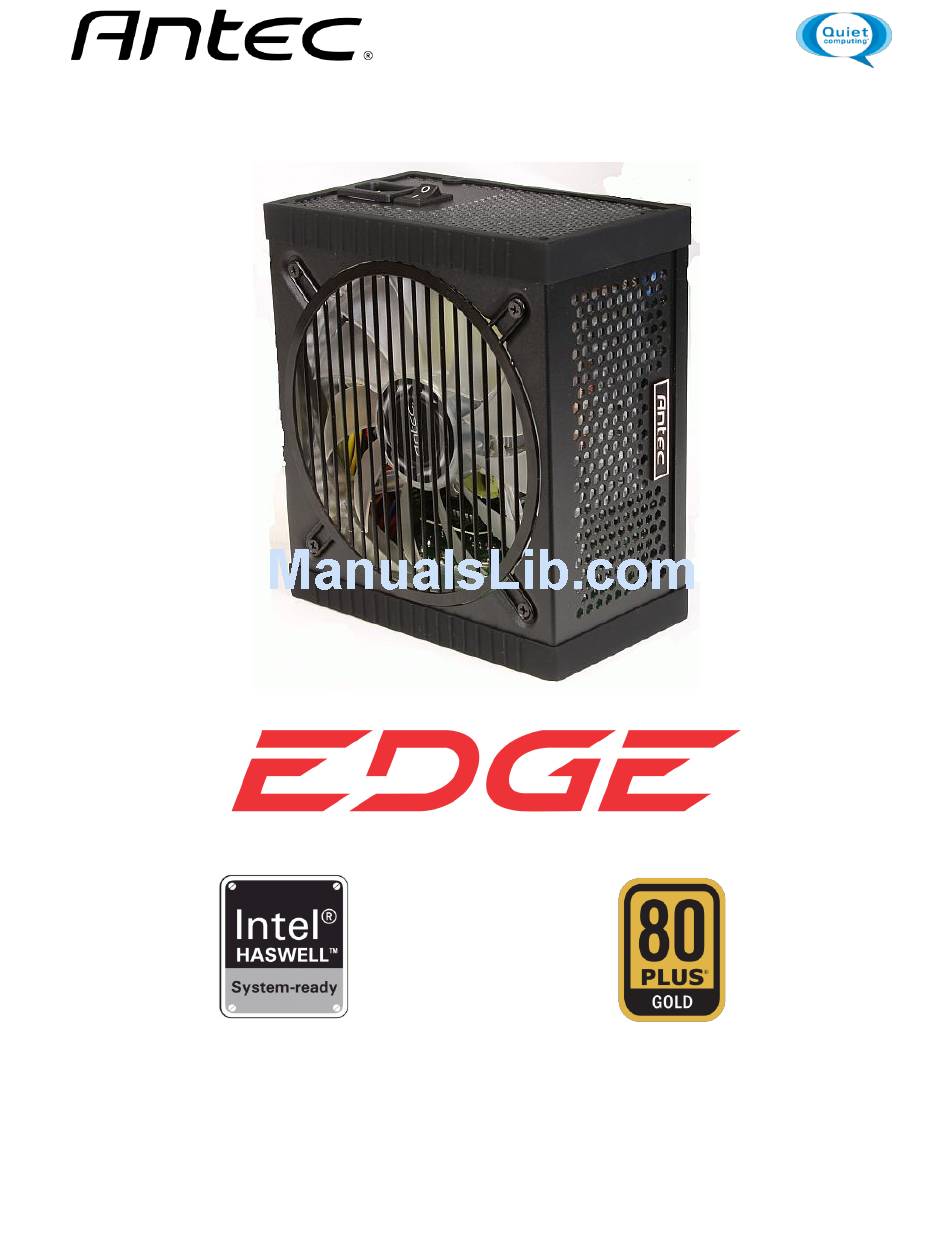

- Page 1 EDG650 POWER SUPPLY USER’S MANUAL...
- Page 2 EDG650 Antec’s EDGE series is the pinnacle of power supplies. EDGE is fully modular with a revolutionary 18+10-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS® GOLD & ErP Lot 6: 2013 certified, operating up to 92% efficient, you can reduce your electricity bill by up to 20% when compared to many other power supplies.
- Page 3 80 PLUS® CERTIFICATION 80 PLUS® certification is the most widely recognized independent standard in power supply efficiency. An 80 PLUS® certified power supply uses less energy and generates less heat to stay cooler, run quieter and last longer. The EDG650 has been 80 PLUS® GOLD certified to be at least 87% efficient at a wide range of operating loads;...
- Page 4 MODULAR CABLE JACKS Caution: Please connect only cables provided with this EDG650. Other cables may not be compatible! Please mount the PSU carefully into the case, if you are using the Anti-Noise De-Couplers. Some cases might be incompatible with them. 18+10-pin MBU connection You can connect 1 or 2 modular 8-pin cables into any of the 16-pin sockets TABLE 2...
- Page 5 INSTALLATION Please mount the PSU carefully into the case, if you are using the Anti-Noise De-Couplers. Some cases might be incompatible with them. Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed.
- Page 6 Connect the 8-pin or 4+4-pin connector for the CPU. If your motherboard has an 8-pin socket with a cover on some of the openings, we recommend that you remove the cover and use the 8-pin connector. Note: Please also refer to your motherboards manual for any special instructions. Connect the AC power cord to the power supply AC inlet.
-
Page 7: Technical Support
Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com ©2014 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
