canopy
(Bottom of the hood)
screw holes (4) for the canopy

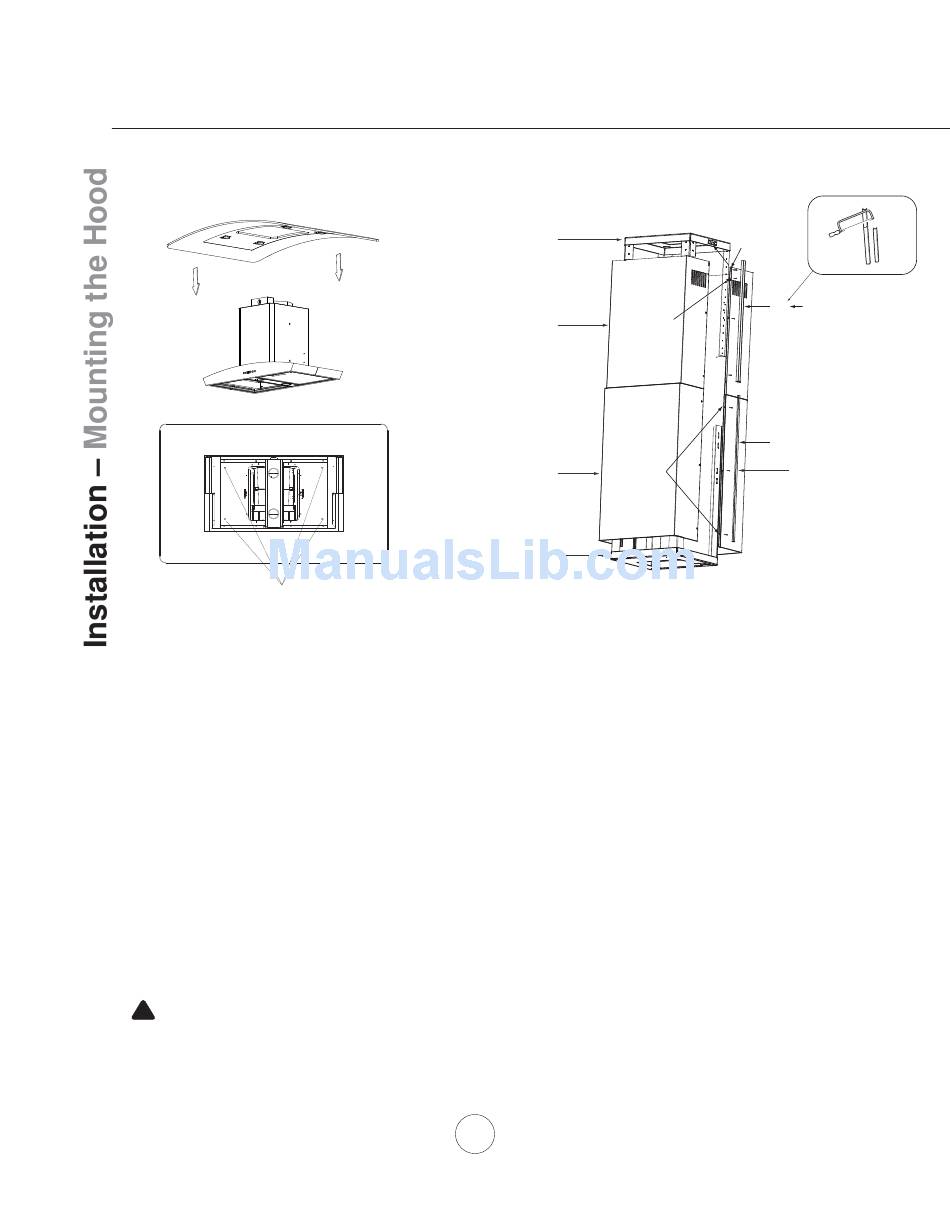

FIG. D
7. Install electrical and duct work. Seal duct work with aluminum duct tape.
8. Power up hood and check for leaks around duct tape.
9. *Assemble top duct covers (with louver holes) together using (2) M3 x 6 screws. (FIG. E, #9). Larger screw
hole openings should overlap the smaller holes.
10. Secure top duct covers to top support frame using (2) M4 x 8 screws. (FIG. E, #10). Note: If using hood in
"ducted mode" the top duct covers may be turned upside-down to hide the louver holes.
11. Assemble bottom duct covers together over top duct covers using the fi nal (4) M3 x 6 screws. Bottom duct
covers should rest on top of the hood body. (FIG. E, #11)
12. Insert the (2) thin trim pieces into left and right seams of bottom duct covers. (1 on each side)
(FIG. E, #12)
13. Insert the (2) thick trim pieces into left and right seams of top duct covers. (1 on each side)
Note: Because less of the top duct covers will be exposed, it may not be necessary to measure and
cut the thick trim pieces with a hack saw before installing them into the top duct covers.
* If using hood in recirculating mode you must install the air diverter plate before assembling the duct
covers. Turn to page 11 for instructions.
!
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
Top support frame
Top duct covers
Bottom duct covers
Bottom support frame
10
www.zephyronline.com
10
13 Thick trim piece
9
12
Thin trim piece
11
FIG. E
cut-down
