INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE

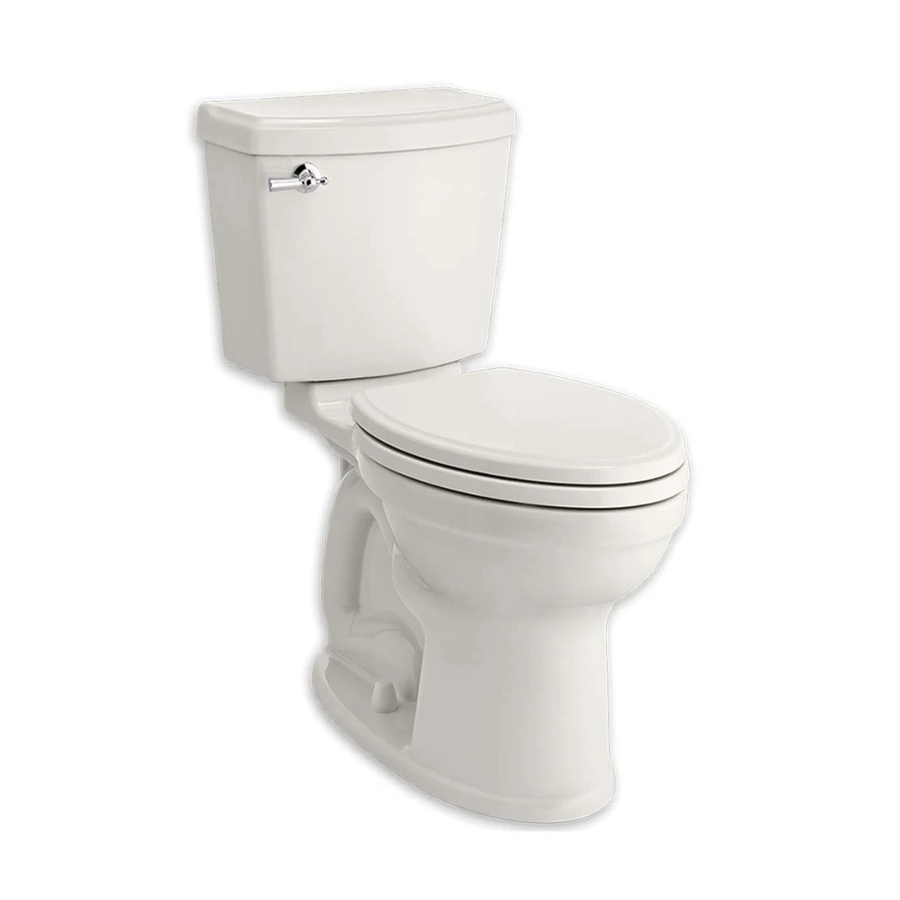

Model 2073 FloWise
Elongated High Efficiency Toilet
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
!
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
NOTE: BACK-TO-BACK INSTALLATION
Depending upon your plumbing and venting conditions, the flow
from the FloWise in a back-to-back installation may create a
vacuum on the system and draw water from the opposing bowl.
The National Standards Plumbing Code prohibits the use of a
cross fitting for drainage as throw over is possible. The code does
approve a directional "Y" style fitting with proper venting to direct
the water downward and away from the other toilet.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife
Regular Screwdriver
Hacksaw
Wax Ring/Gasket
Closet Bolts
Tape Measure
1
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2
ROUGHING-IN DIMENSIONS: Normal Height Elongated Two Piece Toilet
NOTE: DRAWINGS ARE FOR DIMENSIONAL PURPOSES ONLY.
THEY ARE NOT EXACT REPRESENTATIONS.
FINISHED WALL
762mm
(30")
19mm ± 6mm
(3/4 ± 1/4")
222mm
(8-3/4")
470mm
(18-1/2")
C/L OF SEAT POST HOLES
140mm (5-1/2" CENTERS)
16mm
(5/8")
254mm
343mm
(10")
(13-1/2")
305mm
C/L OF OUTLET
(12")
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .
© A m e r i c a n S t a n d a r d I n c . 2 0 0 7
Normal Height
™
Adjustable Wrench
Flexible Supply Tube
Carpenters Level
438mm
(17-1/4")
C/L
SUPPLY
AS
REQ'D
381mm
(15")
356mm
203mm
(14")
(8")
114mm
(4-1/2")
267mm
FINISHED
(10-1/2")
FLOOR
Recommended fitting type for back-to-back installations.
Sealant
1/2" Deep Well Nut Driver or
Deep Well Socket Wrench
3
CLOSET FLANGE
CLOSET BOLTS
794mm
(31-1/4")
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90 ° , and slide
into place 6" (152 mm) apart and parallel to wall.
A
730924-100 Rev. E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for American Standard FLOWISE 2073
Summary of Contents for American Standard FLOWISE 2073
- Page 1 Elongated High Efficiency Toilet Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
-
Page 2: Install Toilet
WAX RING SEALANT INSTALL WAX SEAL Invert toilet on floor (cushion to prevent damage), and install wax ring evenly around waste flange, with tapered end of ring facing toilet. Apply a thin bead of sealant around toilet base. BOLT CAP CLOSET BOLT WASHER INSTALL TOILET... -
Page 3: Troubleshooting Flush Valve Seal Replacement
This damage can and moving FLOAT cause leakage and property damage. CUP up or down. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners. GASKET - 3 -... -
Page 4: Repair Parts List
LIFT ARM FIRST IMPORTANT: Always clear sand and rust from system. Make sure water supply is off. Remove valve TOP by lifting arm and rotating top and arm 1/8 turn counterclockwise, pressing down slightly on cap. TROUBLESHOOTING FILL VALVE IF FILL VALVE SHUTS OFF BUT CONTINUES TO LEAK SLOWLY, repeat Step 14. IF FILL VALVE TURNS OFF AND ON DURING PERIODS OF NON-USE, it is a signal you are wasting water because: •... -
Page 5: Troubleshooting Guide
This warranty DOES NOT COVER any damage caused by the use of in-tank cleaners. American Standard's option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or installation, nor shall American Standard be responsible for any other incidental or consequential damages attributable to a product defect or to the repair or exchange of a defective product, all of which are expressly excluded from this warranty.
