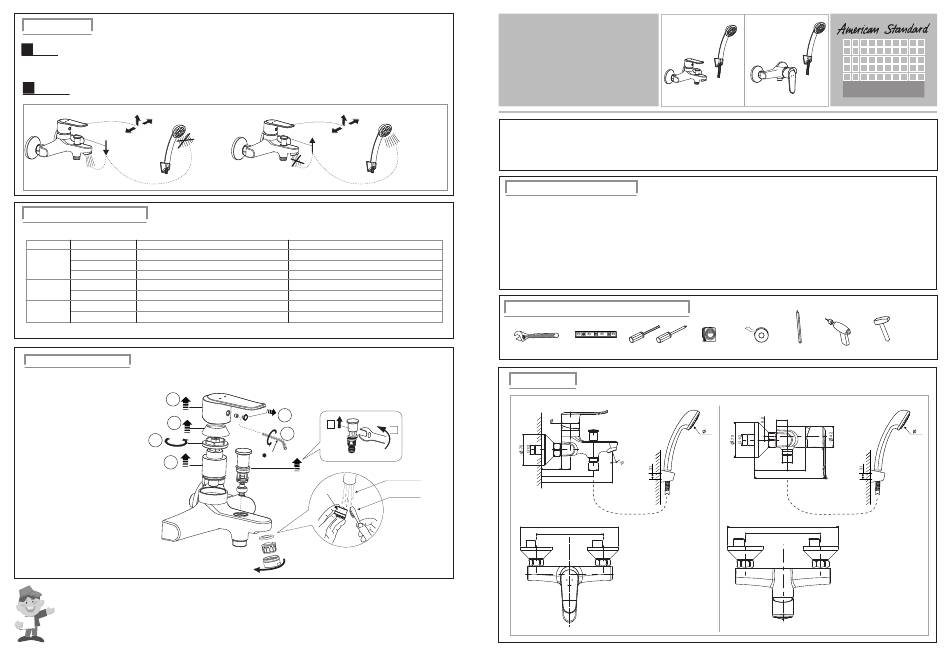

American Standard Neo Modern Installation & Operation Instructions

Test / Usage

1
Test
* Move handle down into "OFF"position. Turn on supply angle valve to check all connections for leak.
* Operate handle up and down, left and right to flush water lines thoroughly.
Usage
2
ON
Cold
Hot

Trouble Shooting Guide

Trouble Checkpoint Contents
Aerator
Check any impurities.
Poor flow rate Water supply valve Check valve position.
Check if hose is twisted.
Flexible hose
Cartridge packing Check cartridge install.
Leakage
Hose junction Check the connection.
Supply Valve
Check if the water from Supply valve is enough or not
Deviant
Supply system
Temperature Check if the supply pipe connected correct or not
Care & Maintenance
* If you want to change the parts
or clean the inner of faucet,
3
please follow the steps in the
above to remove the parts,
then proceed the next steps.
4
5
6
Attention:
Please leave the manual with the customer
after installation is finished.
ON
C o l d
Hot
Action
Remove all impurities.
Open it to full valve
Untwist the hose.
When packing is damaged, replace the cartridge.
Check the existence of packing and wind it up sufficiently
Increase water supply
Connect the hot and cold water pipe correctly
1
A
2
B
2.5mm
Clean Water
Aerator
Soft Brush
Remove all impurity in Aerator
- 4 -
Neo Modern Neo Modern
FFAS0711-601500BF0
Single Lever Exposed B&S Faucet
FFAS0712-701500BF0
Single Lever Exposed Shower Only
FFAS0711-601500BF0
Thank you for selecting American-Standard - the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin.
* American Standard always keep raising and improving the product design and performance, and reserve the right to modify
the dimension and spefication. At this case, we will not inform you separately.
* This installation instruction sheet is for your reference only, the dimension and specification is subject to the actual products.
All instruction procedures must comply in strict accordance with applicable local plumbing and building codes

Pre-Installation Checks

*Remove all impurity in pipes before beginning to avoid clogging. Connect faucet pipes correctly.
is connected to the right side and the hot water hose to the left.
* Check installation distances in the Dimension diagram to ensure correct installation.

Conditions for use

* Recommended water pressure condition: 0.1~0.5Mpa.
* Environment Temperature:1~55℃
* Steam is not allowed to use.
* The cold and hot water pipes must not be reserved.
When in the process of installation, grab the whole body. Do not grab handle only.

Recommended Tools and Materials

Level Screwdriver
Adjustable Wrench

Dimension

FFAS0711-601500BF0
42
44 21 G1/2
117
159
220
135~165
Rev. A1
Installation &
Operation Instructions
FFAS0712-701500BF0
Make sure the cold water hose
Tape Measure
windtight swathe Pencil Electric drill
FFAS0712-701500BF0
21
80
G1/2
64.7 36
140.5
220
135~165
- 1 -
Sinker
80
