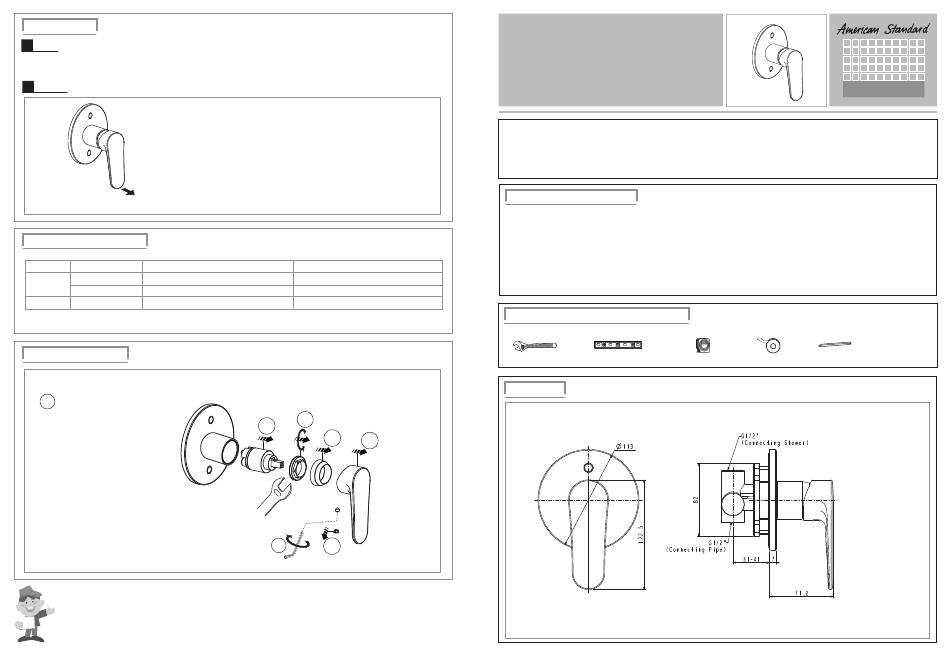

American Standard FFASB236-709500BF0 Installation & Operation Instructions

Test / Usage
Test
1
* Turn handle to "OFF"position. Open water supply valve to check all connections for leakage;
* Turn handle to"ON"position. Check the water flow .
Usage
2
ON
Trouble Shooting Guide
Contents
Trouble Checkpoint
Spout or Shower
Check any impurities.
Poor flow rate Water Supply valve
Check water supply valve open position.
Cartridge Check cartridge packing.
Leakage
Care & Maintenance
* If you want to do the maintenance for the faucet, please follow the below process.
1
1. Close the Water Supply System
Attention:
Please Leave the manual with the customer
after installation is finished.
Action
Remove all impurities.
Open water supply valve to increase flowrate
When packing is damaged, replace the cartridge.
6
7
5
4
3 2
- 4 -
FFASB236-709500BF0
Codie Concealed Mono Shower Mixing Valve
Thank you for selecting American-Standard - the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin.
* American Standard always keep raising and improving the product design and performance, and reserve the right to modify
the dimension and spefication. At this case, we will not inform you separately.
* This installation instruction sheet is for your reference only, the dimension and specification is subject to the actual products.
All instruction procedures must comply in strict accordance with applicable local plumbing and building codes
Pre-Installation Checks
*Remove all impurity in pipes in order to avoid clogging before installation.
*Check installation dimensions in order to install it correctly.
Conditions for usage
* Recommended water pressure: 0.1~0.5Mpa.
* Environment Temperature:1~55℃
* Steam is not allowed.
During installation of the faucet, Please grab the body. Do not grab handle only.
Recommended Tools and Materials
Adjustable Wrench Level
Dimension
Rev. A0
Installation &
Operation Instructions
Tape Measure Windtight Swathe Pencil
- 1 -
Unit: mm
