American Standard Champion-4 Installation, Care And Maintenance Instructions

INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
®
Champion 4 2-piece Toilets
Models - 2002, 2018, 2023, 2414, 2585,
2792, 2586, 2793, 3186, 3404
™
Doral Classic
Models - 2058, 2074, 2076, 2473
™
Doral Classic
Models - 2367, 2368, 2369, 2443
™
Oakmont Champion
Models - 2625, 2627, 2738
®
Portsmouth Champion
Models - 2733, 2735
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this
product is installed properly, please read these instructions carefully before you begin. (Certain installations
may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.

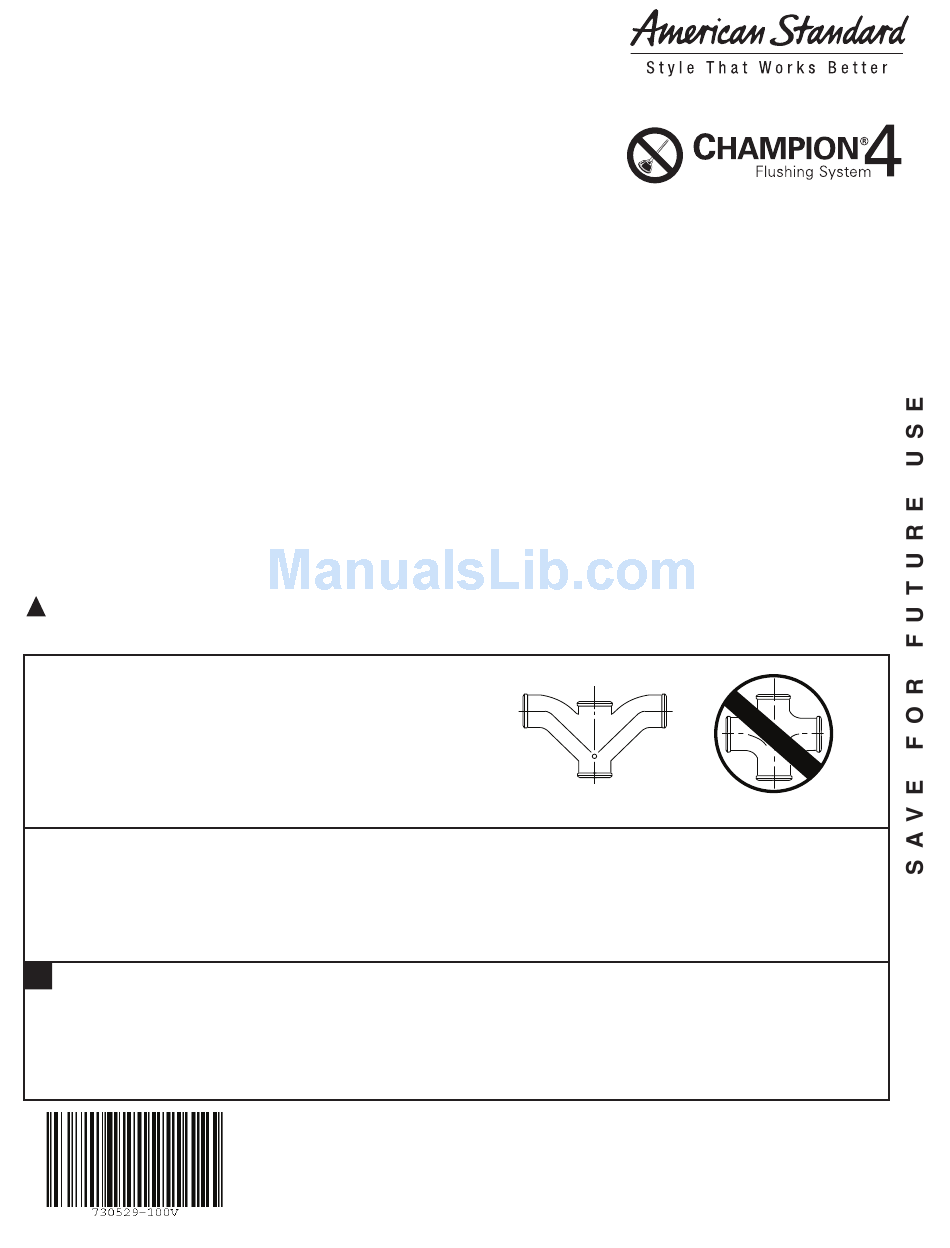

NOTE: BACK-TO-BACK INSTALLATION
Depending upon your plumbing and venting conditions, the flow from
the Champion in a back-to-back installation may create a vacuum on
the system and draw water from the opposing bowl. The National
Standards Plumbing Code prohibits the use of a cross fitting for
drainage as throw over is possible. The code does approve a
directional "Y" style fitting with proper venting to direct the water
downward and away from the other toilet.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket
Closet Bolts Tape Measure
1
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
®
Champion 4 2-piece Toilets
®
Champion 4 2-piece Toilets
®
4 2-piece Toilets
®
4 2-piece Toilets
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 11
Recommended fitting type for back-to-back installations.
Adjustable Wrench
Flexible Supply Tube
Carpenters Level
Sealant
1/2" Deep Well Nut Driver or
Deep Well Socket Wrench
730529-100 Rev. V
