Related Manuals for American Standard FB104
Summary of Contents for American Standard FB104

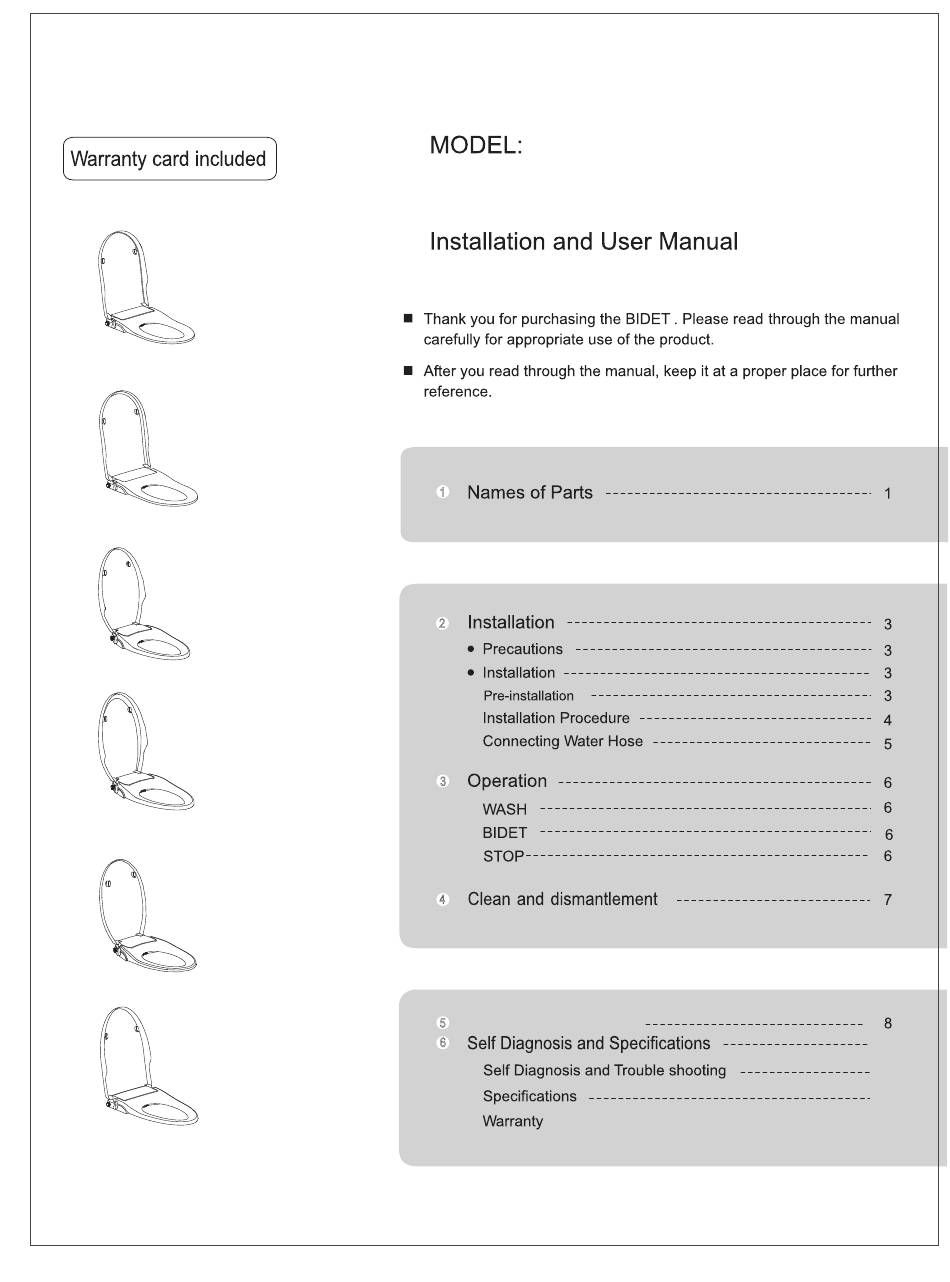

- Page 1 FB104/FB105/FB106 FB107/FB108/FB109 FB104 FB105 FB106 FB107 FB108 Product Maintenance FB109...
- Page 2 1.Main body 2.Installation template Water inlet on the left Dismantlement button Water inlet on the right 3.Fixing Components Seat cover Nut(2) Expansive nuts(2) Connecting bolts(2) Water tanks Alert sticker Sliding plates(2) Rubber gasket(2) Adaptable panel Lever Seat 5.T-shaped connector 6.Water hose 7.Installation and User Manual Water supply hose Bidet nozzle...
- Page 3 Installation Procedure First installation method (recommended): Please make sure you read the instructions carefully and install it properly. 1.Dismantle the old seat and seat lid. 2.Install expansive nuts Loose the hinge and remove the old seat and seat lid. As figure, insert expansive nuts in the holes of the Cautions ceramic.
- Page 4 Connecting water hose 1. Close the water valve and detach water pipe from the water tank. Connect the t-shaped connector to the water tank. Make sure that rubber packing is WASH inserted in between. Turn the lever clockwise from the horizontal position. Nozzle for WASH moves forward and start the function.
-
Page 5: Product Maintenance
Product maintenance 2.Nozzle replacement 1.Clean the outside parts of the product. 2.Clean the nozzle 1. Lever replacement As per figure A,Remove the old lever along the As per figure A, Pull out the tube and do not release Use a smooth sponge/cloth with diluted kitchen Pull out the nozzle softly and use smooth axis direction. -
Page 6: Specifications
Backflow Prevention Check valve, vacuum breaker Water Supply Direct from water pipes Static pressure:0.07- 0.8 MPa,Dynamic pressure:above 0.03MPa Water Pressure Range FB104、FB105、FB109 370X500X60mm Dimensions FB106、FB107 370X500X62mm FB108 370X480X62mm FB107: 2.08 FB104: 2.23 FB105: 2.22 FB108: 2.00 Weight FB106: 2.09 FB109: 2.16...
