FERN
™
Monoblock Bathroom Sink Faucet
with Conventional Pop-up Drain
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended tools
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
1

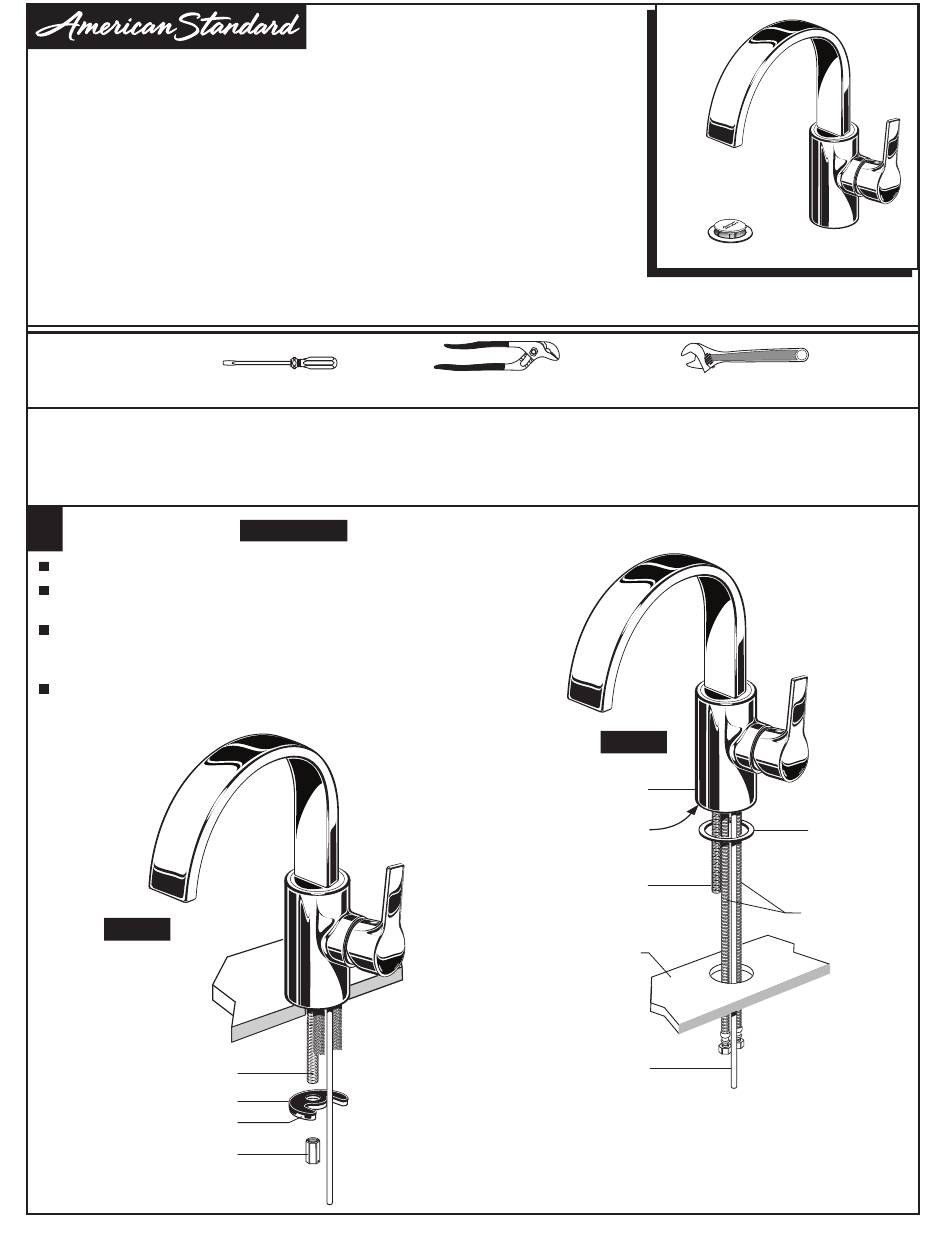

INSTALL FAUCET
Seat SEAL (1) into under side of FAUCET BASE (2). Fig. A.
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and LIFT ROD (8)
through the mounting hole of lavatory or mounting surface. Fig. A.
From below, push GASKET (7) with RETAINING WASHER (5) onto
MOUNTING STUD (4). Install MOUNTING NUT (6)
onto MOUNTING STUD (4). Fig. B.
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
Fig. B.
Screwdriver
Turn off hot and cold water
CAUTION
supplies before beginning.
4
7
5
6
Installation
Instructions
2003.101
Channel Locks
Fig. A.
GROOVE
(FAUCET
BASE)
MOUNTING SURFACE
Certified to comply with ANSI A112.18.1
M965263 REV. 1.9 (8/17)
Adjustable Wrench
2
1
4
3
8
Advertisement
Related Manuals for American Standard FERN 2003.101
Summary of Contents for American Standard FERN 2003.101
- Page 1 Installation Instructions FERN ™ 2003.101 Monoblock Bathroom Sink Faucet with Conventional Pop-up Drain Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. Certified to comply with ANSI A112.18.1 M965263 REV.
- Page 2 INSTALL POP-UP DRAIN Install FOAM GASKET (4) onto BODY (2). Install FLANGE (1) onto BODY (2). Tighten LOCK NUT (3) with channel locks. Do not over tighten. ASSEMBLE PIVOT ROD TO POP-UP DRAIN Unthread PIVOT NUT (1) from drain body. Remove CLIP (2) from pivot rod (3).
- Page 3 SERVICE Clogged CARTRIDGE outlets or inlets may cause reduced flow. To clean, first turn off water supply then: Pull out INDEX BUTTON (1). Loosen HANDLE SCREW (2) with 2.5mm Hex Wrench, then pull HANDLE (3) off. Unthread ESCUTCHEON CAP (4). Unthread the CARTRIDGE NUT (5). Remove CARTRIDGE (6).
- Page 4 FERN ™ Monoblock Bathroom Sink Faucet with Conventional Pop-up Drain MODEL NUMBER 2003.101 M964229-0020A SPOUT KIT M970019-0070A AERATOR KIT M962648-0070A SPOUT BUSHING & O-RING KIT M964241-0070A FLOW CONTROL M964406-0070A CARTRIDGE M964185-0020A POP-UP ROD M964226-0020A CARTRIDGE COVER M964316-0020A HANDLE KIT M964224-0070A RETAINER KIT M964332-0020A HANDLE KIT...
