12

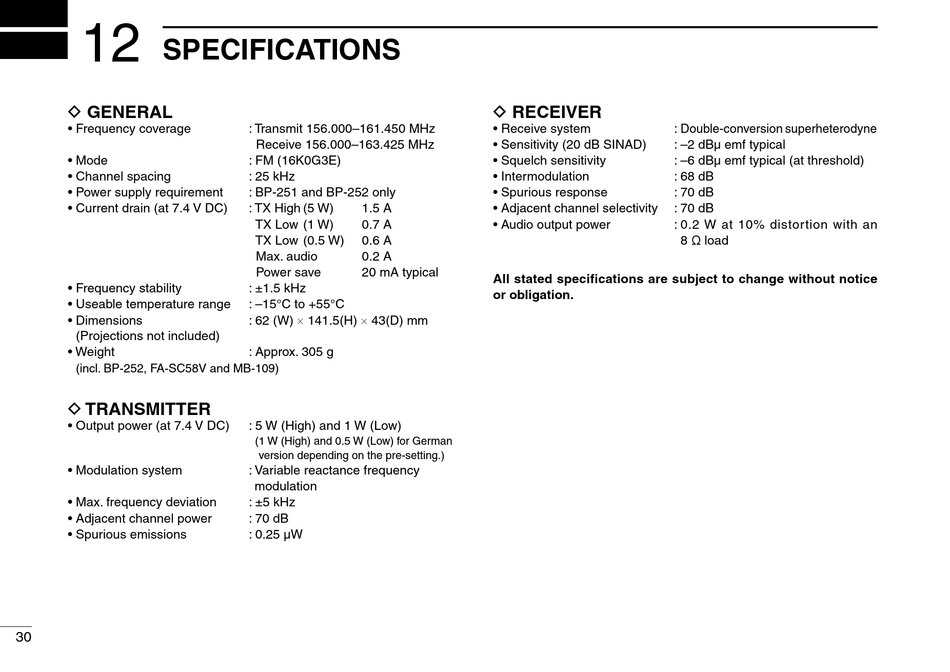

SPECIFICATIONS

D GENERAL
• Frequency coverage
• Mode
• Channel spacing
• Power supply requirement
• Current drain (at 7.4 V DC)
• Frequency stability
• Useable temperature range
• Dimensions
(Projections not included)
• Weight
(incl. BP-252, FA-SC58V and MB-109)
D TRANSMITTER
• Output power (at 7.4 V DC)
• Modulation system
• Max. frequency deviation
• Adjacent channel power
• Spurious emissions
30
: Transmit 156.000–161.450 MHz
Receive 156.000–163.425 MHz
: FM (16K0G3E)
: 25 kHz
: BP-251 and BP-252 only
: TX High (5 W) 1.5 A
TX Low (1 W) 0.7 A
TX Low (0.5 W) 0.6 A
Max. audio 0.2 A
Power save 20 mA typical
: ±1.5 kHz
: –15°C to +55°C
: 62 (W) × 141.5(H) × 43(D) mm
: Approx. 305 g
: 5 W (High) and 1 W (Low)
( 1 W (High) and 0.5 W (Low) for German
version depending on the pre-setting.)
: Variable reactance frequency
modulation
: ±5 kHz
: 70 dB
: 0.25 µW
D RECEIVER
• Receive system
• Sensitivity (20 dB SINAD)
• Squelch sensitivity
• Intermodulation
• Spurious response
• Adjacent channel selectivity
• Audio output power
All stated specifications are subject to change without notice
or obligation�
: Double-conversion superheterodyne
: –2 dBµ emf typical
: –6 dBµ emf typical (at threshold)
: 68 dB
: 70 dB
: 70 dB
: 0.2 W at 10% distortion with an
8 Ω load
