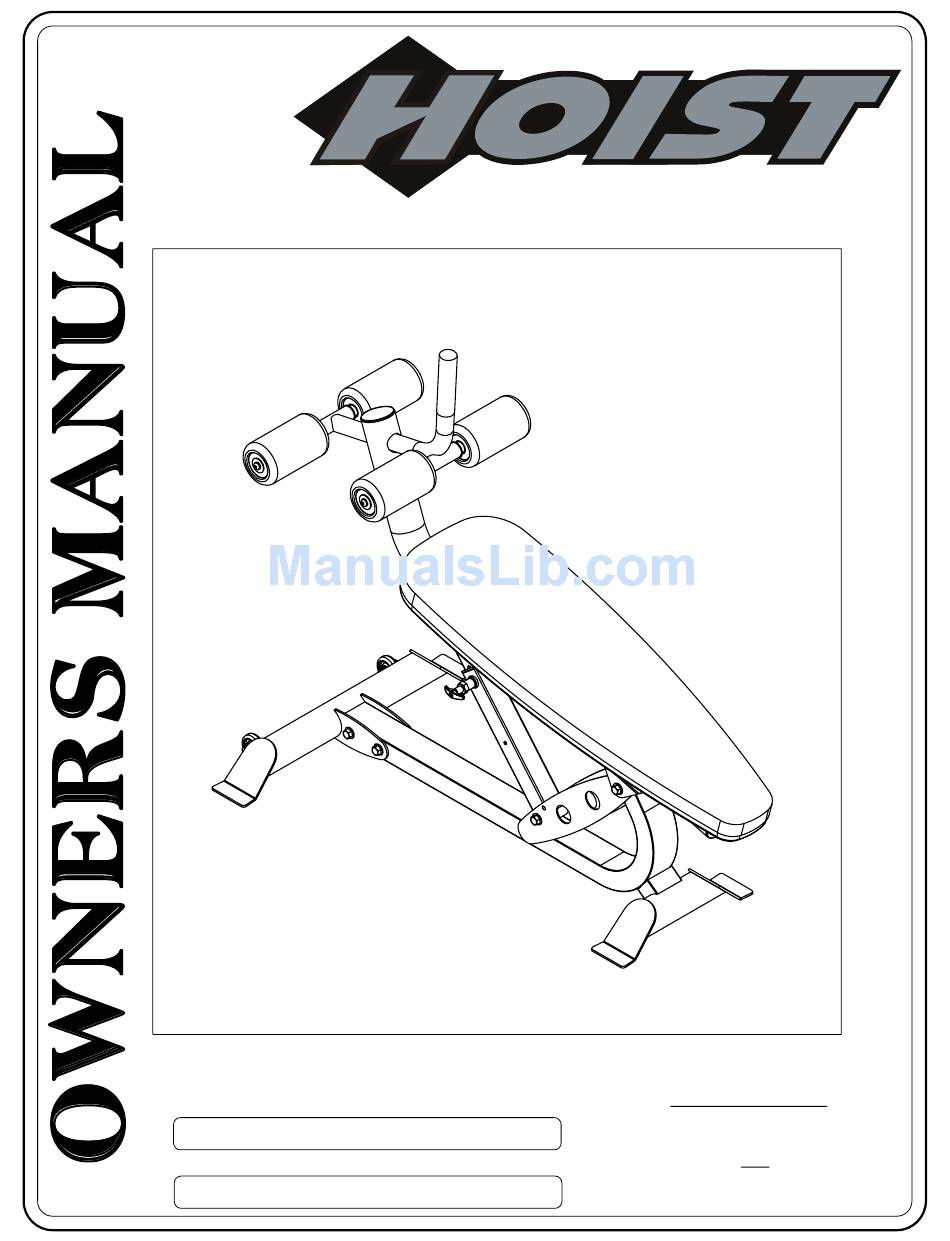

HF4264
ADJUSTABLE AB BENCH
Note: Both Serial Number and Model Number are Required when Ordering Parts
Customer Service
RECORD SERIAL NUMBER HERE
(800) 548-5438
(858) 578-7676
Fax
CATALOG NUMBER
(858) 578-9558
1205 - 002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF4264 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hoist Fitness HF4264

  • Page 1 HF4264 ADJUSTABLE AB BENCH Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676 CATALOG NUMBER (858) 578-9558 1205 - 002...
  • Page 2: Table Of Contents

    OWNERS MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............HF4264 ASSEMBLY PAGE 01...
  • Page 3: Instructions

    Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Socket Wrench 1/2", 9/16" and 3/4" Sockets Crescent Wrench Rubber Mallet Tape Measure Level Allen Wrench Set PAGE 02 HF4264 ASSEMBLY...
  • Page 4 OWNERS MANUAL HF4264 ASSEMBLY PAGE 03...
  • Page 5: Frame Assembly

    OWNERS MANUAL FRAME ASSEMBLY PAGE 04 HF4264 ASSEMBLY...
  • Page 6 3/8" X 21mm SAE FLAT WASHER (WZ) 013-0102003 1/2" X 27mm SAE FLAT WASHER (WZ) 011-0407020 3/8"-16UNC X 1.75" HHB (WZ) 011-0101070 1/2"-13UNC X 4.00" HHB (WZ) 012-0104008 3/8"-16UNC THIN NYLOCK NUT (WZ) 012-0304011 1/2"-13UNC THIN NYLOCK NUT (WZ) HF4264 ASSEMBLY PAGE 05...
  • Page 7 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLTS (27) THEN LOOSEN NUT JUST ENOUGH FOR (15)'S TO SPIN FREELY. - WRENCH TIGHTEN ALL OTHER BOLTS PAGE 06 HF4264 ASSEMBLY...
  • Page 8 BASE ASSEMBLY 026-01X2450 INNER ADJUSTER TUBE ASSEMBLY 026-01X2451 OUTER ADJUSTER TUBE ASSEMBLY 026-01M0978 1.00" X 2.97" LG. 013-0102003 1/2" X 27mm SAE FLAT WASHER (WZ) 011-0101070 1/2"-13UNC X 4.00" HHB (WZ) 012-0304011 1/2"-13UNC THIN NYLOCK NUT (WZ) HF4264 ASSEMBLY PAGE 07...
  • Page 9 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLT. PAGE 08 HF4264 ASSEMBLY...
  • Page 10 026-01M0975 1.00" X 3.97" LG. 026-01M0978 1.00" X 2.97" LG. 013-0102003 1/2" X 27mm SAE FLAT WASHER (WZ) 011-0101070 1/2"-13UNC X 4.00" HHB (WZ) 011-0407024 1/2"-13UNC X 5.00" HHB (WZ) 012-0304011 1/2"-13UNC THIN NYLOCK NUT (WZ) HF4264 ASSEMBLY PAGE 09...
  • Page 11 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLTS. PAGE 10 HF4264 ASSEMBLY...
  • Page 12 OWNERS MANUAL FRAME ASSEMBLY STEP 4 ITEM NO. PART NUMBER DESCRIPTION 026-01X2468 MAIN FRAME ASSEMBLY 022-01PD2048-A UPHOLSTERY W/ACX BACKING 013-0302008 5/16" USS FLAT WASHER (WZ) 011-0107011 5/16"-18UNC X 1.25" HHB (WZ) HF4264 ASSEMBLY PAGE 11...
  • Page 13 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLTS. PAGE 12 HF4264 ASSEMBLY...
  • Page 14 17.69" LG. ROLLER BAR ASSEMBLY 026-01X2468 MAIN FRAME ASSEMBLY 014-0011001 NYLINER BUSHING 022-01PDR008 ROLLER PAD 4.00" X 7.00" LG. 026-01PL0151 PLASTIC WASHER 2.50" 013-0102020 3/8" SPLIT LOCK WASHER (WZ) 013-0303007 3/8" FENDER WASHER (WZ) 011-0101026 3/8"-16UNC X 1.00" BHCS (WZ) HF4264 ASSEMBLY PAGE 13...
  • Page 15 OWNERS MANUAL NOTE: - WRENCH TIGHTEN SCREWS. *IMPORTANT* NOW THAT THE HF4264 MACHINE IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. PAGE 14 HF4264 ASSEMBLY...
  • Page 16: Pre-Assembly

    BUSHING: OILITE FLANGED 1.00" ID X 1.38" OD X .75" LG. 016-0201004 1.50" X 1.50" END CAP (BLACK) 016-0201030 1.50" END CAP .06" WALL (BLACK) 016-0201041 3.00" END CAP .06" WALL (BLACK) 019-0002003 1.50" X 6.00" LG. CLOSED END FOAM GRIP 026-01PL0125 E-Z GLIDE PLASTIC SLEEVE HF4264 ASSEMBLY PAGE 15...
  • Page 17 OWNERS MANUAL HF4264 ASSEMBLY PAGE 16...
  • Page 18: Decal Placement

    021-0003221 "HOIST" DECAL 2.50" X 9.13" 021-0003135 DECAL WARNING 1.50" X 6.69" 021-0003113 DECAL PINCH POINT 1.63" X 3.25" (VERTICAL) 021-0003008 DECAL COMMERCIAL MAINTENANCE 1.50" X 6.69" SERIAL # DECAL DECAL SERIAL # 1.63" X 2.63" PAGE 17 HF4264 ASSEMBLY...
  • Page 19: Decal Reference

    OWNERS MANUAL DECAL PLACEMENT 021-0003222 SERIAL # DECAL 021-0003113 021-0003135 021-0003008 021-0003221 HF4264 ASSEMBLY PAGE 18...
  • Page 20: Part List

    1/2" X 27mm SAE FLAT WASHER (WZ) 011-0107011 5/16"-18UNC X 1.25" HHB (WZ) 011-0407020 3/8"-16UNC X 1.75" HHB (WZ) 011-0101026 3/8"-16UNC X 1.00" BHCS (WZ) 011-0101070 1/2"-13UNC X 4.00" HHB (WZ) 011-0407024 1/2"-13UNC X 5.00" HHB (WZ) HF4264 ASSEMBLY PAGE 19...
  • Page 21 021-0003221 DECAL HOIST 2.50" X 9.13" 021-0003135 DECAL WARNING 1.50" X 6.69" 021-0003113 DECAL PINCH POINT 1.63" X 3.25" (VERTICAL) 021-0003008 DECAL COMMERCIAL MAINTENANCE 1.50" X 6.69" SERIAL # DECAL DECAL SERIAL # 1.63" X 2.63" HF4264 ASSEMBLY PAGE 20...
  • Page 22 OWNERS MANUAL PAGE 21 HF4264 ASSEMBLY...
  • Page 23: Abbreviations

    OWNERS MANUAL ABBREVIATIONS BZ = Black Zinc WZ = White Zinc FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw HHB = Hex Head Bolt HF4264 ASSEMBLY PAGE 22...
  • Page 24: Bolt Sizing Chart

    4 1/2" 5 1/2" 1" 2" 3" 4" 5" 0" 1 3/4" 2 3/4" 3 3/4" 1/2" SHOULDER BOLT 1 1/4" 2 1/4" 3 1/4" 1 1/2" 2 1/2" 3 1/2" 1" 2" 3" 4" 0" PAGE 23 HF4264 ASSEMBLY...
  • Page 25 1" 2" 3" 0" 3/8" SOCKET 3/8" BUTTON CAP SCREW HEAD CAP SCREW 3/4" 3/4" 1" 0" 0" 1/2" FLATHEAD 1/4" HEX SOCKET CAP SCREW BOLT 3/4" 3/4" 1 1/4" 1 1/2" 1" 0" 1" 0" PAGE 24 HF4264 ASSEMBLY...
  • Page 26: Washer Sizing Chart

    CURVED WASHER LOCK WASHER LOCK WASHER LOCK WASHER SPACER 026-01M0238 016-0009003 013-0003002 2" ALUMINUM 1" SHIM WASHER 3/8" FENDER WASHER FLATHEAD CAP 013-0003004 026-01PL151 1 1/16" PLASTIC 1 1/16" FENDER WASHER FENDER WASHER 014-0018002 1" LONG SPACER PAGE 25 HF4264 ASSEMBLY...
  • Page 27 026-01M0762 026-01M0768 .44" LONG HEAVY 1 1/2" LONG HEAVY 1 1/4" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0239 026-01M0240 1 5/8" ALUMINUM 1 3/8" ALUMINUM FLATHEAD CAP FLATHEAD CAP 026-01M0600 .625" LONG FLANGED SPACER PAGE 26 HF4264 ASSEMBLY...
  • Page 28: Maintenance Schedule

    Repack with Grease; 6 MONTHS YEARLY Linear Bearings Replace; Cables, Belts and Connecting Parts YEARLY 3 YEARS Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. PAGE 27 HF4264 ASSEMBLY...
  • Page 29: General Maintenance Information

    OWNERS MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately.
  • Page 30 (lithium, super lube, etc.) into the inside of the bearing. Using your finger, press the grease into the ball-bearings and their tracks. repeat until the ball-bearing tracks are full of grease. Insert the shaft back into the bearing and wipe off excess grease. PLEASE KEEP THIS FOR YOUR RECORDS HF4264 ASSEMBLY PAGE 29...
  • Page 31: Weight Training Tips

    To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training. Now that you have your HF4264 HOIST® Fitness System, it is only natural that you want to get started immediately. First, determine a set of realistic goals and objectives for yourself.
  • Page 32: Exercise Log

    OWNERS MANUAL PAGE 31 HF4264 ASSEMBLY...
  • Page 33: Limited Warranty

    Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
