Informazioni tecniche

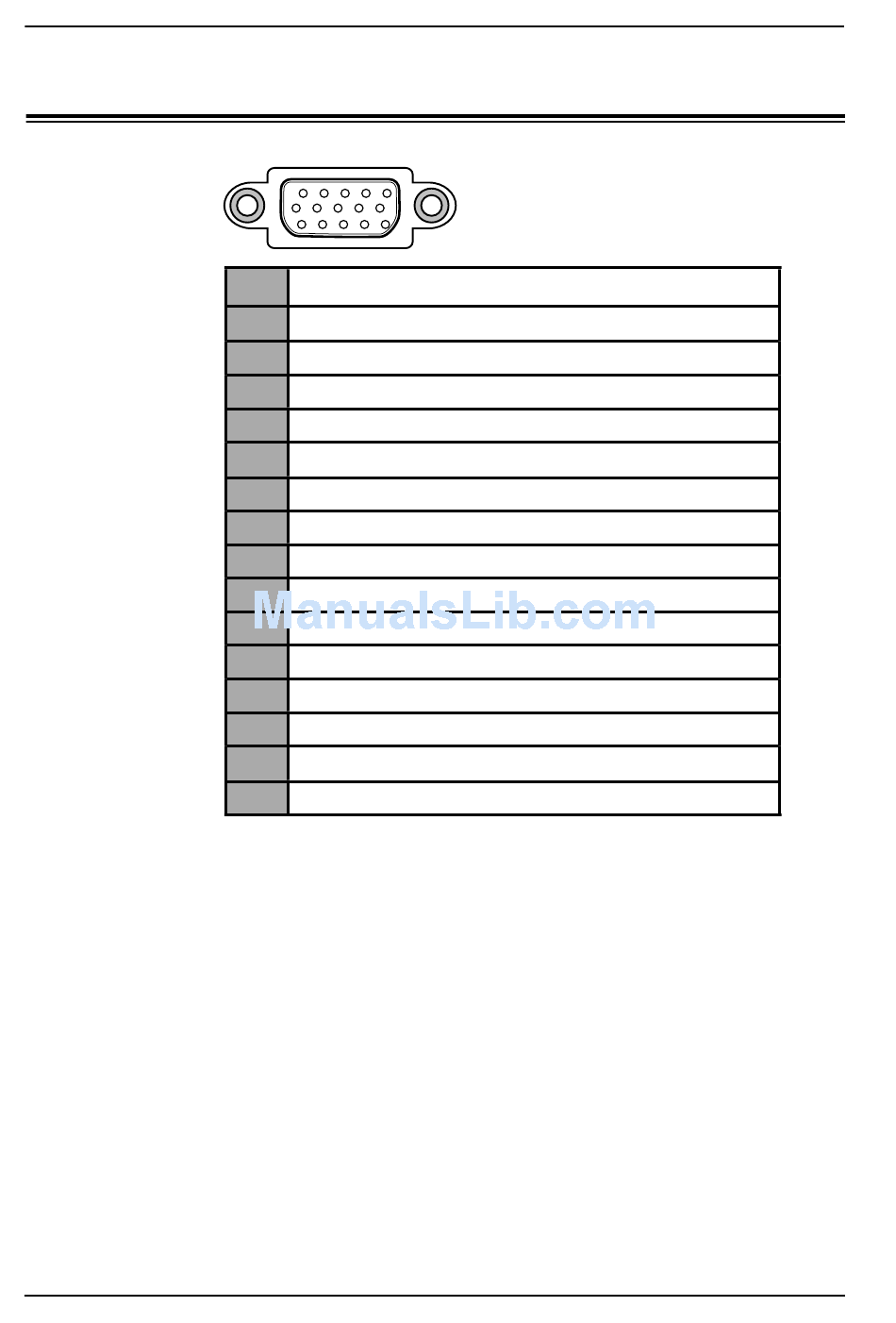

Assegnazione del PIN del connettore D-SUB

26

1

5

6

10

11

1

5

PIN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

DESCRIZIONE

Rosso

Verde

Blu

Terra

Auto test

Terra rosso

Terra verde

Terra blu

5 VDC

Terra

Terra

SDA (FOR DDC)

Sincr. O

Sincr. V

SCL (FOR DDC)
