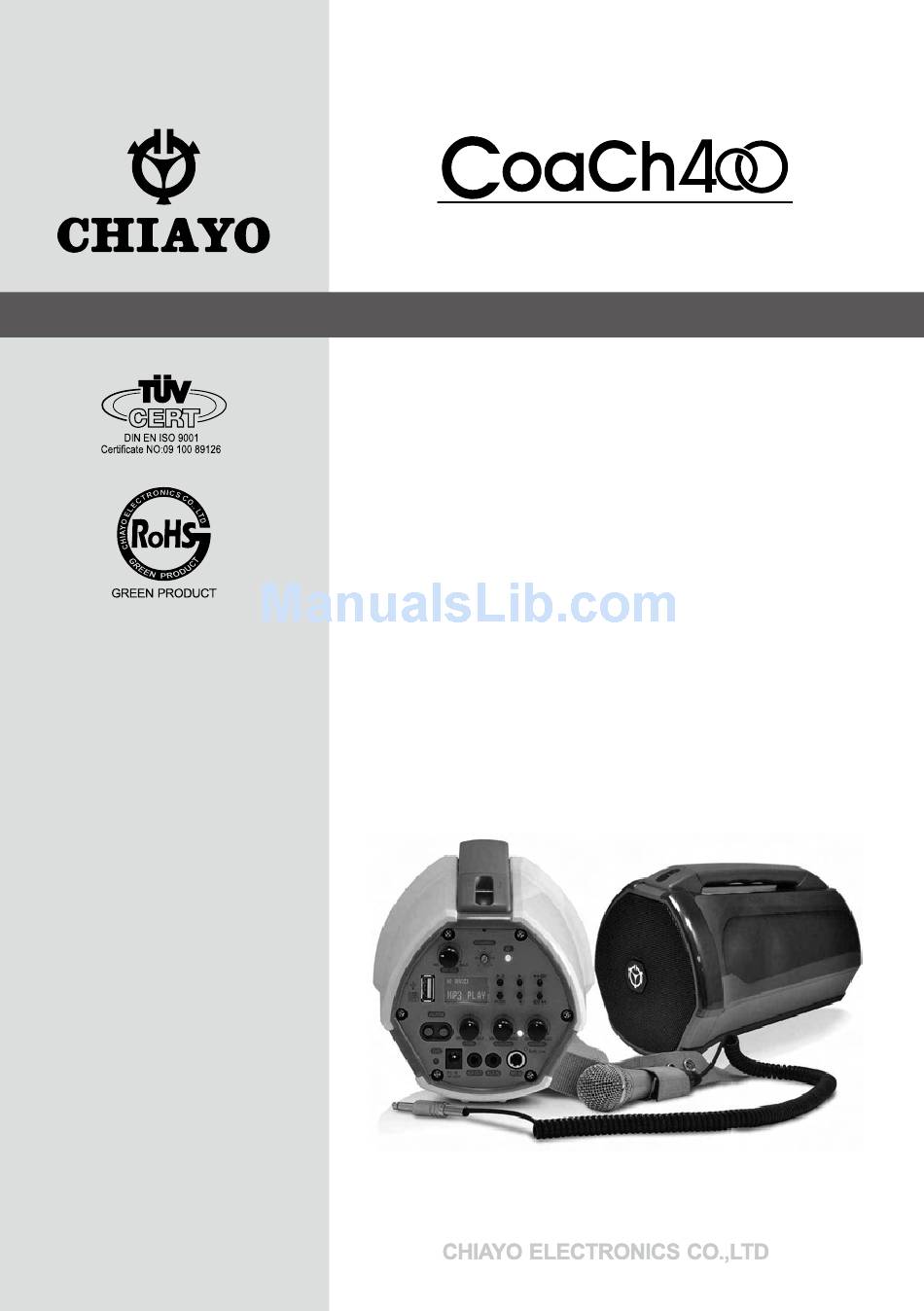

- Page 1 Personal Wireless Portable Sound System Operation Manual...
- Page 2 ◎ Suitable for outdoor/indoor applications such as lectures, trade fairs, tours and election events etc. Coach 400 can be equipped with 1 wireless receiver module. This receiver module can be either VHF or UHF. The VHF module is a fixed crystal single frequency type whereas the UHF module is a PLL synthesized type with 16 preset frequencies (identified by external 16 channel rotary switch(s)) or fixed crystal single frequency.
- Page 3 Coach 400 Rear control panel ● Parts and function 14 15 16 1. Power and volume control of wireless microphone 2. Channel selector 3. RF signal indicator 4. USB port 5. LCD display 6. Play ／ Pause 7. Skip forward 8.
- Page 4 ● Recharge its inbuilt Lithium battery before first use After unpacking the unit for the first time, please charge the unit for about 4~5 hours before any operation. This is absolutely necessary as the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to shipment.
- Page 5 UHF handheld microphone SQ-1016 ● Parts and functions 1. Microphone module and ballscreen 2. Power/Battery low indicator 3. Power switch 4. Channel selector 5. Battery cover 6. charging port ● Battery installation SQ-1016 microphone requires 2 AA-size batteries to operate. Please insert the batteries according to the correct polarity.
- Page 6 VHF handheld microphone Q-1005 ● Parts and functions 1. Microphone module and ballscreen 2. Power/Battery low indicator 3. Power switch 4. Battery cover ● Battery installation Q-1005 microphone requires 2 AA-size batteries to operate. Please insert the battery according to the correct polarity. Many batteries are known to have leakage problem of conductive and corrosive liquid.
- Page 7 UHF beltpack transmitter M-815 VHF beltpack transmitter M-1005 ● Parts and functions 1. Antenna 2. Power/Battery low indicator 3. Power switch 4. Mini XLR connector 5. Release buttons of battery compartment 9 10 6. Battery cover 7. Lavalier microphone 8. Charging contacts 9.
- Page 8 12I1205...
