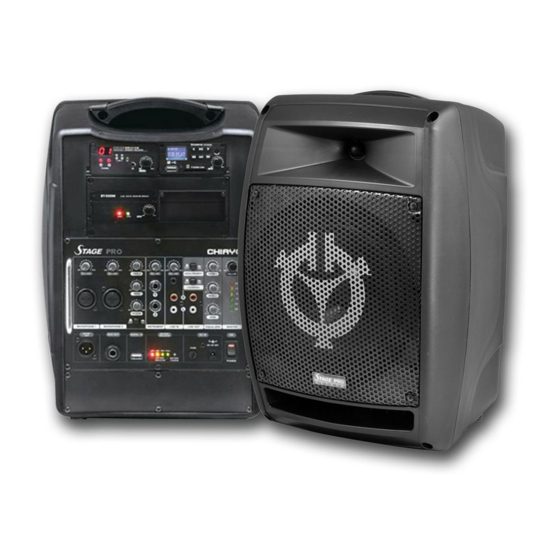

- Page 1 STAGE PRO Operation manual Portable Wireless Mixer PA System CHIAYO ELECTRONICS CO., LTD.
- Page 2 ⚫ Use only manufacturer authorized or recommended accessories. ⚫ Use only with a cart, stand, tripod or accessories specified or provided by Chiayo. Be careful when using a cart to avoid injury from tip-over. ⚫ Unplug the product during an electrical strom or when unused for long periods of time.
- Page 3 Operation manual Warning Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions ⚫ Be sure to read the instructions in this section carefully before use. ⚫...
-
Page 4: Table Of Contents
3. Application ..........................17 3-1. Active audio link: STAGE PRO to STAGE SLAVE ............18 3-2. Wireless audio link: repeat all audio to linked STAGE PRO / STAGE SLAVE ....19 3-2-1. Parts and functions of RP-5100M ................19 3-2-2. Changing channels ....................19 3-2-3. -
Page 5: Instruction
The Modules Compartment can be user configurable and user can access the battery compartment to change battery. Battery compartment 1-1. In the box STAGE PRO amplifier 0-4 handheld / beltpack Switching power supply transmitters (optional) (plug varies from country to country) operation manual 1-2. -
Page 6: Parts And Functions
STAGE PRO Portable Wireless Mixer PA System 1-3. Parts and functions INSTRUMENT VOICE PRIORITY MICROPHONE MICROPHONE TREBLE/BASS LINE IN TREBLE/MIDDLE/ volume control push button (for vocal) volume control BASS (for music) ①volume control ②volume control MASTER volume control LINE IN socket LOUDNESS (3.5mm) -
Page 7: Module Compartment
/ MP3 module. 1-6. Connection with external audio sources WIRED MIC INSTRUMENT TABLET / PHONE AMPLIFIER Sound control, e.g., volume and equalizer, of audio output from STAGE PRO is only operated on this external amplifier. ACTIVE SPEAKER ACTIVE SPEAKER COMPUTER DVD PLAYER... -
Page 8: Settings And Operations
STAGE PRO Portable Wireless Mixer PA System 2. Settings and Operations 2-1. Using the wired microphone (MICROPHONE 1, MICROPHONE 2) Plug a wired microphone with a 6.3mm or XLR connector to MICROPHONE 1 or MICROPHONE 2. Turn on master power and then adjust the specific (either MICROPHONE 1 or MICROPHONE 2) volume control to desired level. -
Page 9: Using The Wireless Receiver
Settings and Operations 2-2. Using the wireless receiver 2-2-1. Parts and functions Diversity A/B Transmitter battery RF signal meter Channel antenna power Audio signal meter IR sensor area SYNC Power switch / PWR/VOL volume control IrDA synchronization Frequency DOWN button UP button SET button button... -
Page 10: Channel Scanning
STAGE PRO Portable Wireless Mixer PA System 2-2-3. Channel scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. To operate the scanning: Press ▼(down) or ▲(up) button to make... -
Page 11: Volume And Other Settings
Settings and Operations 2-2-5. Volume and other settings Turn on master POWER and then adjust its individual volume control to a desired level. SYNC PWR/VOL TREBLE / BASS equalizer (refer to P.15) and REVERB (refer to P.16) levels can be adjusted individually. -
Page 12: Using An Electronic Instrument (Instrument ❶,❷)
STAGE PRO Portable Wireless Mixer PA System 2-3. Using an electronic instrument (INSTRUMENT ❶,❷) Plug an electronic guitar or keyboard with a 6.3mm plug to the INSTRUMENT input jack ❶ ❷ Turn on master power and then adjust INSTRUMENT volume control to a desired level. -
Page 13: Music Audio Input (Line In) - Smart Phone / Tablet / Mp3 Player / Dvd Player
Settings and Operations 2-4. Music audio input (LINE IN) - Smart phone / tablet / MP3 player / DVD player Smart phone / tablet / MP3 player Connect your device to the 3.5mm jack with a 3.5mm 3-pole stereo audio cable. DVD PLAYER ... -
Page 14: Music Audio Input (Digital In) - Computer/Notebook
2-5. Music audio input (DIGITAL IN) - Computer/notebook Use a USB cable to connect the unit and your PC/Notebook to make STAGE PRO the speaker of your device Turn on master power and then adjust MASTER volume control to a desired level. -
Page 15: Operating Bluetooth Receiver (Bluetooth)
GREEN Activate BLUETOOTH on your device (phone, tablet, PC., etc) and pair with external BLUETOOTH device named “BT AUDIO”. After successful linking, the pairing indicator will be solid green and you can play your music on STAGE PRO. Settings Bluetooth... -
Page 16: Equalizer For Wired And Wireless Microphone And Music
STAGE PRO Portable Wireless Mixer PA System Important ⚫ The BLUETOOTH automatically turns off after no pairing for 5 minutes. ⚫ Press SWITCH button for disconnection and getting ready for new pairing. ⚫ The BLUETOOTH can memorize and automatically connect to last-paired device. -
Page 17: Voice Priority
Settings and Operations 2-8. Voice priority Voice Priority operation is only necessary when CD/USB/MP3 is playing. When the Voice Priority switch is ON, the ducking function will be activated. While the music is playing, a voice input from either a WIRED or WIRELESS MICROPHONE will temporarily override and lower the volume of the background music and voice could be heard more clearly. -
Page 18: Application
3. Application 3-1. Active audio link: STAGE PRO to STAGE PRO STAGE PRO operates as the MASTER as well as companion unit in an audio link (wired) configuration. Connect one STAGE PRO after the other via the ACTIVE IN and ACTIVE OUT jacks. -
Page 19: Active Audio Link: Stage Pro To Stage Slave
Application 3-2. Active audio link: STAGE PRO to STAGE SLAVE STAGE PRO operates as the MASTER unit in an audio link (wired) configuration with active companion powered speakers STAGE SLAVE. Connect the STAGE PRO (master unit) and STAGE SLAVE (active companion powered speakers) via ACTIVE OUT and ACTIVE IN jacks. -
Page 20: Wireless Audio Link: Repeat All Audio To Linked Stage Pro / Stage Slave
3-3. Wireless audio link: repeat all audio to linked STAGE PRO / STAGE SLAVE STAGE PRO operates as the MASTER unit in a wireless audio link with other STAGE PRO or active companion powered speakers STAGE SLAVE. The repeater module RP-5100M of master STAGE PRO can transmit all audio signals, including wired/wireless microphone, music, instrument etc., to other units installed with receiver module. -
Page 21: Audio Input And Gain Control
Application 3-3-3. Audio input and gain control Connect your device to the 3.5mm jack of AUX IN with a 3.5mm 3-pole stereo audio cable. Use a mini screw driver to adjust the volume of the input audio. 3-3-4. Adjust internal audio gain level Use a mini screw driver to adjust the volume of audio sources in the master unit. - Page 22 IrDA receiver module COMPANION Turn on master POWER of STAGE PRO and EACH STAGE SLAVE and then adjust master volume control to a desired level. Turn on power of EACH STAGE SLAVE and then adjust the volume control to a desired level.
-
Page 23: More Extension
Application 3-4. More extension To reach wider coverage, the companion unit STAGE PRO / STAGE SLAVE can serve as SUB-MASTER to transmit signals to SUB-COMPANION units. Important: Please do not set the SUB-COMPANION as next MASTER in order to guarantee best sound quality. -
Page 24: Installing Or Replacing A Receiver/Repeater/Mp3 Module
STAGE PRO Portable Wireless Mixer PA System 4. Installing or replacing a receiver/repeater/MP3 module There are four slots above the control panel and two on MB-50 module bracket for installing optional modules which includes receiver, repeater and MP3 recorder modules. -
Page 25: Faq & Useful Operation Tips
Is it possible to record the sound of Microphone or external devices when using STAGE PRO? Yes. Install an MP3 recorder player (DPR-500m) on STAGE PRO to obtain recording function. How to avoid or reduce feedback? ▌Do not stand in front of the speaker ▌Do not point the wireless microphone... - Page 26 The battery life is limited and affected by the environment, charging method and battery efficiency. Is it possible that STAGE PRO can work as amplifier only? Can I use only one or more microphones? How many wireless microphones can be used at most? Yes, each STAGE PRO (or STAGE SLAVE) can work as amplifier.
-
Page 27: Maintenance-Free Lead-Acid And Lithium Batteries
2. Please use the power supply specified by CHIAYO for charging. 3. The CHIAYO amplifier has a protection circuit to prevent overcharging. To ensure safety, the charging time should not exceed 12 hours. Please disconnect the power supply when fully charged. - Page 28 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611 12I1430A...
