Removing And Reinstalling The Main Parts - Sharp QT-CD161 Service Manual

(E1)x4
ø3x10mm
Tape
Mechanism
Top Cabinet
CD Mechanism

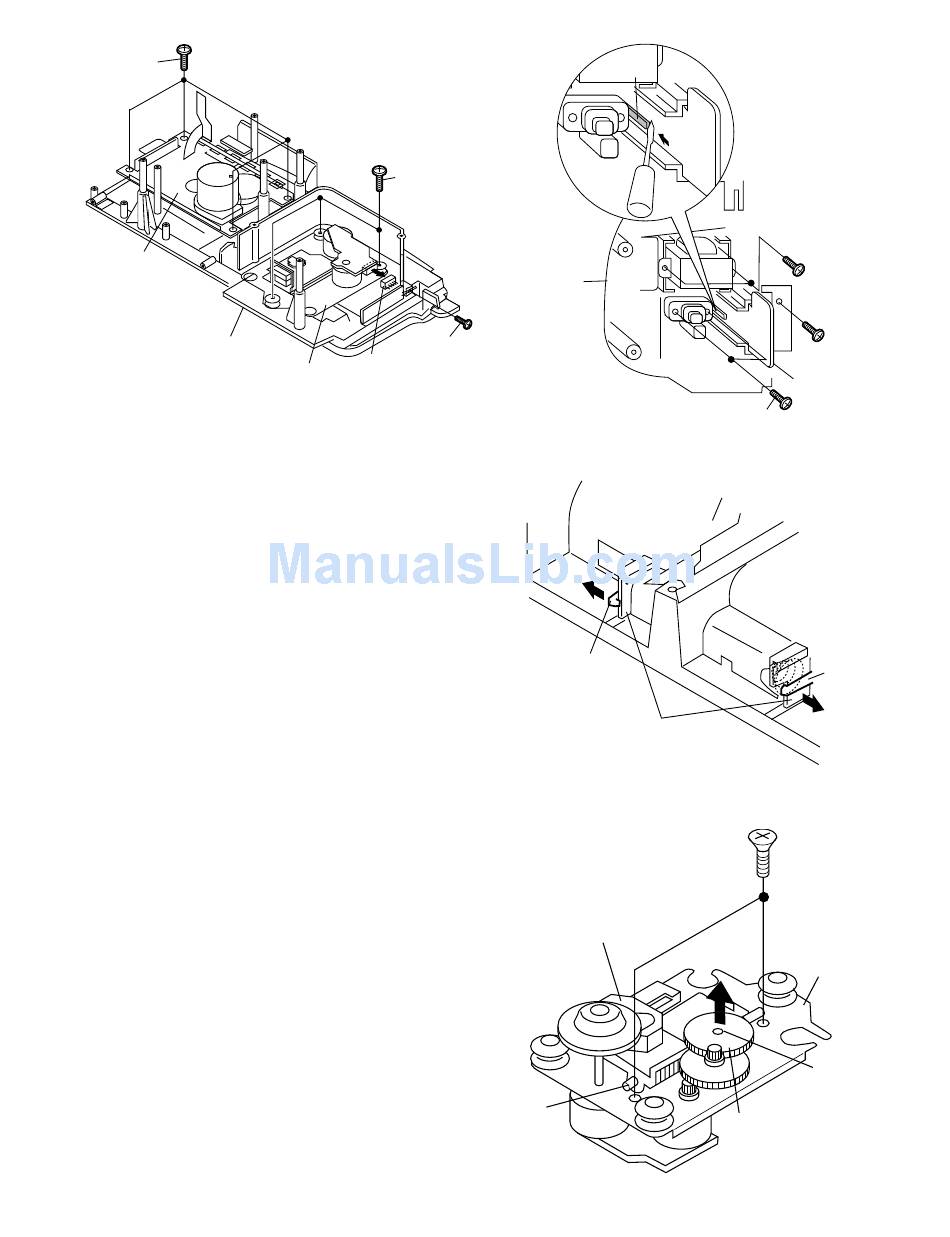

Figure 5-1

REMOVING AND REINSTALLING THE MAIN PARTS

CD MECHANISM SECTION
Perform steps 1, 2, 3 and 5 of the disassembly method to
remove the CD mechanism.
How to remove the pickup (See Fig. 5-4.)
1. Remove the screws (A1) x 2 pcs., to remove the shaft (A2)
x1 pcs.
2. Remove the stop washer (A3) x1 pcs., to remove the gear
(A4) x 1 pcs.
3. Remove the pickup.
(F1)x3
ø2.5x10mm
Rear Cabinet
(C1)x1
ø2.5x8mm
(C2)x1
Shaft
(A2) x1
– 5 –
(G2)x1
Push
Driver
(G1)x2
ø3x10mm
Figure 5-2
Rear Cabinet
Pull
(H1)x1
Battery PWB
Figure 5-3
Pickup
Gear
(A4) x1
Figure 5-4
QT-CD161/141
(G1)x2
ø3x10mm
(G1)x1
ø3x10mm
Terminal PWB
(H1)x1
Pull
(A1) x2
ø2.6 x6mm
CD
Mechanism
Stop
Washer
(A3) x1
