Sportline 343 User Manual

9 10
The preset goals are: Pedometer Back Side
FUNCTION VOICE ANNOUNCEMENT 1. Press tab to slide out.
Number of Steps Every 1000 steps
Distance Every 0.5 miles or 0.5 km's
Calories Every 50 calories 2. Insert thin sharp tool, such as a small
Total Time Every 10 minutes screwdriver or thumb nger nail, at
To turn this feature o , simply hold the AUTO button again. It location shown to straighten the
will say, "Auto Report is o ." compartment so it is parallel to the
edge of unit. (Pull battery door straight

RESETTING THE PEDOMETER:

out from center direction as shown to
When your pedometer appears to be functioning abnormally pull out insulation tab.)
(for example, the display reading looks strange or appears to
3. Remove the old battery and install a
be frozen or a button isn't functioning properly), you need to
reinitialize your pedometer. To do this use a thin, pointed new CR2032 battery as indicated by the
object such as a paper clip to press the RESET button on the polarity symbols (+ and -) marked in
back of the pedometer. You will then need to reenter your the battery compartment.
stride length and weight.
4. Put the battery drawer back in place.

TO REPLACE BATTERIES:

Note: You will need to reenter your stride
If the sound weakens or the display dims or distorts, you need
to replace the battery. This pedometer uses one CR2032 length and weight after replacing the
battery. To install the new one: batteries.

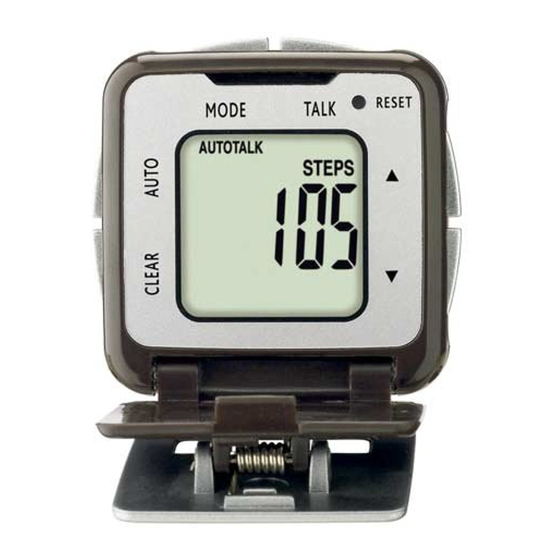

343 TALKING CALORIE COUNTER PEDOMETER

DISPLAY OPTIONS AVAILABLE:

This pedometer can measure and calculate in four modes:

PEDOMETER FEATURES:

Step, Distance, Calories and Time.
RESET
MODE TALK
The Talking Calorie Counting Pedometer Step Mode shows the number of steps taken from
has many features to enhance your 0 to 99999.
walking or jogging experience: Distance Mode shows the distance you have walked or jogged
in either miles or km's from 0 to 999.99 MI/
1. Records steps, distance, calories burned 999.99 km.
and time with the special feature of Calories Mode shows the amount of calories burned from 0 to
having this information announced to 99999 kcal.
you at the press of a button. Time Mode shows the amount of time you've exercised from 0
2. Auto Voice automatically reports minutes to 999 hours and 59 minutes.
steps, distance, calories burned and
time when the preset goal function is turned on.

BUTTONS ON YOUR PEDOMETER:

3. The 'smart timer' function can detect false steps so that only TALK – When pressed once will announce the information
deliberate steps are counted. pertaining to the mode currently showing on the display.
When held it will announce step, distance, calories and time in

TO OPERATE YOUR NEW PEDOMETER:

sequence starting from the mode currently displayed.
1. Remove the plastic lm from the LCD display on the front of CLEAR – When pressed and held it will announce "All Clear"
the pedometer. and reset all data to "O".
AUTO – Hold AUTO button down until you hear "Auto report is
2. Open up the battery compartment to remove the battery
protector tab to activate your pedometer. See instructions on" and you see (((.))) appear on the screen. When the auto
on replacing battery to open the battery door. report is on, your pedometer will automatically announce your
2 3
11
CAUTION - Safety Battery Information
Please note: Before using your
• Non-rechargeable batteries are not to be recharged pedometer, remove battery
insulation strip. (Insulation strip
• Rechargeable batteries must be removed
designed to preserve battery power)
before recharging

LIMITED WARRANTY

• Rechargeable batteries only to be recharged under
For products purchased in the United States:
adult supervision
EB Sport Group (referred to as the "Warrantor"), will repair or replace
• Do not mix alkaline, standard (carbon-zinc), or rechargeable
this product with new or refurbished parts or product, at Warrantor's
sole option, free of charge, in the U.S.A. in the event of a defect in
(nickel-cadmium) batteries
materials or workmanship for one (1) year from the date of original
• Do not mix old and new batteries
purchase.
• Exhausted batteries to be removed
• Do not dispose of battery in re; battery may explode
To obtain warranty service on your product or a replacement, you may
or leak
return it to: EB Sport Group Customer Service, 4 Executive Plaza,
• Do not dispose of product in re; battery may explode or leak
Yonkers, NY, 10701, USA.
IF THE UNIT IS RETURNED FOR SERVICING, ENCLOSE $7.50 FOR
POSTAGE AND HANDLING. SEND YOUR UNIT INSURED TO OUR
SERVICE DEPARTMENT.
This warranty does not cover damage which occurs in shipment or
failures which are caused by other products not supplied by EB Sport
Group, or failures which result from normal wear, accident misuse,
abuse, neglect, mishandling, misapplication, alteration, modi cation,
overloading the product beyond its rated capacity, using the product
with an improper accessory or adjustments/repairs/service by anyone
steps, distance, calories and time. (See below). If you hold the to decrease weight from 300 pounds to 40 pounds or 150
AUTO button down when the Auto Report function is turned kilograms to 20 kilograms when inputting your weight.
on, you will then hear "Auto report is o " and the (((.))) symbol
will disappear from your screen. Then it will no longer

TO SET UP YOUR PEDOMETER:

automatically announce the preset goals until you turn 1. First decide whether you want your pedometer to report
it on again. your distance in miles or kilometers.
MODE – The MODE button has two functions. Each time you 2. Determine whether your pedometer is currently reporting
press the mode button once it will take you to the next mode data in the Imperial (Miles) system or Metric (Kilometers)
in sequence from Step, Distance, Calories, and Time. Your system. If already in desired system, you can skip to 'Input
Pedometer will announce the mode you're in each time you Your Stride Length".
press it. The MODE button also is used to set your step length 3. If you need to switch, press the MODE button to distance
and weight into the pedometer when holding it down. You mode, then press the CLEAR (CL) button. Hold the CLEAR
will hear "Enter your step length" when held down the rst button for 5 seconds. You will hear two beeps signifying
time. You will then hear "Enter your weight" when held down that the system has changed from "KM" to "MI" or vice
the second time. (See below for details on entering your step versa.
length and your weight.)
L – Allows you to increase step length from 10 inches to 80 INPUT YOUR STRIDE LENGTH (ranges from 10 inches to 80
inches or 10 centimeters to 120 centimeters when entering inches or 10 centimeters to 120 centimeters):
your personal data. It also allows you to increase
10 8 6
weight from 40 pounds to 300 pounds or 20 kilograms to 150
kilograms when inputting your weight. 9 7 5
M – Allows you to decrease step length from 80 inches to 10
inches or 120 centimeters to 10 centimeters. It also allows you
4
WV3482IS01SPT
06/18/08
12 13
other than an authorized EB Sport Group personnel, or damage that is
attributable to acts of God.
Limits & Exclusions
There are no express warranties except as listed above.
EB SPORT GROUP SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
This limited warranty gives you speci c legal rights and you may also
have other rights, which vary from state to state in the USA.
For product purchased in the UK:
Should you experience problems with this item, please return it to the
point of purchase. This will not a ect your statutory rights.
Alternatively return it to the address shown below for a
repair/replacement: StarCase (UK) Ltd, Berkeley Business Park,
Wainwright Road, Worcester WR4 9FA.
1. Walk 10 steps.
2. Measure the distance that you walked either from
heel-to-heel or toe-to-toe.
3. Divide by the distance covered to arrive at your
stride length.
4. Example: If measured distance equals 360 inches and the
number of steps taken was 10, your stride length equals 36
inches.
IMPORTANT: Please remember that the length of your stride
while walking is di erent than the length of your stride while
running. If you plan to use this pedometer for both types of
exercise, you will have to reprogram your stride length when
you go from one to the other.
5. Hold the MODE button down starting from any mode until
you hear "Enter your step length". The display will ash
previous stride input in inches or centimeters.
6. If you do not need to change the stride, press the MODE
button again. Then skip to # 1 below.
4
2 0 L
7. To change your stride length press either the button or
3 1 M
the button until you reach your actual stride length. You
Step Distance
can rapidly increase or decrease the stride length by
Ideal Distance
holding down the L and/or M .
5 6
14
343 Talking
Calorie Counter
Pedometer
www.sportline.com
Sportline® is a trademark of SPORTLINE, a division
of EB Sport Group, Yonkers, NY 10701
Distributed in the UK by
StarCase (UK) Ltd., Worcester, WR4 9FA
All Rights Reserved. ©2008
#3482
WV3482ISO1SPT
8. When you reach your stride length press the MODE button
again to set it into your pedometer.
9. When pressing the MODE button in #8 to set your
stride length, your pedometer will then announce
"Enter your Weight".

TO START YOUR EXERCISE:

10. The display will ash the previous weight input you set into
1. Press the CLEAR button (CL) to clear out all data recorded
your pedometer in either pounds or kilograms.
previously. All readings will go to (0) and you will hear ALL
11. If you do not need to change the weight, press the MODE
CLEAR.
button again to keep the same weight set.
2. Press the MODE button until you reach the desired mode
12. If you do need to change the weight, press either the
L M you want to be in. It will display/announce the mode. If you
button or the button until you reach your actual
keep pressing the button, it will announce the data in
weight information. You can rapidly increase or decrease
sequence.
the weight by holding down the L and/or M .
(Step, Distance, Calories and Time) simultaneously while
13. Once you've reached the correct weight, press the MODE
the information is being displayed.
button again to set it.

AUTOMATIC VOICE ANNOUNCEMENT:

TO POSITION THE PEDOMETER:

Your pedometer has been programmed with preset goals. If
1. Clip the unit to your belt or to the top of your shorts, trousers or
you want to use this feature simply hold the AUTO button
shorts as close as possible to the crease line.
until you hear "Auto Report Is On" and AUTOTALK will be
2. The pedometer must always be horizontal and parallel to
displayed on your screen.
the ground. If you attached it sideways or at an angle, false
readings will occur.
7 8
1
©2008 Sportline
