Installation instructions

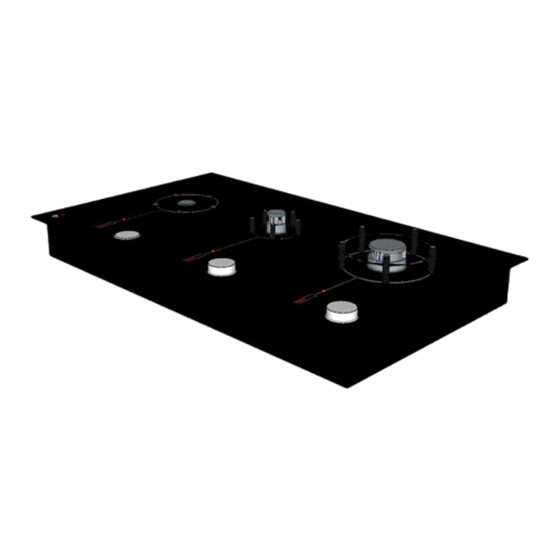

IZONA CookSurface
CG903ML & CG903MLD models
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our
local website listed at the end of this document or contact your local Fisher & Paykel dealer.

SAFETY AND WARNINGS

1
Electrical shock hazard
Disconnect appliance from main power supply before continuing.
Failure to do so could result in electrical shock or death.
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Important safety precautions!
Particular attention shall be given to the relevant requirements regarding ventilation.
Please make this information available to the person installing the appliance as it could reduce your
installation costs.
This appliance is to be installed and connected to the electricity and gas supply only by an authorised
person.
Installation must comply with your local building and local gas authority codes and electricity
regulations.
Failure to install the appliance correctly could invalidate any warranty or liability claims.
These appliances are registered in: (New Zealand) at www.ess.govt.nz and (Australia) with SAI Global
at www.saiglobal.com.
This gas appliance is suitable for connection to natural gas only. If in doubt, refer to the local gas
network operator or gas supplier to con rm gas type at installation site.
WARNING!
WARNING!
Before you install the appliance, please make sure that
the local distribution conditions (nature of gas and pressure) and the adjustment of the appliance
are compatible. For adjustment conditions for this appliance, see 'Gas rate summary'
a suitable disconnection switch is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations. A means of disconnection with at least a 3 mm
air gap contact separation in all poles must be incorporated into the xed wiring in accordance with
the wiring rules, unless the local wiring rules allow for alternative means
the appliance is connected to a 220V - 240V 50Hz (10 A) power supply only and earthed via the
power supply cable
there is a power outlet within reach of the power supply cable (900 mm from the centre rear of the
product). This must be accessible after installation. The power supply cable should not touch any
metal parts
if the power supply cable is damaged, it is replaced only by the special cable: Part no. 531953 - Flex
Terminal Block Assy NZ/AU, obtainable from authorised Fisher & Paykel Service Agents
the supply connection point (gas shut-o valve) is accessible after installation
the benchtop is made of a heat resistant material
the installation complies with all the requirements of Australian and New Zealand Gas Installation
Standards (AS5601, NZS5261), including that the product has to be installed so that the surface
temperature of any nearby combustible surface will not exceed 65
'Clearance Dimensions' .
When you install the appliance
We do not recommend you ush mount or seal this appliance into the bench with silicone or glue.
Doing so will make future servicing di cult. Fisher & Paykel will not be liable for any costs associated
with removing or replacing a sealed-in appliance, nor for repairing any damage that may be incurred
by doing this.
Seal exposed bare edges of the cutout with an oil-based paint or moisture-proof polyurethane to
prevent possible moisture creeping between the cooktop trim and the benchtop.
We do not recommend the use of a down-draught extractor fan with the appliance, as it may distort
the ame pattern, causing uneven heating and reduced cooking performance.
Where this appliance is installed in marine craft or in caravans, it shall not be used as a space heater.
No combustible material or products should be placed on this appliance at any time.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
If, after following the instructions given, the appliance cannot be adjusted to perform correctly,
please refer to the Service & Warranty book for warranty details and your nearest Authorised Service
Centre, Customer Care, or contact us through our website: www. sherpaykel.com.
NZ AU
C above ambient. See 3
O

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG903ML and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fisher & Paykel CG903ML

  • Page 1: Safety And Warnings

    Installation instructions IZONA CookSurface CG903ML & CG903MLD models NZ AU Important! SAVE THESE INSTRUCTIONS The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed at the end of this document or contact your local Fisher &...
  • Page 2: Clearance Dimensions

    650 - 750 mm above Note: *(CG903ML models only) If benchtop thickness exceeds 50 mm, additional cutout space will be required to oor and towards the left-hand end of the product.
  • Page 3: Parts Supplied

    GAS RATE SUMMARY All appliances are factory set for natural gas and are not currently convertable to LPG. NZ AU SMALL MEDIUM NG (1.0 kPa)* CG903ML & 1.09Y 1.15Y 1.65 12.8 CG903MLD *Nominal pressure with the two smaller burners on High.
  • Page 4 FLUSH MOUNTING INSTALLATION (NOT RECOMMENDED) view from below WARNING! We do not recommend ush mounting and sealing as servicing requires the CookSurface to be removed from the benchtop. The owner carries all risk for ush mounting the CookSurface. The owner must ensure the CookSurface has been cut out Re t existing from the benchtop before...
  • Page 5 REMOVE FROM PACKAGING ENSURE THERE IS ADEQUATE AIR SUPPLY 500 mm 50 mm The CookSurface requires adequate air supply to fully function. The base of the CookSurface must have direct unrestricted ventilation to the room where the CookSurface is installed. Do not ventilate the base area to an external area that can be at di erent air pressure to that of the burners.
  • Page 6: Check For Gas Leaks

    SECURE THE PRODUCT TO THE BENCHTOP CONNECT TO THE GAS & ELECTRICAL SUPPLY view from below Ensure the blue washer is tted ½ “ BSP For benchtops thicker than 50 mm, reverse the clamping brackets, as shown Re t existing Re t existing screw to secure screw to secure...
  • Page 7: Final Checklist

    FINAL CHECKLIST Installer’s name: TO BE COMPLETED BY THE INSTALLER Have you installed the clamping brackets? Installer’s signature: Have you allowed for adequate air supply to the product? Installation company: Have you used the supplied exible hose and blue washer? Date of installation: Have you leak-tested all connections? Is the regulator set to the correct working pressure?
