GAS STAINLESS COOKTOPS
CG604D & CG905D models

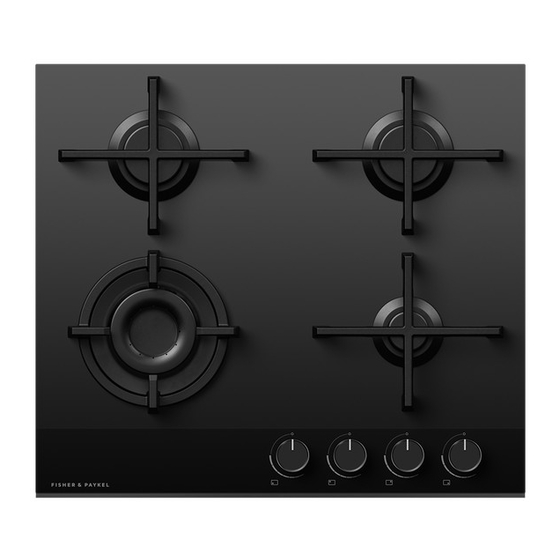

CG604D
CG905D
USER GUIDE
用户指南
HK SG

Advertisement

loading
Need help?

Need help?

Do you have a question about the CG604D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fisher & Paykel CG604D

  • Page 1 GAS STAINLESS COOKTOPS CG604D & CG905D models CG604D CG905D USER GUIDE 用户指南 HK SG...
  • Page 3: Table Of Contents

    Contents Safety and warnings Introduction Using your cooktop Cooking guidelines and cookware Care and cleaning Troubleshooting Warranty and service Important! SAVE THESE INSTRUCTIONS The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher &...
  • Page 4 Safety and warnings Safety and warnings Operation WARNING! Poisoning Hazard Never use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the appliance. Failure to follow this advice may result in poisoning or death.
  • Page 5 Safety and warnings Safety and warnings WARNING! Fire Hazard Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. Failure to follow this advice may result in serious injury. WARNING! Explosion Hazard Do not use or store fl ammable materials such as gasoline near this appliance.
  • Page 6 Safety and warnings Safety and warnings Important safety instructions! Operation Keep children away from the cooktop when it is in use. Household appliances are not intended to be played with by children. Children of less than 8 years old must be kept away from the appliance unless continuously supervised.
  • Page 7 Safety and warnings Safety and warnings Important safety instructions! Operation This appliance should be connected to a circuit that incorporates an isolating switch providing full disconnection from the electricity supply. Do not use an asbestos mat or decorative covers between the flame and the saucepan as this may cause serious damage to your cooktop.
  • Page 8: Safety And Warnings

    Safety and warnings Safety and warnings Important safety instructions! Operation Where this appliance is installed in marine craft or in caravans, it shall not be used as a space heater. The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed.
  • Page 9 Safety and warnings Safety and warnings Important safety instructions! Operation This appliance is to be serviced only by an authorised person. Some products are supplied with protective film on steel and aluminium parts. This film must be removed before using the appliance.
  • Page 11: Introduction

    Check that the installer has completed the ‘Final checklist’ in the Installation instructions. Ensure the power supply to the cooktop is turned on. Semi-rapid burner Rapid burner Mini wok burner Cooktop layout - CG604D Wok burner Auxiliary burner Control dials Cooktop layout - CG905D...
  • Page 12: Using Your Cooktop

    Using your cooktop High High Burner indicator Identify the dial of the burner you want to Press down (a) then turn anti‐clockwise to High (b). use. The ignitors will start clicking as they spark. If there is no clicking, there is no spark to light the burner.
  • Page 13 Using your cooktop Wok cooking Use your wok only on the wok or mini wok burner (depending on model) and with the supplied wok stand in place, as shown. Important! Make sure that the wok stand is stable: its notches need to fit tightly over the pan supports, as shown.
  • Page 14: Cooking Guidelines And Cookware

    Cooking guidelines and cookware Cooking guidelines Important! Never leave the cooktop unattended when in use. Boilover causes smoking and greasy spills that may ignite. Take care when deep-frying: oil or fat can overheat very quickly, particularly on a high setting. Using a lid will reduce cooking times through retaining the heat.
  • Page 15: Care And Cleaning

    Care and cleaning Important! Before any cleaning or maintenance, always: turn all burners off. switch the power to the cooktop off at the wall. make sure that the cooktop and its parts are a safe temperature to touch. General advice Clean the cooktop regularly—do not let stains become burnt on, as they may become very difficult to remove.
  • Page 16 Care and cleaning How? Important! What? How often? Remove the parts that you wish to clean. Make sure you keep the flame Burner See the the illustrations following this ports clear. Soiling from food caps and rings, flame chart. spillage may clog these and spreaders, Soak stubborn stains in a solution of cause ignition problems or...
  • Page 17 CG604D models The pan supports can only be placed as shown and need to be rotated to match the rounded corners of the cooktop base and the opening fits over the mini-wok burner. Fig.20 Correct positioning of pan supports (CG604D models)
  • Page 18 Care and cleaning Replacing the burner parts correctly Semi-rapid, rapid, and auxiliary burners Flame spreader Ignitor Probe Wok and mini wok burners (Wok burner illustrated) Flame Ring spreader Ignitor Probe...
  • Page 19: Troubleshooting

    Troubleshooting Problem Possible causes and solutions There is a strong gas The gas connection could be leaking because of incorrect smell. installation or damaged piping. Important! Do not use any electrical equipment or operate any electrical switches. If any burners are on, turn all of them off immediately. If you know how to shut off the gas supply to your cooktop (either at the valve or the gas bottle), do so.
  • Page 20 Troubleshooting Problem Possible causes and solutions The burner goes out Try lighting the burner again, this time holding the dial down when I release the dial longer. 3 seconds after the flame lighting. The flame has been The flame failure protection will automatically cut the gas blown out by a draught supply to the burner off, stopping unburnt gas from escaping.
  • Page 21 Troubleshooting Problem Possible causes and solutions The flames are too The cooktop may have been connected to the wrong type of large, or too small. gas. Contact Customer Care and do not use your cooktop until it has been checked by a qualified technician. The flames are noisy.
  • Page 22: Warranty And Service

    Warranty and service Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &...
  • Page 33 CG604D CG905D...
  • Page 35 CG905D...
  • Page 36 22cm 22cm 22cm 15cm 22cm 36cm 20cm 40cm 45cm...
  • Page 39 CG905D CG905D CG604D CG604D...
  • Page 48 FISHERPAYKEL.COM © © Fisher & Paykel 2017 版权所有。 版权所有。 本手册中的产品规格适用于其出版之日所描述的特定产品和型号。我们奉行持续改 进的产品策略,因此上述规格可能会随时变更。因此,请同您的经销商核实本手册 是否正确描述了目前可以在市场上购买到的产品 HK SG 590632C 08.17...
