System 4xi Help

_________ As with all Windows® Help menus, clicking on the underlined words will give

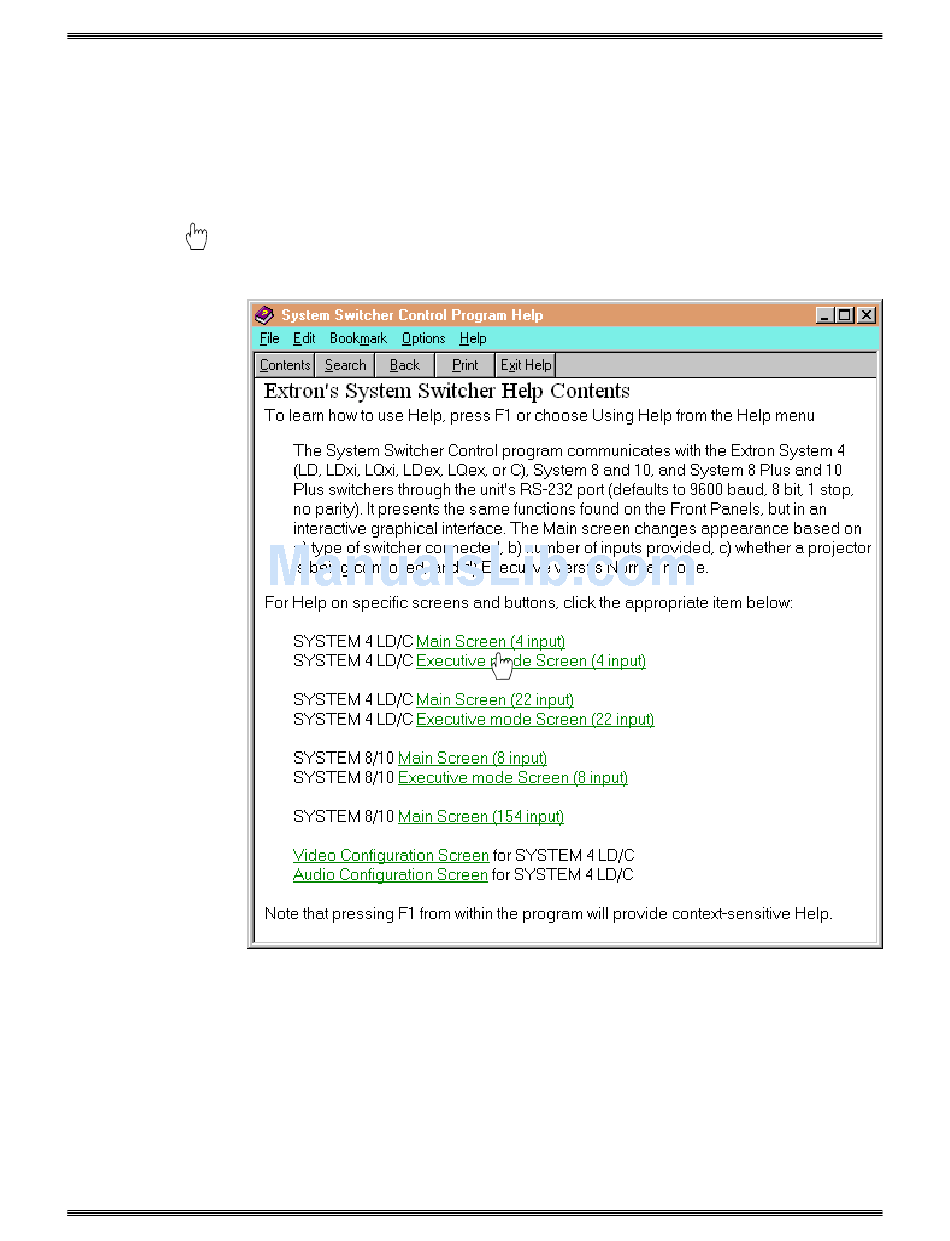

Figure 5-3. Example of the first Help menu, Help Contents

Extron • System 4 xi Switcher Series • User's Manual

The fastest way to learn what each Windows® function does is through the Help

menus. At any time, help is available by double-clicking the Help icon (previous

section), pulling down the Help menu or by pressing F1. This will bring up the

Help menu (like the example shown below) to allow you to step through the

screen examples. Click on the items on each screen to display a description.

more detailed help.

After viewing the Help menus, use the software to setup your System 4xi.

Specific examples are given below.

Each function on the front panel of your System 4xi is emulated in the software

panel in the window. Also, the software was written to operate with different

models of switchers. Therefore, any function that is not available on your model

will be inactive in the window. A function is inactive when it appears dull, or gray,

and does not respond to the mouse cursor.
