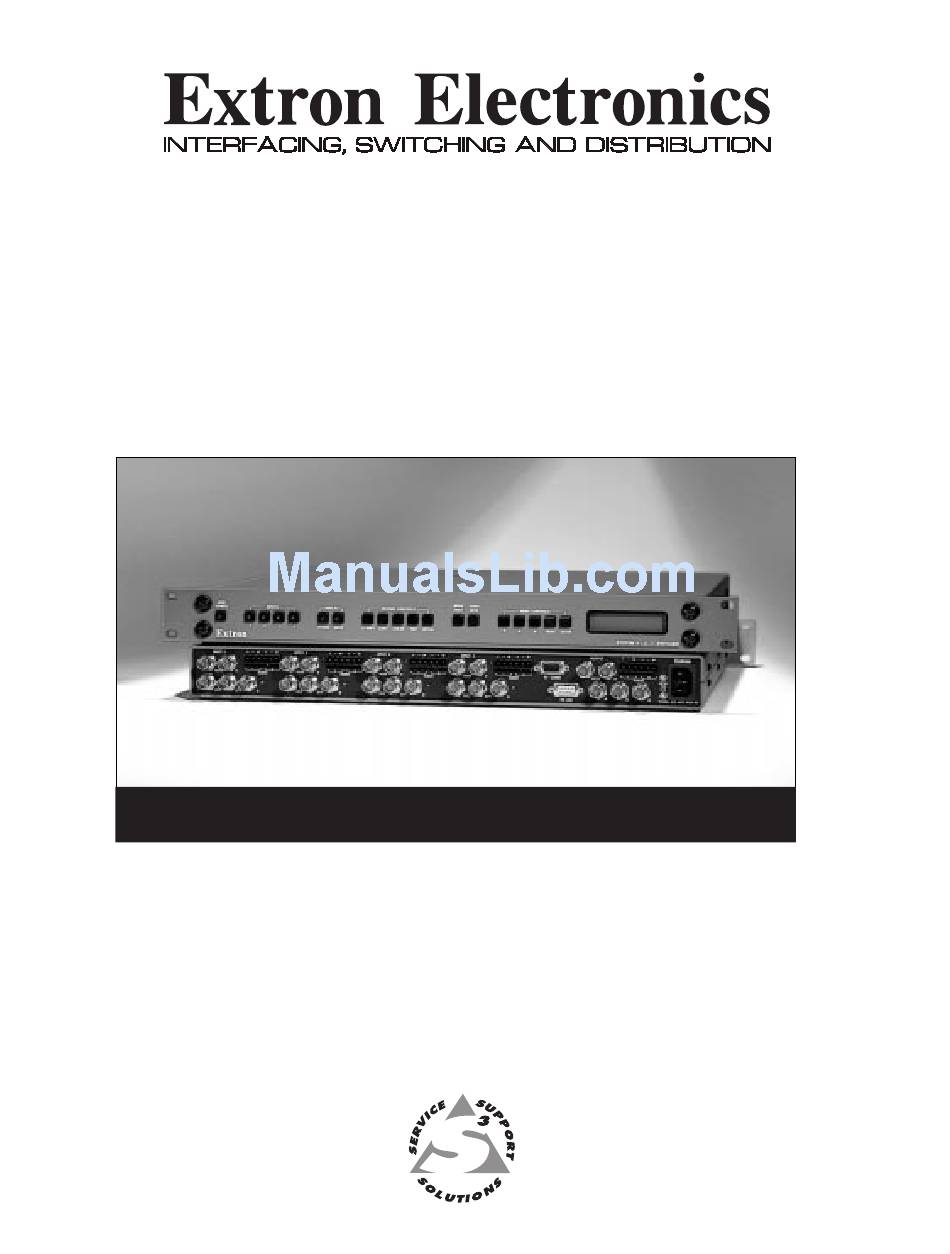

Extron electronics System 4LQ xi Specification Sheet

Line quadrupler with built-in switcher

Hide thumbs Also See for System 4LQ xi:

Download this manual See also: User Manual

4LQxi – L

YSTEM

INE

UADRUPLER WITH

-I

UILT

WITCHER

Universal projector

control

Video or S-Video

line quadrupler

Quad Standard decoder

(NTSC 3.58, NTSC 4.43,

PAL & SECAM)

Three line adaptive

comb filter

Motion mode

compensation

RGsB, RGBS or RGBHV

outputs

RS-232 control

Sync polarity

programming

Triple Action Switching

™

300 MHz (-3 dB)

video bandwidth

Balanced/unbalanced

stereo audio inputs

Rack mountable

Need help?

Do you have a question about the System 4LQ xi and is the answer not in the manual?

Page 1 4LQxi – L YSTEM UADRUPLER WITH UILT WITCHER Universal projector control Video or S-Video line quadrupler Quad Standard decoder (NTSC 3.58, NTSC 4.43, PAL & SECAM) Three line adaptive comb filter Motion mode compensation RGsB, RGBS or RGBHV outputs RS-232 control Sync polarity programming Triple Action Switching...
Page 2 The System 4LQxi is also compatible with balanced and unbalanced, two-channel stereo audio. The System 4LQxi has the ability to switch between the four audio inputs. The audio can either follow any video or RGB input signal or be broken away from the video. With "breakaway" switching, the audio signal may be separated from the video signal to switch either the video only or the audio only.
Page 3 Using the projector-brand remote control, the System 4LQxi can be made to switch inputs, power “on” or “off” the projector, mute the audio or video signals and switch the four inputs. This may also be accomplished by using...
Page 4: Application Diagram
6 conductor capable of driving 600 ohms (auto-switchable) 4.4 H x 48 W x 41 D cm OUTPUT AUDIO Control Stereo Audio System Large Screen Projector EXTRON ELECTRONIC INFORMATION WEB™: www.extron.com XTRON FAX™: 714.491.0192 XTRON 24-hour access—worldwide! 89-03 68-373-01 REV. A...
