Summary of Contents for Extron electronics DVI-RGB 100

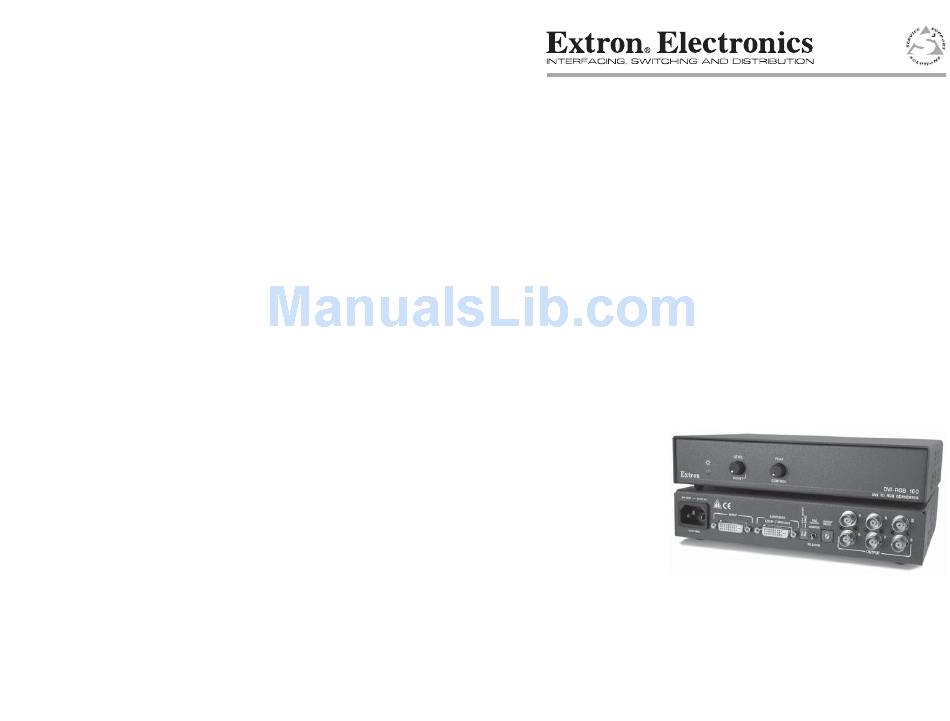

- Page 1 User’s Guide DVI-RGB 100 Direct Digital Video to RGB Video Converter 68-610-01 Rev. A Printed in the USA 05 02...
- Page 2 Installation Overview The DVI-RGB 100 converter converts direct digital video to analog RGB video. The converter accepts a single link of digital-only Digital Visual Interface (DVI-D) video from a computer, or other digital video source 100-240 50/60 Hz device, on a standard 25-pin female DVI-D connector. Digital Flat Panel...
-
Page 3: Installation

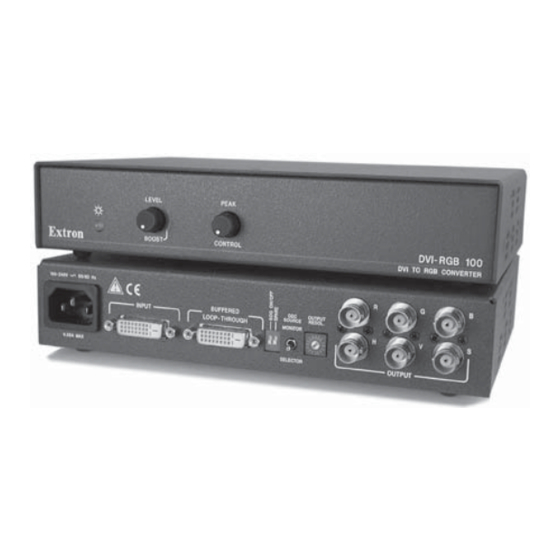

CONTROL DVI TO RGB CONVERTER Figure 4 — DVI-RGB 100 front panel Power LED — The Power LED lights when the DVI-RGB 100 is receiving power. Level Boost control — The Level Boost control alters the bright- False Front Panel ness of the picture on the RGB output. -
Page 4: Operation
Peaking has no affect on the DVI output of the Buffered Loop- through connector. Operation After the DVI-RGB 100 and its connected devices are powered up, the system is fully operational. If any problems are encountered, verify that the cables are routed and connected properly. - Page 5 Minimum/maximum levels ..0.7V to 1.4V p-p (continuously adjustable) Impedance ........75 ohms Return loss ........-35dB @ 5 MHz DC offset ........±5mV maximum with input at 0 offset Sync Output type ........RGBHV, RGBS, RGsB Output level ........TTL (5V p-p) (unterminated) Output impedance .......
