American Standard VertiSpa 6035 Installation Instructions

AHJE F=
™
Designer Shower
Massage System
Thank you for selecting American-Standard...the benchmark of
fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.

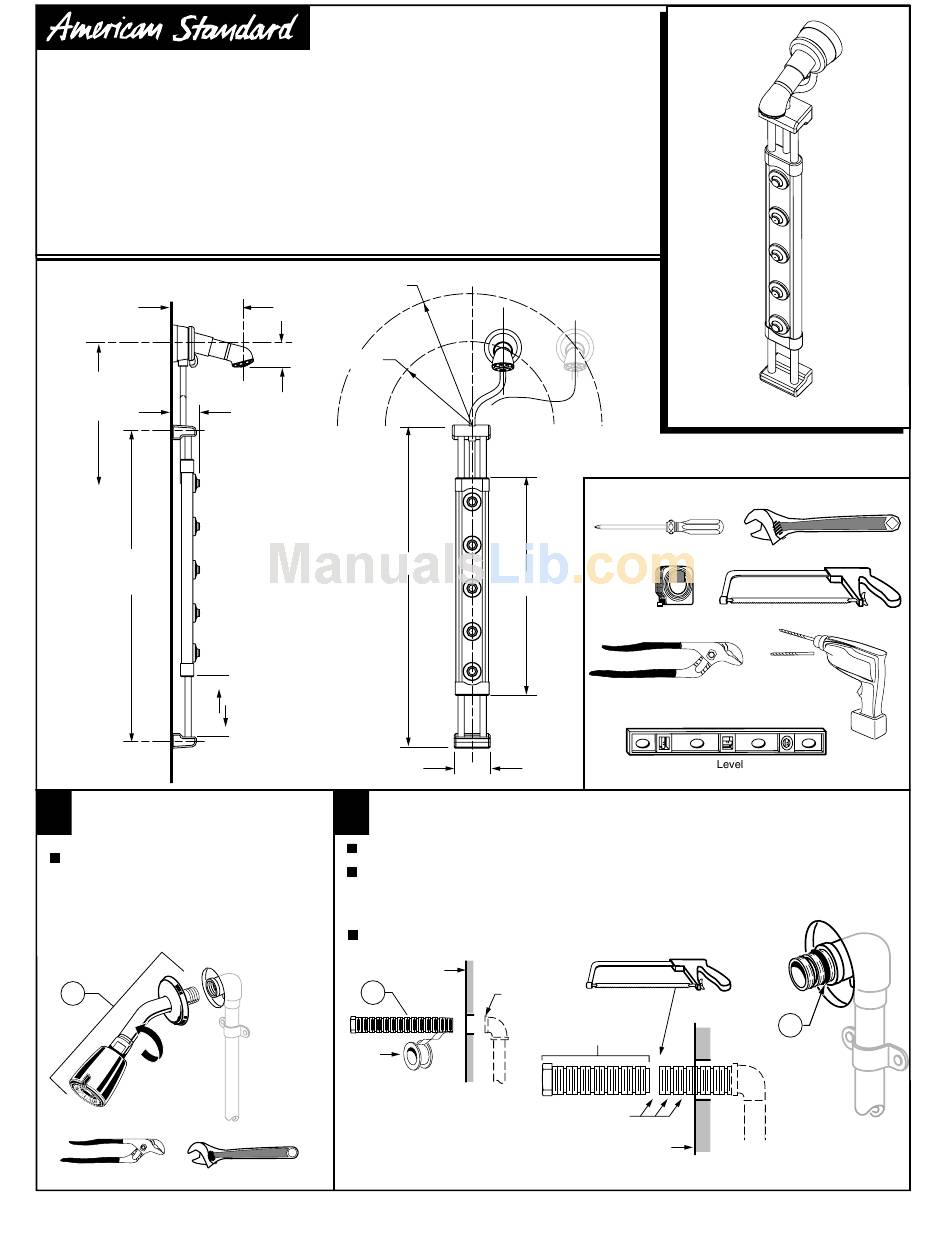

ROUGHING-IN DIMENSIONS
8-5/8"
65" TO 78"
TO FINISHED FLOOR
(OPTIONAL)
37-5/16"
MTG. HOLE
REFERENCE
1
REMOVE EXISTING
SHOWER HEAD
Using an adjustable wrench or channel
locks, remove the existing Shower Head,
Arm and Flange (1) by turning
counter-clockwise.
1
Adjustable Wrench
Channel Locks
11-3/4 MAX."
3"
6-1/4 MIN."
3-5/8"
38-1/8"
9-3/4"
UP AND DOWN
ADJUSTMENT
2

INSTALL PIPE NIPPLE

Figure 1. Apply Teflon tape (provided) to the end of the PIPE NIPPLE (1).
Figure 2. Thread PIPE NIPPLE (1) into elbow fitting, using adjustable wrench
and tighten. Then, using a hacksaw, cut off excess PIPE NIPPLE (1) at the 3rd
groove from the finished wall. Discard the excess pipe and remove any burrs and
debris from the nipple.
Figure 3 . Install O-RING (2) into groove next to finished wall. One extra
O-RING (2) is provided in parts bag.
FINISHED WALL
1
Teflon
Tape
Figure 1
Installation
Instructions
6035
Tools required for installation:
25-7/8" Tape
Measure
4-3/8"
1/2" NPT
Hacksaw
EXCESS PIPE
NIPPLE
MAKE CUT AT 3rd
GROOVE FROM
FINISHED WALL
Figure 2
Certified to comply with ANSI A112.18.1M
M 9 6 8 4 1 6 R E V 1 . 1
Phillips Screwdriver
Adjustable Wrench
10'
Hacksaw
5/16"
Drill Bit
Channel Locks
2
3 2 1
FINISHED
WALL
Drill
Figure 3
