Reference • Appendix B
System 5cr cr cr cr cr Options

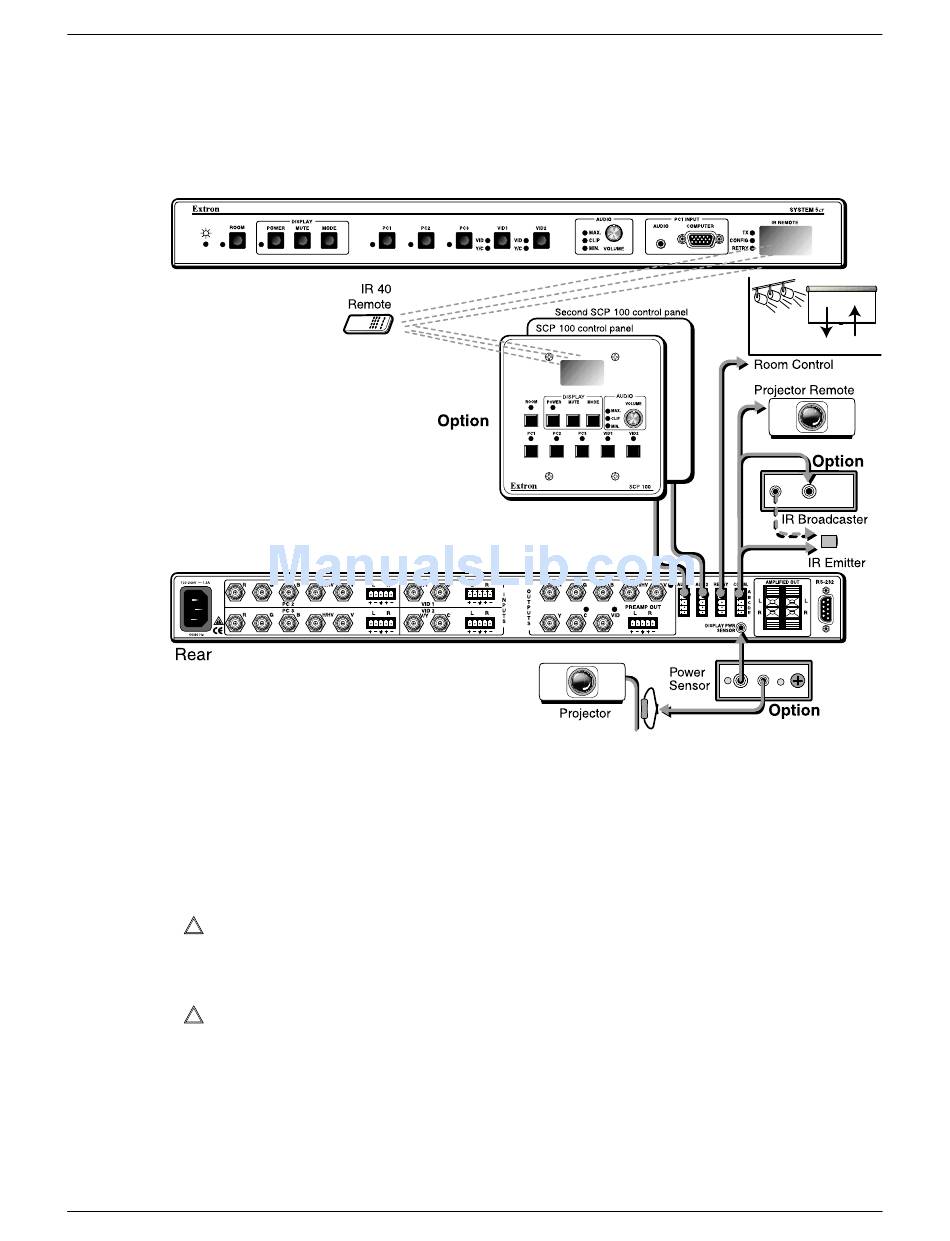

Figure B-1. The options connectors are located to the right side of the rear panel.
________ When connecting a Power Sensor or IR Broadcaster, remember that the
________ Do not plug any other devices into the rear panel connectors, except
B-1
Figure B-1 illustrates the options and accessories that operate with the
System 5. The standard accessories installation is covered in Chapter 2
and each option has its own User's Guide. This section summarizes the
three options: SCP 100, IR Broadcaster and Display Power Sensor.
All of the necessary connectors are provided with the products, but cables
must be custom made according to the requirements of the installation.
The Display Power Sensor is also shown in Figure B-1. Its cable is one-
to-one, ring = signal, tip = +12 volts and sleeve = ground. The optional IR
Broadcaster uses the same contact assignments.
System 5 supplies the +12 volts to the tip of the connector. Therefore the
cable should be plugged into the option device before connecting it to the
System 5 rear panel, where the voltage source is.
those described here.
For detailed instructions, see appropriate document.
• SCP 100 Control Pad, P/N 68-390-01
• Display Power Sensor, P/N 68-391-01
• IR Broadcaster, P/N 68-392-01
• IR Broadcaster with Emitter connector, P/N 68-392-02
