Select format for VID1 and/or VID2.

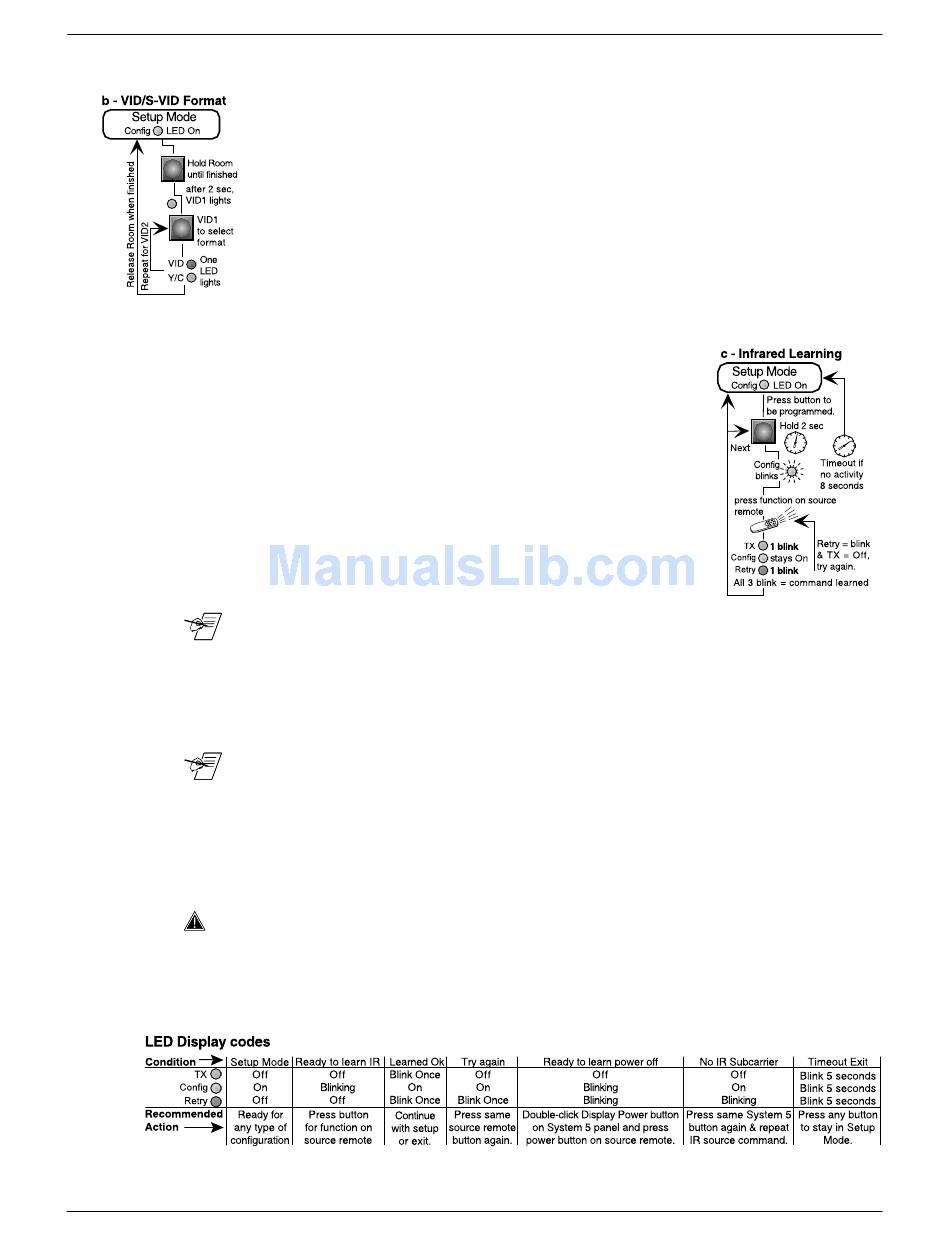

Figure 3-2c. Select input format for VID1 and VID2.

Learn Infrared Signals from other devices' remote controls

Figure 3-2d. Learn infrared signals from other remotes.
_______ It may be necessary to hold remote as near as 1/2 inch and point it
_______ The Display Power button learns 2 signals. After learning the 1st signal
________ Once the display device (projector) has been programmed to operate
Figure 3-2e. LED response codes
Extron • System 5 cr Switcher • User's Manual
To set these two inputs for either Composite or S-video, in Config Mode,
do the following:
1b. Press and hold the Room button until finished with this operation.
After 2 seconds, one of the VID1 LEDs lights.
2b. Press VID1 to toggle between VID (Video) and Y/C (S-video) formats.
3b. Repeat step 2b to select the format to set the format for the VID2 input.
4b. Release the Room button to go back to Config mode.
5b. While in Config mode, you may go directly to another procedure, wait for
20 second time-out or press all 3 Display buttons for 2 seconds to exit.
This procedure is only necessary if the IR driver is
not available for the system projector, or is not
complete. A flow chart of the learning procedure is
shown in Figure 3-2d and a table of LED codes is
shown in Figure 3-2e. In Setup Mode, do this:
1c. Press the panel button to be programmed and hold
it for 2 seconds. The Config LED blinks.
2c. Point the IR remote source at the System 5 IR
Remote window and press the button briefly, but
firmly, for the signal to be "learned".
directly into the IR window. It may also help to block out ambient light,
such as from fluorescent sources.
The Config LED remains On while TX & Retry LEDs flash to indicate
that the operation is complete. (If Retry blinks once and TX - Off, repeat
this step). See LED codes in Figure 3-2e below.
(e.g. Power On), the Config and Retry LEDs blink to indicate that it is
ready to learn the second signal (Power Off). Double-click the Power
button and repeat step 2c to learn the second signal.
3c. Repeat steps 1c and 2c to program the next button.
4c. While in Config mode, you may go directly to another procedure, wait for
20 second time-out or hold all 3 Display buttons for 2 seconds to exit.
from the System 5 cr, those same control functions should not be done
from the projector because the System 5 has no way of knowing what was
done at the projector. That is, if the projector was turned on at the
System 5 and turned off from the projector panel, the System 5 thinks the
projector is still on.
Chapter 3 • Operating the System 5cr
3-4
