Features
• One Piece Polypropylene Dustcap
• High Temperature 2 Inch OFC Voice Coils
• Long Throw Rubber Surround
• Optimized for Sealed or Vented Enclosures
• Rigid Powder Coated Steel Frame
• Nickel Plated 12 Gauge Speaker Terminals
• High Excursion Motor Design

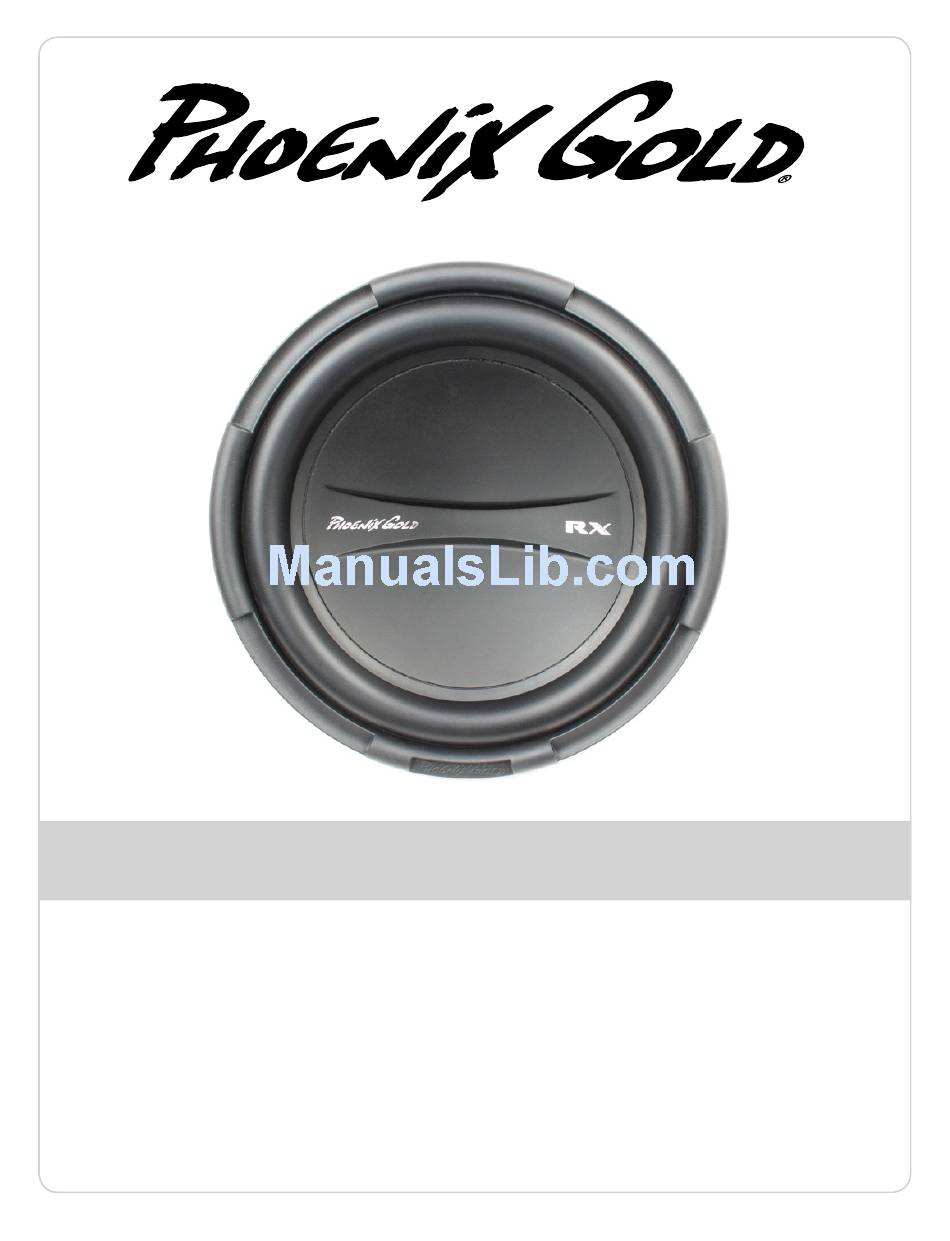

Subwoofer Manual
Manuel de subwoofer

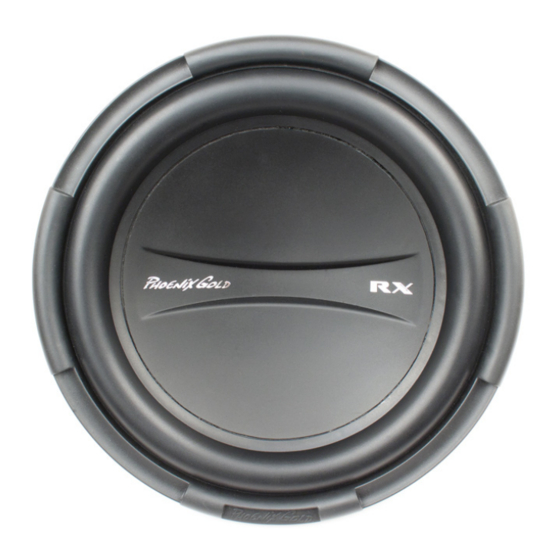

Models: RX110, RX110d, RX112, RX112d
Caractéristiques
• Pare-poussière monopièce
• Bobines acoustiques en cuivre exempt d'oxygène à haute température
• Enceinte d'ambiance avec contour en caoutchouc de longue portée
• Optimisé pour les boîtiers étanches ou porté
• Panier rigide en acier
• Bornes d'enceinte nickelées de calibre 12
• Modèle de moteur à grand battement
Phoenix Gold • www.phoenixgold.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Gold RX112D
Summary of Contents for Phoenix Gold RX112D
- Page 1 Subwoofer Manual Manuel de subwoofer Models: RX110, RX110d, RX112, RX112d Features Caractéristiques • One Piece Polypropylene Dustcap • Pare-poussière monopièce • High Temperature 2 Inch OFC Voice Coils • Bobines acoustiques en cuivre exempt d’oxygène à haute température • Long Throw Rubber Surround •...
- Page 2 ENCLOSURE INFORMATION Phoenix Gold subwoofers are overbuilt in virtually every way conceivable. It is important that the subwoofer’s enclosure is built to these same exacting standards. The enclosure must be constructed of at least .75 inch MDF. Screws or air staples are excellent construction fasteners when used with a strong bonding “yellow”...
- Page 3 Subwoofer Owner’s Manual system diagrams RX112d SINGLE SUBWOOFER SYSTEM Dual 4 ohm Subwoofer (wired in parallel) RX250.1 Speaker Terminal RX250.1 + (1) RX112d All voice coils are wired in parallel for 2 ohm load. RX250.1 makes maximum power into 2 ohm load.
- Page 4 LIMITED WARRANTY Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge.
