Omron M6 Instruction Manual

Omron M6 Instruction Manual

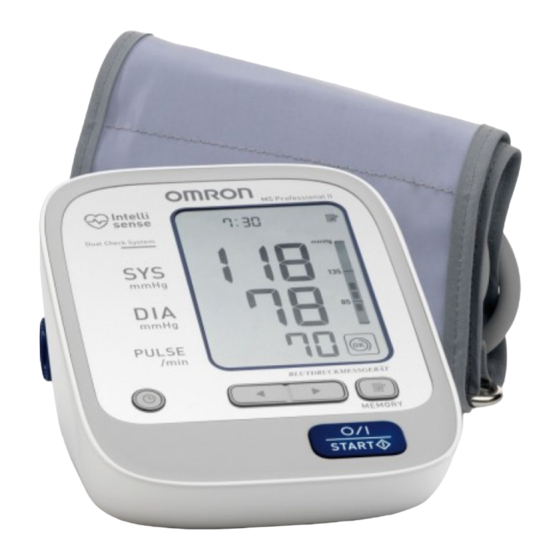

Automatic blood pressure monitor
Hide thumbs Also See for M6:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Manufacturer
OMRON HEALTHCARE Co., Ltd.
24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto
615-0084 JAPAN
EU-representative
OMRON HEALTHCARE EUROPE B.V.
Kruisweg 577, 2132 NA Hoofddorp, THE NETHERLANDS
www.omron-healthcare.com
Production facility
Oficina de producción
OMRON (DALIAN) CO., LTD.
Economic & Technical Development Zone
Site de production
Productiefaciliteit
Dalian 116600, CHINA
Produktionsstätte
Производственное подразделение
Stabilimento di produzione
Subsidiary
Empresa filial
OMRON HEALTHCARE UK LIMITED
Opal Drive, Fox Milne Milton Keynes, MK15 0DG U.K.
Succursale
Dochteronderneming
Niederlassung
Дочерняя компания
OMRON MEDIZINTECHNIK HANDELSGESELLSCHAFT mbH
Consociata
John-Deere-Str. 81a 68163 Mannheim, GERMANY
www.omron-medizintechnik.de
OMRON Santé France SAS
14, rue de Lisbonne 93561 Rosny-sous-Bois Cedex, FRANCE
Made in China
Fabriqué en Chine
Hergestellt in China
Prodotto in Cina
Automatic Blood Pressure Monitor
Model M6
Instruction Manual
Fabricado en China
Geproduceerd in China
Сделано в Китае
Check following components!
Vérifier les composants suivants !
Controleer de volgende onderdelen!
Prüfen Sie folgende Teile des Lieferumfangs!
Проверьте следующие компоненты!
Controllare i componenti indicati di seguito!
¡Compruebe los siguientes componentes!
English
Français
Deutsch
Italiano
Español
Nederlands
IM-HEM-7211-E-03-10/2010
5329521-0B

Advertisement

Table of Contents
loading

Related Manuals for Omron M6

Summary of Contents for Omron M6

  • Page 1 Controleer de volgende onderdelen! Prüfen Sie folgende Teile des Lieferumfangs! Проверьте следующие компоненты! Controllare i componenti indicati di seguito! Manufacturer OMRON HEALTHCARE Co., Ltd. ¡Compruebe los siguientes componentes! 24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto 615-0084 JAPAN EU-representative OMRON HEALTHCARE EUROPE B.V.

  • Page 2: Table Of Contents

    Contents Thank you for purchasing the OMRON M6 Automatic Blood Pressure Monitor. The OMRON M6 is a compact, fully automatic blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly. For comfortable controlled inflation without the need of pressure pre-setting or re-inflation the device uses its advanced “IntelliSense”...

  • Page 3: Important Safety Information

    Important Safety Information Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis. Please read this section carefully before using the unit. Warning: • Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. (General Usage) •...
  • Page 4 Important Safety Information (AC Adapter Usage) • Use only the original AC adapter (optional) designed for this unit. Use of unsupported adapters may damage and/or may be hazardous to the unit. • Plug the AC adapter into the appropriate voltage outlet. Do not use a multiple-tap. •...

  • Page 5: Overview

    1. Overview Open the rear cover page to read following: The alphabet in the rear cover page correspond to those in the body page. Main unit Display Display Date/Time display Memory button Dual Check System O/I START ( ) button Systolic blood pressure Up/Down ( ) buttons...

  • Page 6: Preparation

    2. Preparation 2.1 Installing/Replacing the Batteries Remove the battery cover. Insert four “AA” batteries as indicated in the battery compartment and then replace the battery cover. Notes: • If the battery low symbol ( ) appears on the display, turn the unit off then replace all batteries at the same time.

  • Page 7: Setting The Date And Time

    2. Preparation 2.2 Setting the Date and Time Press the button. Set the monitor to the correct date and time before taking a measurement for the first time. Push buttons to change. Push the button to confirm. Year Month Hour Minute Next setting appears.

  • Page 8: Using The Unit

    • The blood pressure can differ between the right arm and the left arm, and therefore also the measured blood pressure values can be different. Omron recommends to always use the same arm for measurement. If the values between the two arms differ substantially, please check with your physician...

  • Page 9: How To Sit Correctly

    3. Using the Unit 3.2 How to Sit Correctly To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. No bathing, drinking alcohol or caffeine, smoking, exercising or eating 30 minutes before taking a measurement. •...

  • Page 10: Taking A Reading

    3. Using the Unit 3.3 Taking a Reading Notes: • To cancel a measurement, press the O/I START button to turn the unit off and to release the air in the arm cuff. • Remain still while taking a measurement. Press the O/I START button.
  • Page 11 3. Using the Unit Dual Check System Press the O/I START button, then the Dual Check System lamp lights and the unit starts detecting a device error. If the unit is accurate and functioning correctly, the Dual Check System lamp remains lit during the measurement.
  • Page 12 3. Using the Unit • Your blood pressure monitor includes an irregular heartbeat feature. Irregular heartbeats can influence the results of the measurement. The irregular heartbeat algorithm automatically determines if the measurement is usable or needs to be repeated. If the measurement results are affected by irregular heartbeats but the result is valid, the result is shown together with the irregular heartbeat symbol ( ).

  • Page 13: Using The Memory Function

    3. Using the Unit 3.4 Using the Memory Function The monitor automatically stores the result up to 90 sets. It can also calculate an average reading based on the measurements from the last three readings taken within 10 minutes. If there are only two readings in memory for that period, the average will be based on two readings.
  • Page 14 3. Using the Unit To View the Readings Stored in Memory Press the button, while the average value is displayed. The Memory number appears for a second Alternating date/ before the pulse rate is displayed. The newest time display set is numbered “1”. Press the button to view the readings stored in memory.

  • Page 15: Troubleshooting And Maintenance

    4. Troubleshooting and Maintenance 4.1 The Icons and Error Messages Error Display Cause Remedy Remove the arm cuff. Wait 2-3 minutes and then take another measurement. Irregular heartbeats are detected. Repeat the steps in section 3.3. If this error continues to appear, contact your doctor. Carefully read and repeat the steps in section Movement during measurement.
  • Page 16 Repeat measurement. Remain still and do not talk during measurement. Movement during measurement. Refer to section 3.3. Remove any clothing interfering with the arm cuff. Clothing is interfering with the arm cuff. Refer to section 3.1. Device error. Contact your Omron retail outlet or distributor.

  • Page 17: Troubleshooting

    4. Troubleshooting and Maintenance 4.2 Troubleshooting Problem Cause Remedy Apply the arm cuff correctly. Arm cuff not applied correctly. Refer to section 3.1. Remain still and do not talk during Movement or talking during measurement. The reading is extremely low (or measurement.
  • Page 18 Refer to section 2.1. • Press the O/I START button and repeat measurement. • If the problem continues, try replacing the batteries with new ones. Other problems. If this still does not solve the problem, contact your OMRON retail outlet or distributor.

  • Page 19: Maintenance

    • Do not use petrol, thinners or similar solvents to clean the arm cuff. • Do not carry out repairs of any kind yourself. If a defect occurs, consult your OMRON retail outlet or distributor as mentioned on the packaging.

  • Page 20: Storage

    4. Troubleshooting and Maintenance 4.4 Storage Keep the unit in its storage case when not in use. Unplug the air plug from the air jack. Gently fold the air tube into the arm cuff. Note: Do not bend the air tube excessively. Place the arm cuff and main unit in the storage case.

  • Page 21: Optional Parts

    5. Optional Parts Medium Arm Cuff Large Arm Cuff Small Arm Cuff AC Adapter S Arm circumference Arm circumference Arm circumference 22 - 32 cm 32 - 42 cm 17 - 22 cm CL2-9513255-8 CS-4997067-0 Adapter S-9515336-9 CM2-9513256-6 (Model: HEM-CR24) (Model: HEM-CL24) CM1-9997578-9 CL1-9996760-3...

  • Page 22: Technical Data

    6. Technical Data Product Description Automatic Blood Pressure Monitor Model OMRON M6 (HEM-7211-E / HEM-7211-E8) Display LCD Digital Display Measurement Method Oscillometric method Measurement Range Pressure: 0 to 299 mmHg Pulse: 40 to 180/min. Pressure: ±3 mmHg Accuracy Pulse: ± 5% of display reading...
  • Page 23 Part 1: General Requirements and Part 3: Supplementary requirements for electromechanical blood pressure measuring systems. • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood pressure monitors, which is the...

  • Page 24: Correct Disposal Of This Product

    EN60601-1-2:2007 standard has been implemented. This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions.

  • Page 25: Some Useful Information About Blood Pressure

    7. Some Useful Information about Blood Pressure What is Blood Pressure? Blood pressure is a measure of the force of blood flowing against the walls of the arteries. Arterial blood pressure is constantly changing during the course of the heart’s cycle. The highest pressure in the cycle is called the Systolic Blood Pressure;...
  • Page 26 7. Some Useful Information about Blood Pressure Why is it a Good Thing to measure Blood Pressure at Home? Many factors such as physical activity, Upper curve: systolic blood pressure anxiety, or the time of day, can Lower curve: diastolic blood pressure influence your blood pressure.
  • Page 27 7. Some Useful Information about Blood Pressure Classification of Blood Pressure by the World Health Organization The World Health Organization (WHO) and the Systolic blood pressure International Society of Hypertension (ISH) developed (mmHg) the Blood Pressure Classification shown in this figure. Severe hypertension This classification is based on the blood pressure Moderate hypertension...
