Turbo Air Speed up the Pace of Innovation

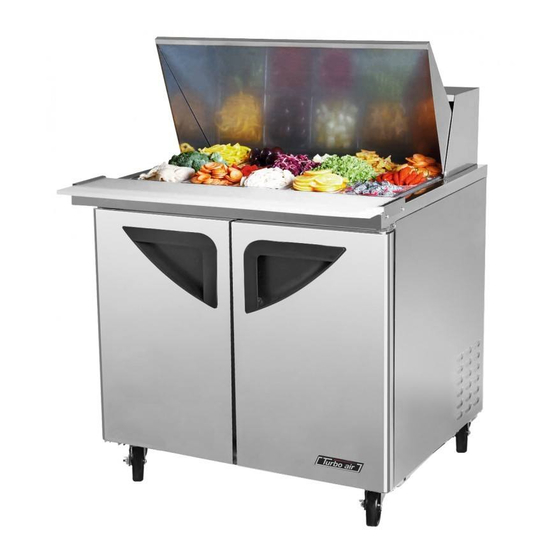

Mego Top Sandwich Salad Unit
Refrigerator
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
REFRIGERATOR
TST-28SD-12
TST-36SD-15
TST-48SD-18
TST-60SD-24
TST-72SD-30
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
Full Stainless Steel Visible Exterior
Advertisement
Related Manuals for Turbo Air TST-36SD-15
Summary of Contents for Turbo Air TST-36SD-15
- Page 1 CAUTION! PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THIS EQUIPMENT Turbo Air Speed up the Pace of Innovation Mego Top Sandwich Salad Unit Refrigerator Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment!
- Page 2 STAINLESS STEEL EQUIPMENT CARE AND CLEANING 10-11 WARRANTY 12-14 SPECIFICATIONS SANDWICH / SALAD UNITS MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT TST-28SD-12 115V/60Hz R-134A 6.6A 220lbs TST-36SD-15 115V/60Hz R-134A 6.6A 242lbs TST-48SD-18 115V/60Hz R-134A 6.5A 264lbs TST-60SD-24 115V/60Hz R-134A 8.9A 352lbs TST-72SD-30 115V/60Hz R-134A 9.9A...
- Page 3 INSTALLATION OF CASTERS 1) Screw the caster (in rear side) and the caster brakes (in front side) by using caster wrench. 2) Use the caster shims to level the cabinet, if necessary, by inserting them to stems of the casters.
- Page 4 INSTALLATION OF DRAIN PAN 1) In damp season, when the drain water overflow the drain pan, remove the drain pan and pour the water away. And then set the drain pan back up as below drawing please. (Model : TST-28SD, TST-28SD-12, TUR-28SD) 2) When the drain pan install on the compressor mounted base, lift up the vaporizing pipe a bit as below drawing.
- Page 5 HOW TO CLEAN THE PAN SUPPORTER 1) Remove the Guide Pans and Pans. Then pull out the Pan Supporter. Clean the pan supporter and reinstall in place.
- Page 6 CLEANING Before cleaning, turn unit off at power switch. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap. - Do not use an abrasive cleaner because it will scratch the surface. 2.
- Page 7 - Be sure that there is ample air space so that air can flow through the rear of the unit. - Turbo Air recommends that the rear of the unit be no less than 5 inches from the wall. 2. PLACE ON STRONG GROUND - Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents.
- Page 8 BASIC OPERATION REFRIGERATORS 1. The controller(thermostat) is located at the right inside of the unit. 2. The factory setting for the control is ‘Normal’ 3. Set toward ‘Cool’ for higher temperature and ‘Cold’ for lower temperature. NORMAL COLD Temperature Controller (Thermostat) 4.
- Page 9 BEFORE REQUESTING SERVICE SYMPTOMS CAUSES SOLUTIONS Refrigerator(Freezer) • The setting temperature is too • Turn the temperature dial to a is freezing(melting) low(high) to maintain food warmer(colder) setting. food. freshness. The unit does not • There is a power connection •...
- Page 10 STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. Stainless Steel Opponents There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to rear its ugly head.
- Page 11 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.
- Page 12 THREE YEAR WARRANTY Turbo air warrants to the original purchaser of every new Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of three (3) year from the date of original installation or 39 months after shipment date from Turbo air , whichever occurs first.
- Page 13 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
- Page 14 (3) year from the date of original installation or 39 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within three (3) year of original installation or thirty-nine (39) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
