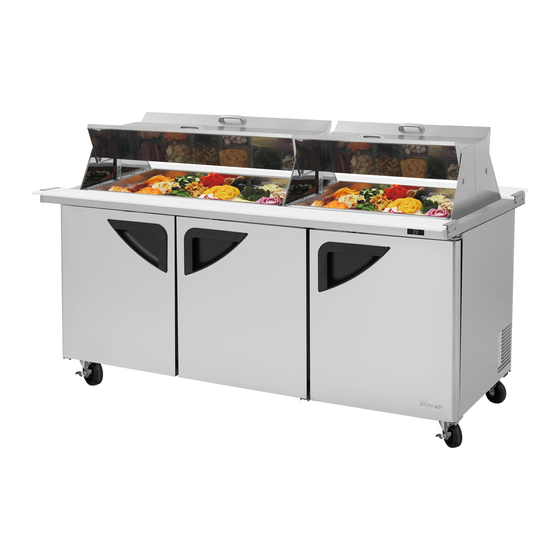

Sandwich salad unit under counter refrigerator
Hide thumbs Also See for TUR-60SD:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual

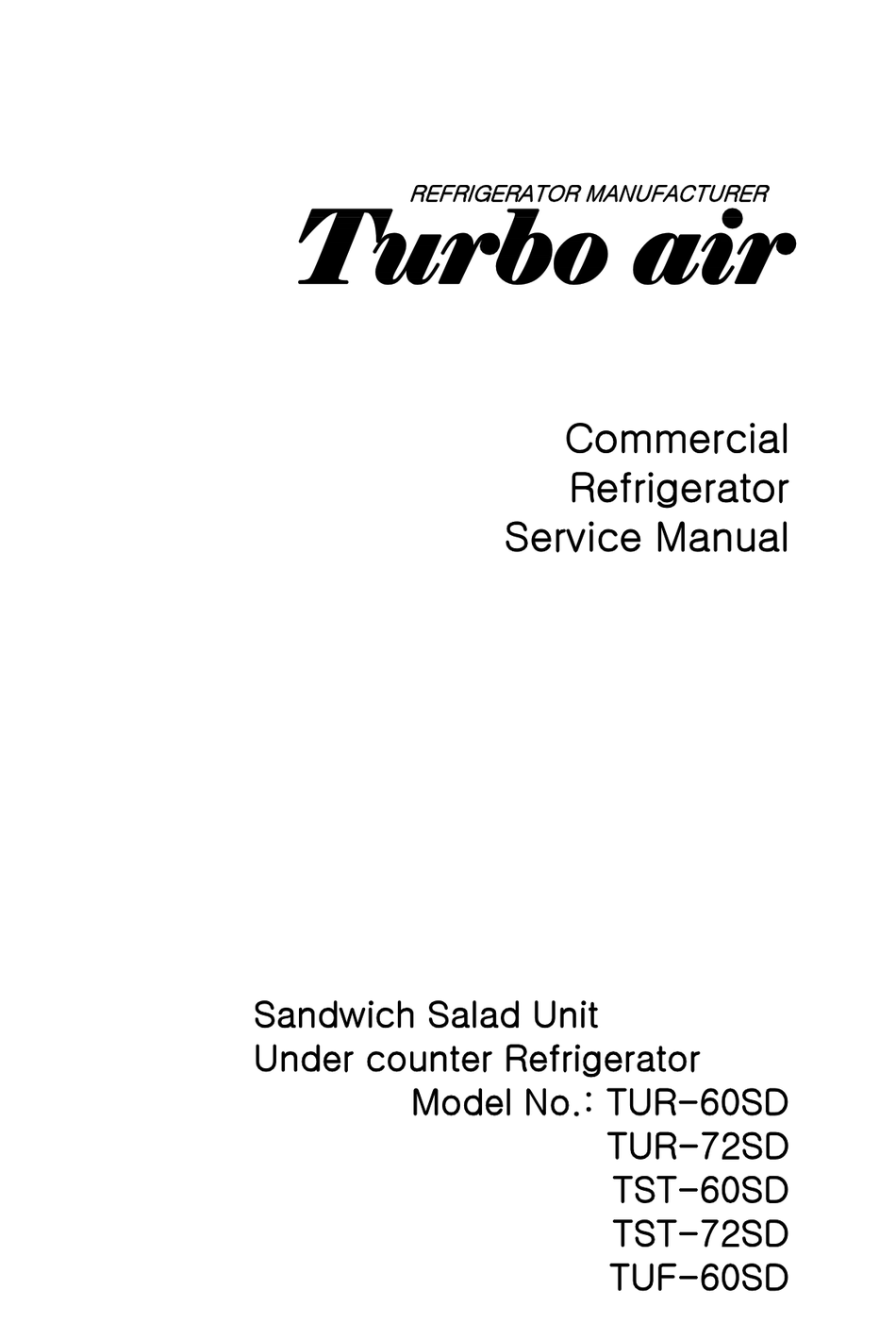

REFRIGERATOR MANUFACTURER
Turbo air
T
Sandwich Salad Unit
Under counter Refrigerator
Model No.: TUR-60SD
b
i
Commercial
Commercial
Refrigerator
Service Manual
TUR 72SD
TUR-72SD
TST-60SD
TST-72SD
TUF-60SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUR-60SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbo Air TUR-60SD

Summary of Contents for Turbo Air TUR-60SD

  • Page 1 REFRIGERATOR MANUFACTURER Turbo air Commercial Commercial Refrigerator Service Manual Sandwich Salad Unit Under counter Refrigerator Model No.: TUR-60SD TUR-72SD TUR 72SD TST-60SD TST-72SD TUF-60SD...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURE CHART 1-1. FRONT VIEW/SIDE VIEW(TUR-60SD) 1-2. FRONT VIEW/SIDE VIEW(TUR-72SD) 1-3. FRONT VIEW/SIDE VIEW(TST-60SD) 1-4. FRONT VIEW/SIDE VIEW(TST-72SD) 1-5. FRONT VIEW/SIDE VIEW(TUF-60SD) 2. WIRING DIAGRAM 2-1. TUR-60SD 2-2. TUR-72SD 2-3. TST-60SD 2-4. TST-72SD 2-5. TUF-60SD 3. PART DETAILS 3-1.

  • Page 3: Feature Chart

    1. FEATURE CHART 1-1. FRONT VIEV/SIDE VIEW(TUR-60SD) FRONT VIEW 1. COUNTER TOP 2 DOOR 2. DOOR 3. DOOR HANLE 4. SUPPORTER MIDDLE(A) 5. SUPPORTER MIDDLE(B) 6. LOUVER 7. SHELF(RIGHT) 8. SHELF STANDARD 9. CABINET 10. CASTER (with brake) 11. LINER 12.

  • Page 4: Front View/Side View(Tur-72Sd)

    FEATURE CHART 1-2. FRONT VIEW/SIDE VIEW(TUR-72SD) FRONT VIEW 1. COUNTER TOP 2 DOOR 2. DOOR 3. DOOR HANDLE 4. SUPPORTER MIDDLE(A) 5. SUPPORTER MIDDLE(B) 6. LOUVER 7. SHELF(RIGHT) 8. SHELF STANDARD 9. CABINET 10. CASTER (with brake) 11. LINER 12. SHELF CLIP 13.

  • Page 5: Front View/Side View(Tst-60Sd)

    FEATURE CHART 1-3. FRONT VIEW/SIDE VIEW(TST-60SD) FRONT VIEW 1. COUNTER TOP 2 DOOR 2. DOOR 3. DOOR HANDLE 4. SUPPORTER MIDDLE(A) 5. SUPPORTER MIDDLE(B) 6. LOUVER 7. SHELF(RIGHT) 8. SHELF STANDARD 9. CABINET 10. CASTER (with brake) 11. LINER 12. DOOR GASKET 13.

  • Page 6: Front View/Side View(Tst-72Sd)

    FEATURE CHART 1-4. FRONT VIEW/SIDE VIEW(TST-72SD) FRONT VIEW 1. COUNTER TOP 2 DOOR 2. DOOR 3. DOOR HANDLE 4. SUPPORTER MIDDLE(A) 5. SUPPORTER MIDDLE(B) 6. LOUVER 7. SHELF(RIGHT) 8. SHELF STANDARD 9. CABINET 10. CASTER (with brake) 11. LINER 12. DOOR GASKET 13.
  • Page 7 FEATURE CHART 1-5. FRONT VIEV/SIDE VIEW(TUF-60SD) FRONT VIEW 1. COUNTER TOP 2 DOOR 2. DOOR 3. DOOR HANDLE 4. SUPPORTER MIDDLE(A) 5. SUPPORTER MIDDLE(B) 6. LOUVER 7. SHELF(RIGHT) 8. SHELF STANDARD 9. CABINET 10. CASTER (with brake) 11. CASTER 12. LAMP 13.

  • Page 8: Wiring Diagram

    2. WIRING DIAGRAM 2-1. TUR-60SD 2-2. TUR-72SD...

  • Page 9: Tst-60Sd

    WIRING DIAGRAM 2-3. TST-60SD 2-4. TST-72SD...

  • Page 10: Tuf-60Sd

    WIRING DIAGRAM 2-5. TUF-60SD...

  • Page 11: Part Details

    3. PART DETAILS 3-1. COMPRESSOR COMPARTMENT TUR-60SD CONDENSING UNIT ASSEMBLY TST-60SD TUR-72SD CONDENSING UNIT ASSEMBLY TST-72SD CONDENSING UNIT ASSEMBLY TUF-60SD...
  • Page 12 PART DETAILS CONDENSING FAN MOTOR ASSEMBLY TST-60SD TUR-60SD TUR-72SD CONDENSING FAN MOTOR ASSEMBLY TST-72SD...
  • Page 13 PART DETAILS TUF-60SD CONDENSING FAN MOTOR ASSEMBLY...

  • Page 14: Door

    PART DETAILS 3-2 DOOR 3 2. DOOR DOOR GASKET 3-3. REFRIGERATION COMPARTMENT DUCT LOUVER...
  • Page 15 PART DETAILS EVAPORATOR FAN MOTOR EVAPORATOR FAN MOTOR (TUR-60SD, TST-60SD, TUF-60SD) (TUR-72SD, TST-72SD) THERMOSTAT THERMOSTAT TUBE(TUR-60SD, THERMOSTAT(TUF-60SD) TST-60SD, TUR-72SD, TST-72SD) ELECTRIC PARTS OF TUF-60SD EVAPORATOR DEFROST(SHEATH) HEATER BI-METAL THERMAL FUSE...

  • Page 16: Main Components

    4. MAIN COMPONENTS 1. COMPRESSOR HORSE TYPE OF Current MODEL PART NAME PART NO. CAPACITY MAKET (RLA) POWER MOTOR 896 BTU/h TUR-60SD HBL27YE-1 3952127G10 1/4 HP 3.7A DAEWOO (226 Kcal/h) TUR-72SD 4,440 BTU/h SK6A1C-H2Y 3020014540 1/3 HP 6.5A SAMSUNG TST-60SD...
  • Page 17 MAKER MAKER TUF-60SD TUR-72SD TST-60SD DAI-6202DEUA 3963339930 ZYTEL 4 110mm DAEYOUNG TST-72SD TUF-60SD 6. SWITCH SWITCH PART NAME PART NO. RATING MAKER MODEL POWER SWITCH R19A 30281Q0101 TST/ TUR-60SD THERMOSTAT GNA-240L-4 30283F0800 SHINHAN TST/ TUR-72SD THERMOSTAT GNA-106D-06A 30283M0800 SHINHAN TUF-60SD...

  • Page 18: Temperature Control Instruction

    Cool Normal Normal Cold Cold GNA-240L-4 Cut in 42.8 37.4 Cut out 27.5 19.4 12.2 TUR-60SD, TST-60SD, TUR-72SD, TST-60SD Thermostat ■ Cut in and out temperature chart. ℉ Setting Setting Cool Cool Normal Normal Cold Cold Cut in -1.3 -3.1...

  • Page 19: Parts List

    6. PARTS LIST FOR SALAD & UNDERCOUNTER MODEL Model Part Part name Description Code TUR-60SD TUR-72SD TST-60SD TST-72SD TUF-60SD Cabinet CABINET ASSEMBLY 30200U2201 STS443CT-NO4 CABINET ASSEMBLY 30208T0101 STS443CT-NO4 CABINET ASSEMBLY 30200U2101 STS443CT-NO4 CABINET ASSEMBLY 30208T0111 STS443CT-NO4 CABINET ASSEMBLY 30200U2210 STS443CT-NO4...
  • Page 20 PARTS LIST FOR SALAD & UNDERCOUNTER MODEL Model Part Part name Description Code TUR-60SD TUR-72SD TST-60SD TST-72SD TUF-60SD COMPRESSOR BASE 30203T0401 SBHG, T1.6 COMPRESSOR BASE 30203U0410 SBHG, T1.6 COMPRESSOR 3952127G10 HBL27YE-1 COMPRESSOR 3020014540 SK6A1C-H2Y COMPRESSOR 30200B4500 CAE4456Y(115V/60Hz) COMPRESSOR 30200R1100 CAE2420Z...
  • Page 21 PARTS LIST FOR SALAD & UNDERCOUNTER MODEL Model Part name Part Code Description TUR- TUR- TST- TST- TUF- 60SD 72SD 60SD 72SD 60SD Refrigeration compartment CUTTING BOARD 30241U0700 LD-PE/0.5"(Thickness) CUTTING BOARD 30241T0100 LD-PE/0.5"(Thickness) CUTTING BOARD 30206P1900 STS304-2B BRACKET CUTTING BOARD 7S105A0564 FITTING SCREW MULLION HEATER...
  • Page 22 PARTS LIST FOR SALAD & UNDERCOUNTER MODEL Model Part Part name Description Code TUR-60SD TUR-72SD TST-60SD TST-72SD TUF-60SD STS443CT- BRACKET PAN DUCT 30206T0601 2B/0.025"(Thickness) EVAPORATOR FAN BLADE 3011802400 CCW/Φ4.33"(Diameter) EVAPORATOR FAN MOTOR 30220T0300 STS304-2B FIXTURE SHELF STANDARD 30220M0300 STS304-3B/L=256mm SHELF STANDARD...

  • Page 23: Replacement Of Main Components

    7. REPLACEMENT OF MAIN COMPONENTS 7-1. REPLACING DOOR A. Unscrew the door hinge top B. Lift the door...
  • Page 24 REPLACEMENT OF MAIN COMPONENTS 7-2. REFRIGERATION COMPARTMENT PARTS A. Disassemble the pan duct (for TST-60SD, TST-72SD) B. Disassemble the louver C. Replace the thermostat & sensor...
  • Page 25 REPLACEMENT OF MAIN COMPONENTS D Di D. Disassemble the duct E. Remove the Evaporator coil F. Disassemble the evaporator fan motor...
  • Page 26 REPLACEMENT OF MAIN COMPONENTS 7-3. COMPRESSOR COMPARTMENT PARTS A. Disassemble the rear grill B. Disassemble the condensing unit Unscrew two screws as above. Pull out the condensing unit. C. Disconnect the connectors...
  • Page 27 REPLACEMENT OF MAIN COMPONENTS D Di D. Disassemble the condensing fan motor...
  • Page 28 REPLACEMENT OF MAIN COMPONENTS 7-4. Replacing the Evaporator & Evaporator fan motor A. Remove the pans & pan duct (TST-60SD, TST-72D) B. Unscrew the screws located on up and down of the shelf standard C. Remove the PAN SUPPORT FRAME (TST-60SD, TST-72SD)
  • Page 29 REPLACEMENT OF MAIN COMPONENTS D. Unscrew the screws located on top and bottom of the pan duct (TST-60SD, TST-72D) E. Take out pan duct through the upper hole...
  • Page 30 REPLACEMENT OF MAIN COMPONENTS F. Unscrew the screws located on left and right side of the louver G. Take out pan louver through the upper hole H. Unscrew the screws located on both sides and top of the duct & louver fixture.
  • Page 31 REPLACEMENT OF MAIN COMPONENTS I. And then, you can replace fan motor, evaporator coil and thermostat.
  • Page 32 REPLACEMENT OF MAIN COMPONENTS 7-5. TUF-60SD TERMINAL BOX PARTS A. Remove the rear grill B. Unscrew the terminal box C. Unscrew the terminal box Power Relay Defrost Timer...
  • Page 33 REPLACEMENT OF MAIN COMPONENTS 7-6. REPLACEMENT DOOR SWITCH AND POWER SWITCH (TUF-60SD) A. Disassemble door switch bracket. B. Disconnect receptacle and connector C. Replace the door switch and power switch...
