Owner's Manual

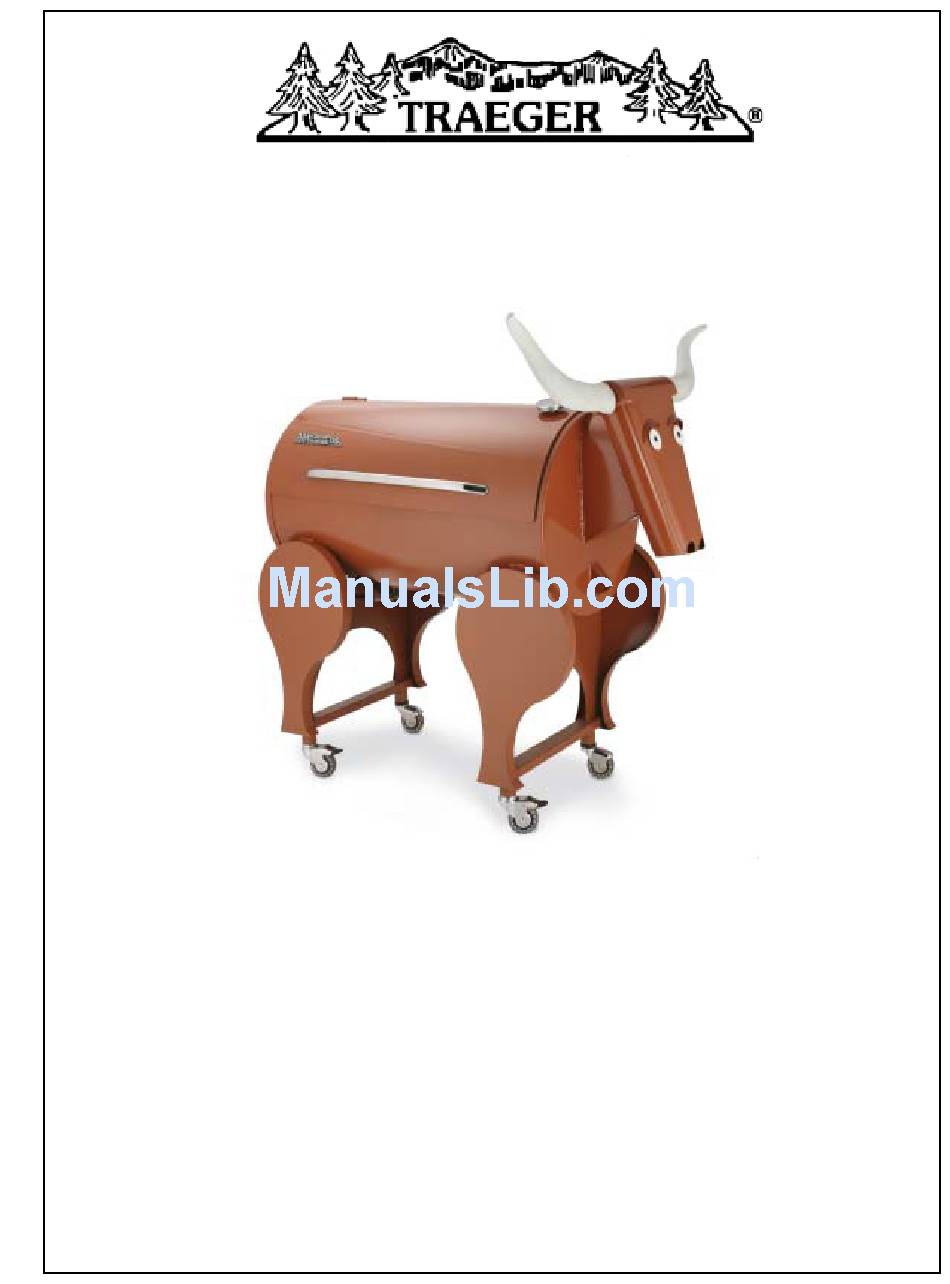

OWNER'S MANUAL
BBQLHS
Residential Pellet Grill
This grill is protected under patent #4,823,684
FOR OUTDOOR USE ONLY!
WARNING!
DO NOT STORE OR USE NEAR GASOLINE OR OTHER FLAM-
MABLE OR COMBUSTABLE LIQUIDS IN THE VACINITY OF THIS
APPLIANCE! USE ONLY TRAEGER BRAND BBQ PELLETS IN THE
OPERATION OF THIS UNIT.
Advertisement
Table of Contents
Related Manuals for Traeger BBQLHS
Summary of Contents for Traeger BBQLHS
- Page 1 This grill is protected under patent #4,823,684 FOR OUTDOOR USE ONLY! WARNING! DO NOT STORE OR USE NEAR GASOLINE OR OTHER FLAM- MABLE OR COMBUSTABLE LIQUIDS IN THE VACINITY OF THIS APPLIANCE! USE ONLY TRAEGER BRAND BBQ PELLETS IN THE OPERATION OF THIS UNIT.
- Page 2 INTRODUCTION Congratulations on the purchase of your Traeger Pellet Fired Grill, Model BBQLHS. With proper set-up, operation, and maintenance, this grill will provide years of delicious food and cooking enjoyment. Your new BBQLHS comes partially assembled. You will need to complete the assembly process by: 1) Installing the four VIPER casters on the steer’s feet (16)
- Page 3 (15), the U-shaped firepot cover (4) and the angled drip pan (6) from the inside of the BBQLHS. Pick up the U-shaped firepot cover (4) and position it so that it rests directly over the firepot (10) in the support brackets located on the inside walls of the cooking chamber.
- Page 4 Short end of Long end of drip pan drip pan Drip pan U-shaped Firepot support bar Auger Tube Firepot V shaped grease catch Positioning The Porcelain Grill(s): Now set the porcelain coated grill (3) in place on the indented lip that runs the length of the cooking area.
- Page 5 5 minutes for the pellets to travel from the hopper to the firepot. When the pellets begin to fall into the firepot, Turn the power switch off. WARNING! USE ONLY TRAEGER OR SMITH & WESSON BRAND BBQ PELLETS, which are specifically made to work in our grills.
- Page 6 SECTION FOUR: OPERATING TIPS 1) Your Traeger Pellet Grill should never be moved while it is hot. If you are transporting your grill in a vehicle after cooking on it, make sure the fire is completely out and the unit is completely cold before placing it in any vehicle.
- Page 7 NOTE: When operating this barbecue, maintain a clearance of 10 inches from barbecue back to combustibles. SECTION FIVE: MAINTAINING YOUR NEW GRILL 1. Change the aluminum foil on the Angled drip pan after each use. Periodically clean the grease out of the V-channel grease catch, grease drain tube and interior surfaces of the barbecue.
- Page 8 Part names are given in the front of this manual on the COMPONENT DIAGRAM PAGE. To order parts: Find the part name on the component diagram page. Call or write your Authorized Traeger dealer, distributor or Traeger Industries. Give us your name, phone number, address, model and serial number of your unit.
