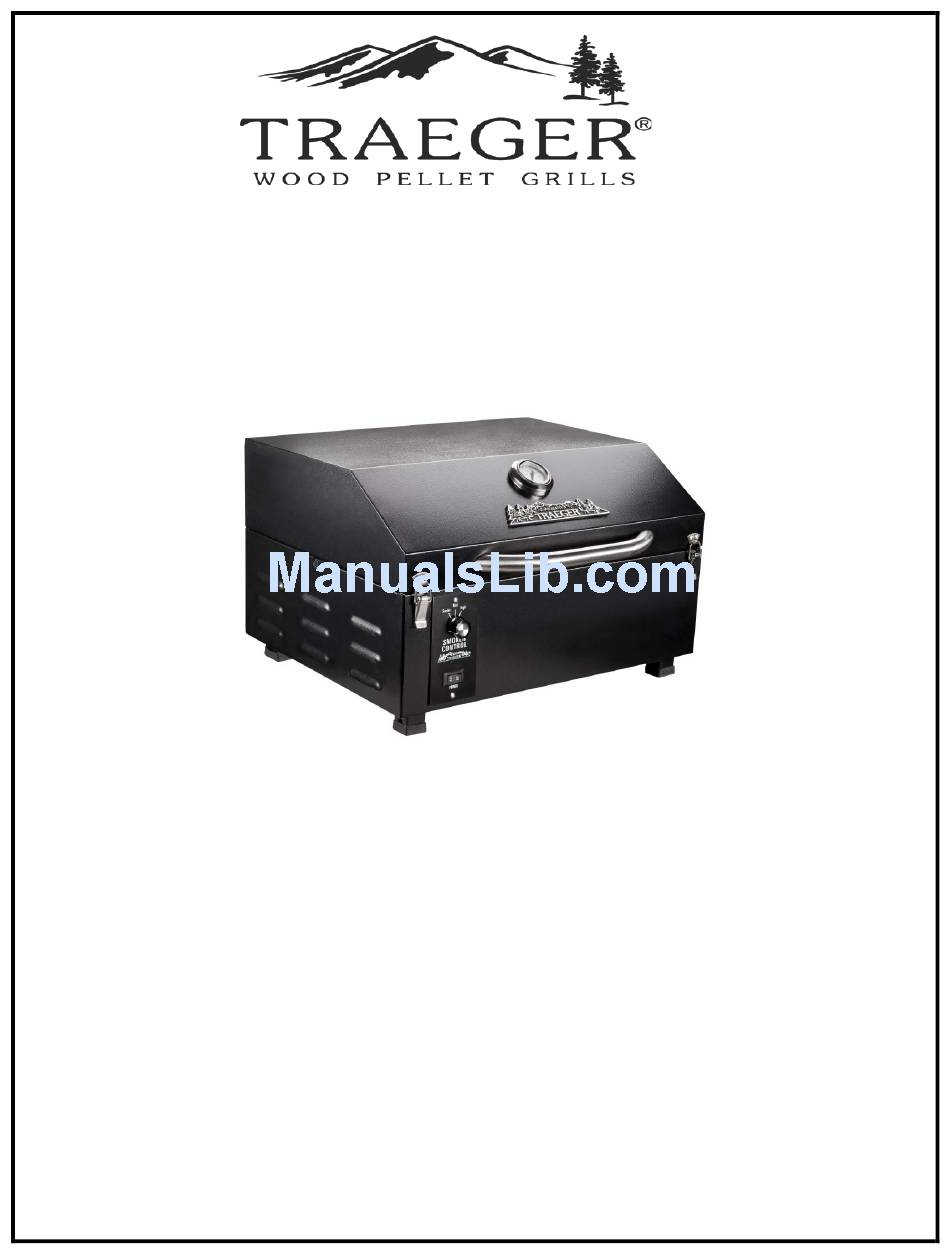

OWNER'S MANUAL
BBQ020
RESIDENTIAL PELLET GRILL-SMOKER
This Grill Protected Under Patent Number: 4,823,684
FOR OUTDOOR USE ONLY!
"TASTE THE DIFFERENCE"
Please read this entire manual before assembly, installation of your Traeger Pellet Grill. Failure to
follow these instructions could result in property damage, bodily injury or even death. Contact
your local building or fire official about restrictions and installation inspection requirements in
your area.
SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Traeger BBQ020
Summary of Contents for Traeger BBQ020
- Page 1 FOR OUTDOOR USE ONLY! “TASTE THE DIFFERENCE” Please read this entire manual before assembly, installation of your Traeger Pellet Grill. Failure to follow these instructions could result in property damage, bodily injury or even death. Contact your local building or fire official about restrictions and installation inspection requirements in your area.
- Page 2 WARNING! Use ONLY TRAEGER BRAND BBQ WOOD PELLETS, which are specifically made to work in our Grills. Traeger wood pellets are rated for 8500 BTU per LBS with an ash content of 2%. CAUTION! Always store wood pellets in a dry location, away from heat-producing appliances and other fuel containers.
- Page 3 INTRODUCTION Congratulations on your purchase of this Traeger Wood Pellet Grill, Model BBQ020. With proper set-up, operation and maintenance, the Grill will provide you with delicious food and years of cooking enjoyment. NOTE: NUMBERS FOLLOWING PART NAMES THROUGHOUT THIS MANUAL REFER TO THE COMPONENT DIAGRAM.
- Page 4 2. Then tighten the bolts till they are snug. Do Not Over Tighten The Bolts. INSTALLING THE DRIP PAN ASSEMBLY AND GRILL: 1. Insert the drip pan assembly (41) onto the inside of the BBQ020 body and insert into the body cutout.
- Page 5 DO NOT TOUCH IT! Turn the Switch to the OFF position. 4) Fill the Pellet Hopper with TRAEGER BBQ PELLETS. WARNING! USE ONLY TRAEGER BRAND BBQ PELLETS, which are specifically made to work in our Grills. NEVER use heating fuel pellets in the Grill.
- Page 6 Once the Hot Rod is disconnected, replace the Body Left Panel and plug the Power Cord back into an appropriate, grounded electrical outlet. 2) Open the Pellet Hopper and fill with TRAEGER BBQ PELLETS. WARNING! USE ONLY TRAEGER BRAND BBQ WOOD PELLETS, which are specifically made to work in our Grills.
- Page 7 The control for the BBQ020 comes with an automatic shut down cycle. When finished cooking on your BBQ020 set the Dial Knob to the Shut Down Cycle position, this will leave the Draft Induction Fan running for ten minutes to burn any excess pellets in the fire pot. After the fan runs for ten minutes the controller will power off and the fan and it will stop running.
- Page 8 3) If the Grill is stored outside during the rainy season, care should be taken to ensure that water does not get into the Pellet Hopper. Wood pellets, when wet, expand greatly and will jam you Auger. A TRAEGER GRILL COVER to protect the Grill is highly...
- Page 9 Covers are available from your local Traeger Dealer, or log on to our Web Site – www.traegergrills.com. 4) Depending on use, periodically remove the Porcelain Grill, Grease Drain Pan Assembly and clean the ash from in and around the Firepot. A shop-vac is handy for this chore. Make sure the Grill is COLD before starting this procedure.
- Page 10 Switch to the OFF position. This indicates a defective Auger Drive Motor and it will need to be replaced. Contact your Traeger Dealer or the Traeger Parts Department (SECTION SEVEN) to place an order.
- Page 11 3) Replace the Grease Drain Pan Assembly and the Porcelain Grill and initiate start-up procedure. 4) If this didn’t remedy the problem, contact Traeger Technical Support (SECTION SEVEN) for additional troubleshooting help. THE AUGER MAKES A LOT OF NOISE WHEN I TURN THE GRILL ON AND I HAVE NOTICED A DROP IN THE GRILL TEMPERATURE.
- Page 12 WHERE CAN I GET A NEW PART FOR MY GRILL? Check with your Traeger Dealer. They may have the part in stock or can order the part for you. Or you can contact the Traeger Parts Department (SECTION SEVEN) to place an order.
- Page 13 Parts are identified in the front of this manual on the COMPONENT DIAGRAM PAGE. To order parts: Call, E-mail or write to your Authorized Traeger Dealer or Traeger Pellet Grills. Please provide your name, phone number, address, Model and Serial Number of the Grill (located on a label inside the Hopper Lid), along with the part identification.
- Page 14 BBQ020 COMPONENTS LIST PAGE 1 0F 2...
- Page 15 BBQ020 LID COMPONENTS PAGE 2 OF 2...
- Page 16 NUT 6-32 HEX NYLOCK HDW111 AUGER DRIVE MOTOR BRN100 DRAFT INDUCER FAN ASSEMBLY FAN209 RUBBER FOOT COVER HDW175 CONTROL 3 WAY 120V BBQ020 BAC019 PORCELAIN GRILL GRATE HDW173 LID ASSEMBLY 020 SUB336 PUSH NUT HDW107 SCREW 8-32 X .375 PPHD ZINC...
