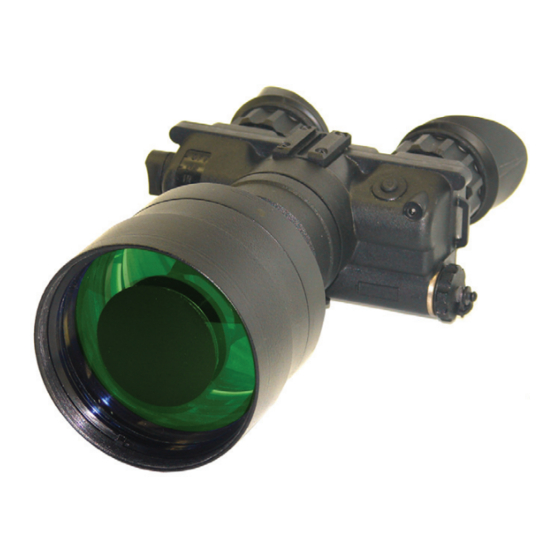

Newcon Optik NV66-G2-5x Operation Manual

Newcon Optik NV66-G2-5x Operation Manual

Night vision binoculars/binoculars

Advertisement

Quick Links

Operation Manual
NIGHT VISION BINOCULARS/BINOCULARS
NV66-G2-5x
105 Sparks Ave., Toronto, ON, M2H 2S5, Canada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV66-G2-5x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Newcon Optik NV66-G2-5x

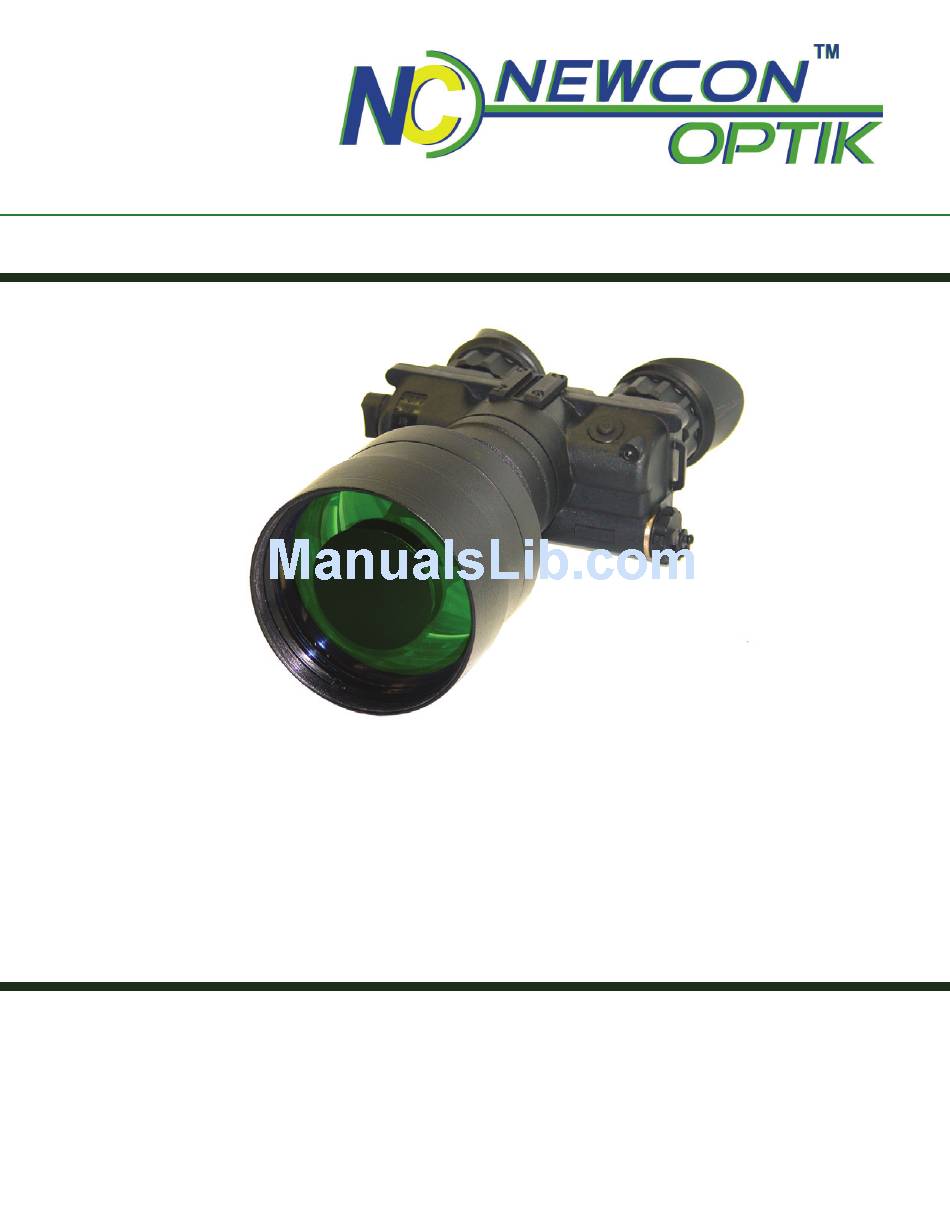

  • Page 1 Operation Manual NIGHT VISION BINOCULARS/BINOCULARS NV66-G2-5x 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...
  • Page 2 IMPORTANT INFORMATION Read prior to activation. You have purchased a sophisticated electronic device. To operate it properly, please read this manual carefully. Ignoring the operation procedures described in this manual will void your warranty.  NEVER disassemble the unit. This device contains a source of high voltage, which may be hazardous to your health.
  • Page 3 Precautions NV66-G2-5x is a sophisticated precise optical instrument equipped with electronics. It should be handled with due care:  Unit contains fragile components. Avoid impacts, dust, moisture and sharp changes of temperature.  Do not touch the optical surfaces other than for cleaning.
  • Page 4: Table Of Contents

    CONTENTS OVERVIEW ............. 3 DELIVERY SET ............4 Standard delivery set ............4 Optional accessories ............4 SPECIFICATIONS ..........5 Unit specifications ............5 Main tube parameters ............6 Spatial frequency-contrast characteristic ......6 Field of view cleanness ............ 7 UNIT DESIGN ............
  • Page 5 TROUBLESHOOTING ......... 12 No green light through eyepieces ........12 Image is unclear ............. 12 Image flashes ..............12 Condensation accumulates on the parts ......12 Visibility decreased or disappeared ....... 12 WARRANTY ............13 CUSTOMER SUPPORT ........14 ACCEPTANCE CERTIFICATE......15...
  • Page 6: Overview

    1. OVERVIEW NV66-G2-5x (the unit) is optoelectronic binocular intended for observation of objects and orientation at night or under dark conditions. The unit is equipped with a generation 2+ image intensifier tube, which amplifies low light, such as moonlight, starlight or man-made light.
  • Page 7: Delivery Set

    2. DELIVERY SET Standard delivery set QUANTITY Binocular configuration: NV66-G2-5x Lens cap Neck strap Soft case Manual AA battery Optional accessories Lens cleaning kit Hard case Exact Delivery Set is subject to the specific contract terms.
  • Page 8: Specifications

    3. SPECIFICATIONS Unit specifications 18 mm Image Intensifier Tube (IIT) Gen. 2+ Apparent field of view 8º Eye relief 15 mm 5x Objective focal length / F- 130 mm / F2.3 number Interpupillary distance 57-73 mm 10 m -  Focus range Dioptric correction ±5...
  • Page 9: Main Tube Parameters

    Main tube parameters Image Intensifier Type EPM66G2 (Generation/Grade) Photocathode operating diameter 18 mm Photocathode type S-25 Photocathode sensitivity: 450 A/ lm Integral Spectral at  = 850 nm 26 mA/W Light amplification >20,000 fl/fc Image magnification Signal-to-noise ratio, min Current consumption, max 18 mA Voltage 2.80.8 V...
  • Page 10: Field Of View Cleanness

    Field of view cleanness I ZONE II ZONE III ZONE Allowed spot 0 - 5, 6 5, 6 - 14,7 14,7 - 17, 5 diameter, m Over 250 150 to 250 100 to 150 50 to 100 0 to 50 Not specified...
  • Page 11: Unit Design

    4. UNIT DESIGN FIGURE 1 NV66-G2-5x 1. On-Off, IR switch 2. Mounting socket 3. Eyepiece adjustment ring 4. Eyepieces 5. Battery compartment cover 6. Objective lens...
  • Page 12: Operation Instructions

    5. OPERATION INSTRUCTIONS Installing battery Unpack the device. Unit is supplied with battery not installed. Prior to installing the battery, make sure the switch (1, Fig.1) is in the OFF position and the lens cap is on. Unscrew the battery compartment cover (5, Fig.1), and install 2 fresh AA batteries.
  • Page 13: Switching The Unit Off

    In the daytime with lens cap on it is normal to observe a fuzzy image. Switching on the unit device in the daytime is intended for testing purposes only. Switching the unit off After you have finished using the device, turn it off by rotating switch (1, Fig.1) to OFF position.
  • Page 14: Interpupillary Distance

    Interpupillary distance The unit is designed to accommodate interpupillary distance of 57-73 mm without any additional adjustment and should be comfortable for 99% of adults. Installation of interchangeable lenses Do not apply an excessive force when changing the lenses. 1. Make sure the unit is off. 2.
  • Page 15: Troubleshooting

    6. TROUBLESHOOTING No green light through eyepieces Check that the batteries are installed properly. Check the charge of the batteries. Replace them if they are weak. Image is unclear Check if the lenses are foggy or dusty. Clean them if necessary. If the image is still unfocused –...
  • Page 16: Warranty

    7. WARRANTY NEWCON warrants this product against defects in materials and workmanship for one year from the date of the original purchase. Longer warranty is available, subject to the terms of the specific sales contract. Should your Newcon product prove to be defective during this period, please deliver the product securely packaged in its original container or an equivalent, along with the proof of the original purchase date, to your Newcon Dealer.
  • Page 17: Customer Support

    8. CUSTOMER SUPPORT Should you experience any difficulties with your Newcon Optik product, consult this manual first. If the problem remains, contact our customer support department at +1(416) 663-6963 or toll free at 1-877-368-6666 (North America only). Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time.
  • Page 18: Acceptance Certificate

    9. ACCEPTANCE CERTIFICATE Image intensifier tube serial number: _____________________ Minimum Measured Resolution, lp/mm Photocathode sensitivity, integral, A/lm Light amplification 20000 Date of production:__________________________________ Quality Inspector’s signature: ___________________________...
  • Page 19 NIGHT VISION DEVICE NV66-G2-5x Unit serial number: ______________________________________________ The unit complies with all technical specifications and has passed the inspection. Date of production: ______________________________________________ Quality Inspector’s signature: ______________________________________________ Quality Assurance Seal...
  • Page 20 NEWCON OPTIK Printed in Canada...
