Install the Motherboard

Install the motherboard in a system chassis (case). The board is a
ATX size motherboard. You can install this motherboard in an ATX
case. Make sure your case has an I/O cover plate matching the
ports on this motherboard.
Install the motherboard in a case. Follow the case manufacturer's
instructions to use the hardware and internal mounting points on
the chassis.
PWR2
1
NB_FAN1
1
AUX_FAN1

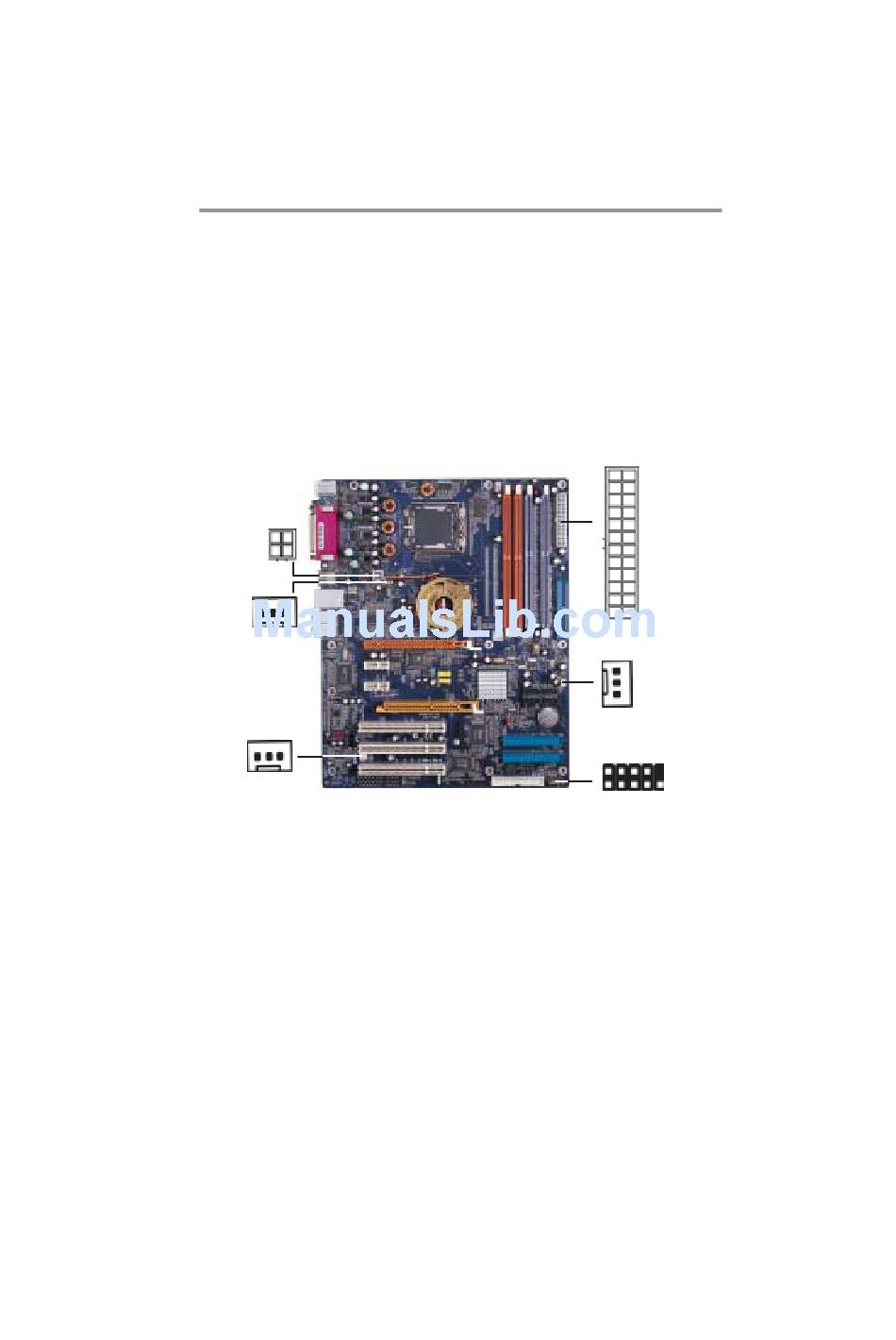

Connect the power connector from the power supply to the
PWR1 connector on the motherboard. The PWR2 is a +12V
connector for CPU Vcore power.
If there is a cooling fan installed in the system chassis, connect the
cable from the cooling fan to the CHS_FAN1 fan power connec-
tor on the motherboard.
Connect the Northbridge cooling fan connector to NB_FAN1.
Connect the auxiliary power supply cooling fan connector to
AUX_FAN1.
