Jumper Settings

Connecting two pins with a jumper cap is SHORT; removing a
jumper cap from these pins, OPEN.

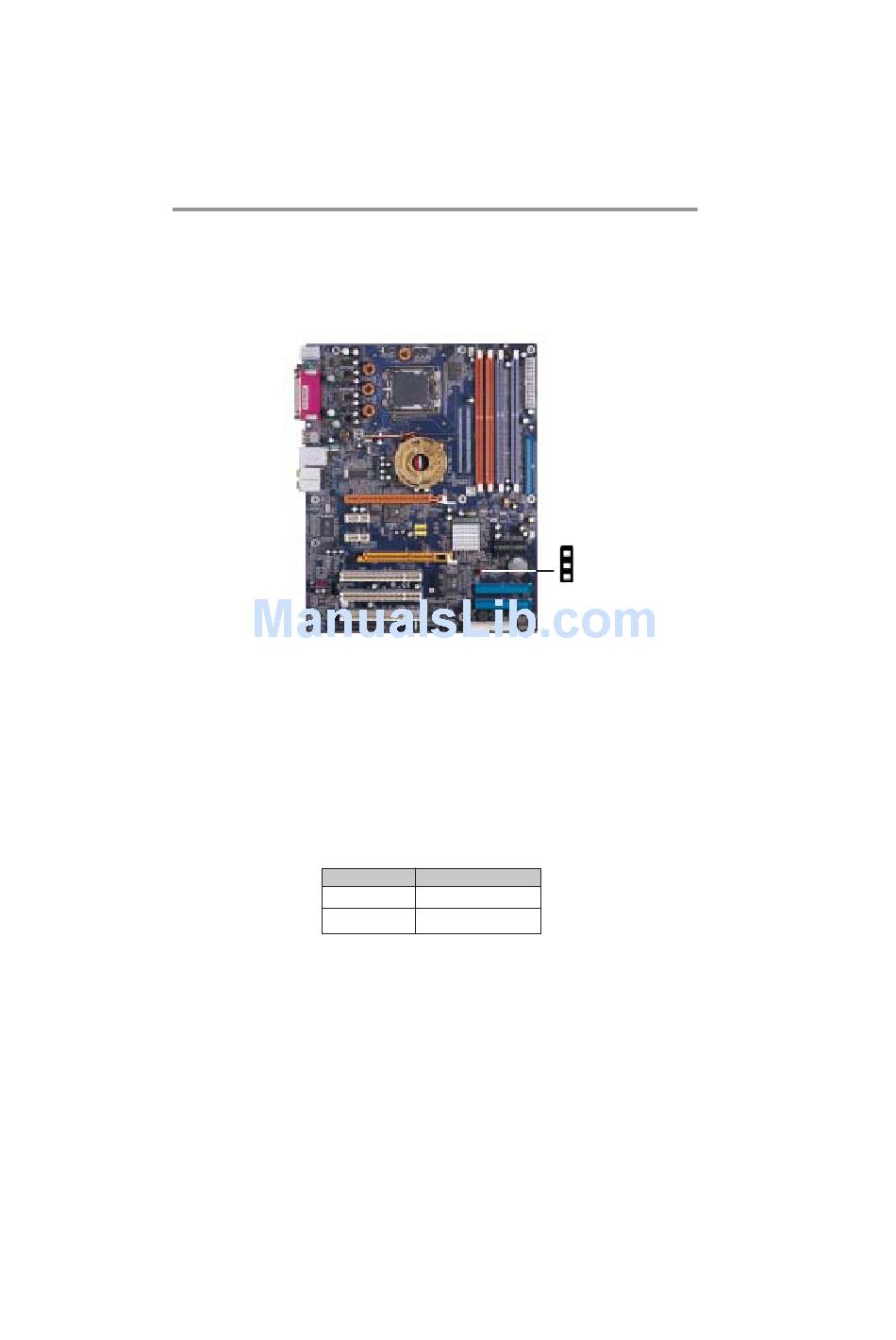

JP1: Clear CMOS Jumper
Use this jumper to clear the contents of the CMOS memory. You
may need to clear the CMOS memory if the settings in the Setup
Utility are incorrect and prevent your motherboard from operating.
To clear the CMOS memory, disconnect all the power cables from
the motherboard and then move the jumper cap into the CLEAR
setting for a few seconds.
Function
Normal
CMOS Clear Short Pins 2-3
1
JP1
Jumper Setting
Short Pins 1-2
