www.weslo.com
Model No. WLTL29911.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
1-866-699-3756
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

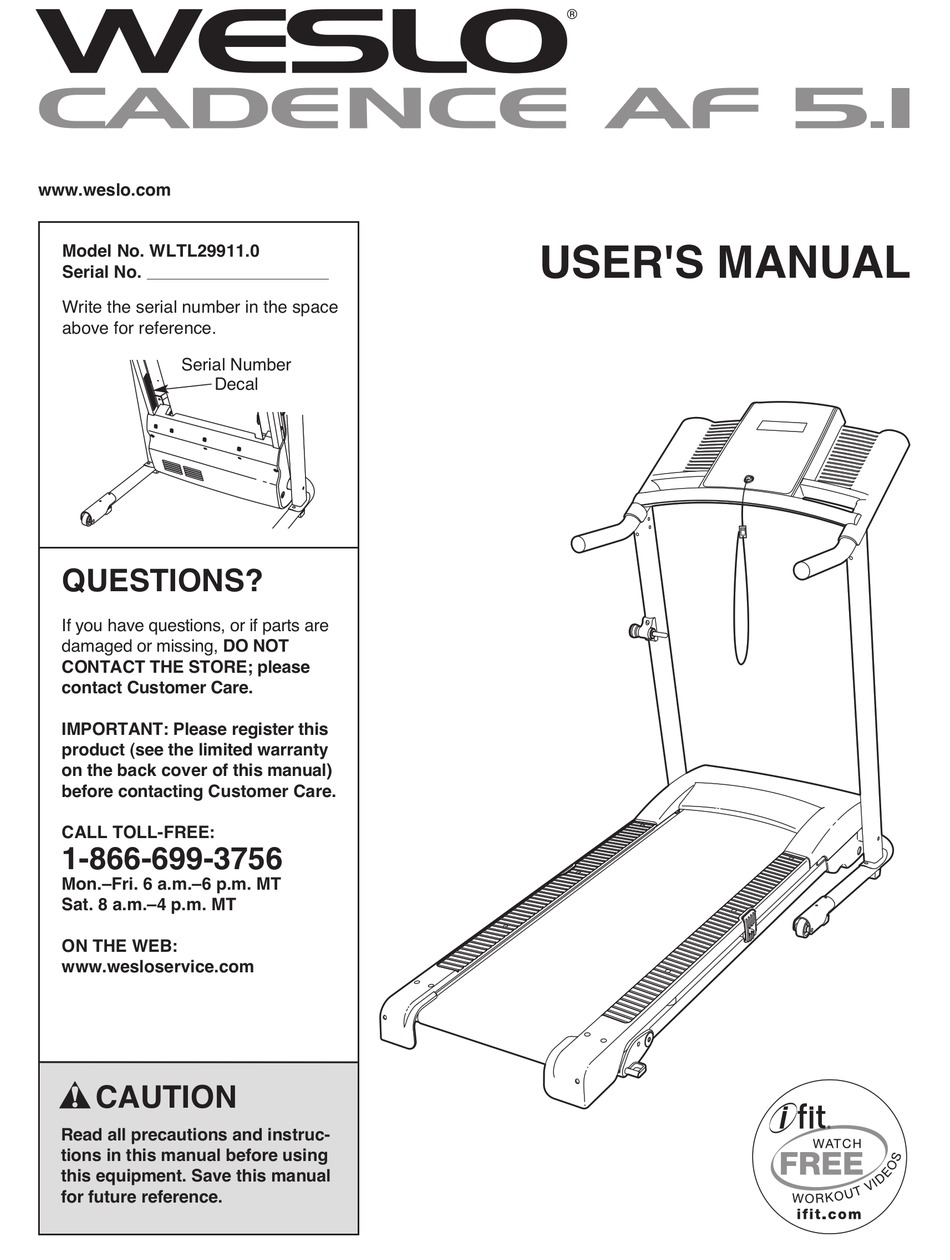

USER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Weslo CADENCE AF 5.1
Summary of Contents for Weslo CADENCE AF 5.1
- Page 1 USER'S MANUAL Model No. WLTL29911.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care.
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
2. It is the responsibility of the owner to ensure page 10. To purchase a surge suppressor, see that all users of this treadmill are adequately your local WESLO dealer or call the telephone informed of all warnings and precautions. number on the front cover of this manual and order part number 146148, or see your local 3. - Page 4 20. Never leave the treadmill unattended while it 25. Never drop or insert any object into any is running. Always remove the key, unplug opening on the treadmill. DANGER: the power cord, and press the power switch into the off position when the treadmill is not Always unplug the power in use.
-
Page 5: Before You Begin
Thank you for selecting the new WESLO ing this manual, please see the front cover of this man- ® CADENCE AF 5.1 treadmill. The CADENCE AF 5.1 ual. To help us assist you, note the product model treadmill offers a selection of features designed to number and serial number before contacting us. -
Page 6: Assembly
ASSEMBLY To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 1. With the help of a second person, carefully tip the treadmill onto its side. Unfold the Frame (51) away from the Uprights (53, 54). Orient the Base (52) as shown. Attach the Base to the Left Upright (53) and the Right Upright (54) with four M10 x 58mm Bolts (2) and four M10 Nuts (73).
- Page 8 3. Set the Right Handrail (33) on the console as- sembly. Make sure that the console wire is Wire Tie not pinched. Remove the tie from the bracket Console Wire on the Right Handrail. If necessary, press the Cage Nuts (101) back into place. Start an M5 x 16mm Screw (85) with an M5 Star Washer (7) into the Right Handrail, and then Bracket...
- Page 9 6. Start an M8 x 15mm Bolt (8) with an M8 Star Washer (5) into each Upright (53, 54). Then, firmly tighten all six M8 x 15mm Bolts (8). 7. Attach the Latch Housing (48) to the Left Upright (53) with two M4.2 x 18mm Screws (58); start both Screws, and then tighten them.
-
Page 10: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT dance with all local codes and ordinances. IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets and may not be compatible Your treadmill features a walking belt coated with high- performance lubricant. IMPORTANT: Never apply sil- with AFCI-equipped outlets. - Page 11 CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE To turn on the power, see page 12. To use the man- ual mode, see page 12. To use a preset workout, see page 13. To change the incline of the treadmill, The treadmill console offers a selection of features designed to make your workouts more effective.
- Page 12 HOW TO TURN ON THE POWER 3. Start the walking belt. IMPORTANT: If the treadmill has been exposed to To start the walking belt, press the Start button or cold temperatures, allow it to warm to room tem- the Speed increase button. The walking belt will perature before you turn on the power.
- Page 13 The lower right dis- If the displayed heart rate appears to be too high or play—The lower right too low, or if your heart rate is not displayed, lift display can show the your thumb for a few seconds, and then reposition speed of the walking your thumb on the heart rate monitor.
- Page 14 3. Start the walking belt. HOW TO CHANGE THE INCLINE OF THE TREADMILL Press the Start button or the Speed increase but- To vary the intensity of your exercise, you can change ton to start the workout. When you press the but- the incline of the treadmill.
-
Page 15: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL Remove the key and unplug the power cord. Before moving the treadmill, fold it as described at the CAUTION: You must be able to safely lift 45 lbs. (20 left. -
Page 16: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following SYMPTOM: The displays of the console do not the simple steps below. Find the symptom that function properly applies, and follow the steps listed. If further assis- tance is needed, see the front cover of this manual. a. -
Page 17: Walking Belt Is Off-Center/Slips
SYMPTOM: The walking belt slows when walked on of a turn; if the walking belt has shifted to the right, turn the left idler roller screw counterclock- a. Use only a single-outlet surge suppressor that wise 1/2 of a turn. Be careful not to overtighten the meets all of the specifications described on page 10. -
Page 18: Exercise Guidelines
EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning any time. During the first few minutes of exercise, your exercise program, consult your physician. body uses carbohydrate calories for energy. Only after This is especially important for persons over the first few minutes of exercise does your body begin age 35 or persons with pre-existing health... -
Page 19: Part List
PART LIST Model No. WLTL29911.0 R0511A Key No. Qty. Description Key No. Qty. Description M10 x 110mm Bolt Base M10 x 58mm Bolt Left Upright M4.2 x 13mm Tek Screw Right Upright M4.2 x 16mm Screw Idler Roller M8 Star Washer Motor Belt Warning Decal Electronics Bracket... -
Page 20: Exploded Drawing
EXPLODED DRAWING A Model No. WLTL29911.0 R0511A... - Page 21 EXPLODED DRAWING B Model No. WLTL29911.0 R0511A 42 21...
- Page 22 EXPLODED DRAWING C Model No. WLTL29911.0 R0511A...
- Page 23 EXPLODED DRAWING D Model No. WLTL29911.0 R0511A...
-
Page 24: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
