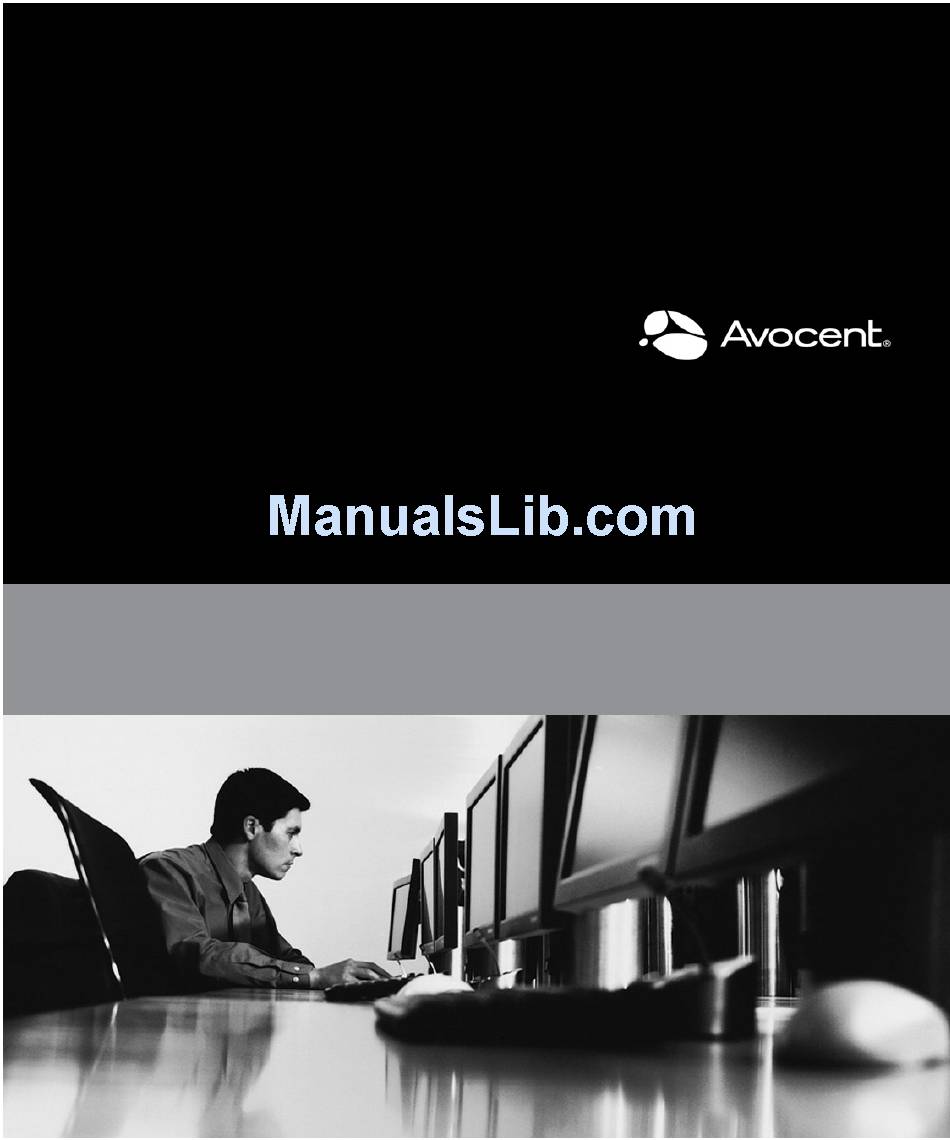

EMERGE® MPX EXTENDER SYSTEM
Installer/User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Emerge and is the answer not in the manual?

Questions and answers

Related Manuals for Avocent Emerge

Summary of Contents for Avocent Emerge

  • Page 1 EMERGE® MPX EXTENDER SYSTEM Installer/User Guide...
  • Page 2 USA Notification WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Emerge® MPX Extender System Installer/User Guide Avocent, the Avocent logo, The Power of Being There and Emerge are registered trademarks of Avocent Corporation or its affiliates in the U.S. and other countries. All other marks are the property of their respective owners.
  • Page 4 Instructions This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Dangerous Voltage This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 5: Table Of Contents

    T A B L E   O F   C O N T E N T S Product Overview Introduction Features and Benefits Video Audio Control Browser-based user interface System Overview Hardware Overview MPX 1450/1550 transmitter MPX 1450/1550 receiver MPX 1450/1550 access points Compatibility with Attached Devices EDID compatibility Video Cross Conversion...
  • Page 6 Emerge® MPX Extender System Installer/User Guide Setting explicit receiver bindings (suggested) Transmitter and Receiver Placement (MPX 1550 System Only) Mounting options Wall mounting Table mounting Initiating a Media Session Operation Status Monitoring Connection status MPX status LEDs System Tuning Audio...

  • Page 7: Product Overview

    MPX access points to increase the number of displays for large-scale venues involving multiple floors, departments or buildings such as universities, theme parks, hospitals and airports. For ease of installation and configuration, Emerge MPX extender systems feature an on-board web interface that also offers powerful diagnostic tools for local or remote management.

  • Page 8: Video

    Emerge® MPX Extender System Installer/User Guide • Point-to-multipoint distribution – By adding MPX 1450 and 1550 access point expansion units, an Emerge MPX extender system can be expanded to distribute HD video and audio to as many as 64 display devices. •...

  • Page 9: System Overview

    Chapter 1: Product Overview System Overview The following diagram illustrates a typical configuration, including a single transmitter and up to eight receiver units, and an expanded configuration, including a single transmitter, up to eight access points and up to eight receiver units (MPX 1550 extender system shown). Figure 1.1: Typical and Expanded MPX Multipoint Extender System Configuration Table 1.1: Descriptions Number...

  • Page 10: Hardware Overview

    Emerge® MPX Extender System Installer/User Guide Number Item MPX Receiver Display Device Access Point The MPX 1450 extender system versus the MPX 1550 extender system The MPX 1550 extender system offers a wired or wireless solution for HD video distribution. It features a default omni antenna with a signal strength of up to 150 feet through three interior walls or 300 feet line of sight.
  • Page 11 Chapter 1: Product Overview Figure 1.2: MPX 1550 Transmitter...
  • Page 12 (Supported on the MPX 1550 extender system only) Used to establish the wireless link between the transmitter/access points and bound Omni-directional receivers. Avocent offers specialized antennas for improved distance or Antenna higher performance in certain bands. See the Avocent web site for more information.

  • Page 13: Mpx 1450/1550 Receiver

    Chapter 1: Product Overview MPX 1450/1550 receiver The receiver decrypts, uncompresses and converts media signals into the desired format and outputs the signals to the connected display device. The following diagram illustrates the receiver (the omni-directional antenna applies only to the MPX 1550 receiver). Figure 1.3: MPX 1550 Receiver...

  • Page 14: Mpx 1450/1550 Access Points

    Omni-directional receivers. Avocent offers specialized antennas for improved distance or Antenna higher performance in certain bands. See the Avocent web site for more information. MPX 1450/1550 access points In installations that require more than eight display devices, up to eight MPX 1450/1550AP...
  • Page 15 Chapter 1: Product Overview  receivers to allow up to 64 display devices attached to a single transmitter. The inbound media interface for both MPX 1450AP and MPX 1550AP access points must be wired. While the outbound media interface for MPX 1450AP access points must be wired, the MPX 1550AP access points can be wired or wireless.

  • Page 16: Compatibility With Attached Devices

    Omni-directional receivers. Avocent offers specialized antennas for improved distance Antenna or higher performance in certain bands. See the Avocent web site for more information. Compatibility with Attached Devices The following sections provide guidelines regarding compatibility with source and display devices.

  • Page 17: Video Cross Conversion

    Chapter 1: Product Overview passes its EDID information back to the transmitter. The display device attached to the primary receiver should be representative of the displays attached to other receivers. The MPX transmitter is pre-configured with default EDID information, which indicates support for a fixed set of low video resolutions at 60 Hz.
  • Page 18 Emerge® MPX Extender System Installer/User Guide...

  • Page 19: Installation

    Installation Installation Overview Complete the following steps in order to begin installation of your MPX extender system. • Take proper precautions against antistatic discharge. • Remove your MPX transmitter, access points (optional), antennas (MPX 1550 extender system only), and receivers from their boxes. •...

  • Page 20: Maximizing Your Wireless Range

    5. Antenna extension cables result in signal loss. When possible, move the transmitter or receiver into the desired position in lieu of using an extension cable. When cables are necessary, use the shortest Avocent-certified cable that allows you to properly position your antenna. Daisy-chaining of antenna extension cables is not supported. Carefully follow the installation instructions provided with your cable kit and properly configure the extender when using extension cables.

  • Page 21: Transmitter Configuration

    Chapter 2: Installation Transmitter Configuration NOTE: If you prefer to mount your transmitter and receivers prior to configuration, see Mounting options on page The transmitter can be configured by using an intuitive web interface, which can be accessed via the control LAN port with a web browser. The following steps guide you through this process.
  • Page 22 • Auto: (default) Select this option when using HDMI cable, DVI-D cable, HD15 RGB cable if the supplied Avocent RGB adaptor is used or three-wire Component video cable if the optional Avocent Component video adaptor-cable is used (not included). •...
  • Page 23 • Manual (Component): You must select this option when using three-wire Component cables without the optional Avocent Component video adaptor. 3. The MPX transmitter acts like a display device attached to the video source device; as such, it will provide capabilities information back to the source device using an EDID string.
  • Page 24 Emerge® MPX Extender System Installer/User Guide Figure 2.1: Transmitter Custom Resolution Settings • None: This setting invalidates resolution management on the transmitter, which causes some RGB source devices to treat the transmitter as a default monitor. Choose this mode with caution as it may allow users of the source device to select a resolution or refresh rate that is not supported by this transmitter or by a display device attached to an MPX receiver.

  • Page 25: (Optional) Transmitter Media Lan Settings

    4. The Remote Console feature allows for centralized control of the MPX extender system. Contact Avocent technical support before you enable this feature. NOTE: The Remote Console feature should only be enabled on a secure network, as it potentially creates a security hole.
  • Page 26 Emerge® MPX Extender System Installer/User Guide Figure 2.2: Transmitter Basic LAN Settings An MPX 1550 transmitter is a specialized wireless access point. It broadcasts a name (ESSID), which enables MPX receivers to locate and bind to it. Although it is not possible to alter this name, you may disable the broadcasting of this name if all receivers have been explicitly configured with the MAC address of the transmitter.
  • Page 27 Chapter 2: Installation To attenuate transmission power: 1. In the Transmit Power Attenuation drop-down menu, select the appropriate attenuation value. 2. Apply the change. NOTE: Selection of this setting causes the transmitter to temporarily drop active bindings. NOTE: Each 3dB of attenuation reduces signal strength by one half. Thus, the setting for -3dB results in one-half power.

  • Page 28: Validating Media Lan Connectivity

    Emerge® MPX Extender System Installer/User Guide Figure 2.3: Transmitter Advanced IP Settings Validating media LAN connectivity Media session data (audio, video and control information) is transferred from an MPX 1450 transmitter to bound receivers through the L2 wired LAN interface. The MPX 1550 transmitter supports both the wireless (default configuration) and wired LAN interfaces.

  • Page 29: Access Point Installation

    Chapter 2: Installation NOTE: The IP address of the MPX receiver’s media LAN port is dynamically assigned by its transmitter at bind time. This process is similar to DHCP. 4. You may place more than one transmitter on a wired media LAN. Skip to the next step if you are only installing one transmitter.

  • Page 30: Receiver Configuration

    Emerge® MPX Extender System Installer/User Guide To set up an MPX 1450/1550AP expansion unit: 1. Connect the power supply to the access point. 2. In the Active Receivers list, click the MAC address of the first access point to access its web interface.

  • Page 31: (Optional) Mpx Receiver Control Lan (L1) Settings

    Chapter 2: Installation (Optional) MPX receiver control LAN (L1) settings To establish a dedicated wired control LAN for management of an MPX extender system, you must establish unique IP addresses for the control LAN ports of each receiver and transmitter to be placed on the shared LAN.
  • Page 32 Plug and Play: (default) This option allows the receiver to auto-detect DVI-D/HDMI displays, RGB displays (if the video cabling and display support DDC functionality) and Component video displays (if the optional Avocent Component adaptor-cable is used). When MPX receivers are configured for Plug and Play, they are able to distinguish an RGB display device from the EDID information received from the display.

  • Page 33: (Optional) Receiver Media Lan Settings

    Figure 2.4: Receiver Manual Resolution Settings Manual (Component): You must select this option for the receiver to output Component video if the optional Avocent DVI to Component adaptor-cable is not used. This setting also requests the receiver to generate EDID information on behalf of the Component display device.

  • Page 34: (Optional) Configuring Receiver System Settings

    Emerge® MPX Extender System Installer/User Guide 3. By default, a receiver is set up to connect to a transmitter in wired mode, using subnet address 192.168.11.0. To connect to an access point in default condition, you should change the Unicast IP (Wired) Subnet Address to 192.168.12.0.

  • Page 35: Setting Explicit Receiver Bindings (Suggested)

    Chapter 2: Installation • Designation of a specific transmitter ensures that rogue transmitters are ignored by your receivers. • If all receivers are tied to specific transmitter, it is possible to disable ESSID broadcast on your transmitter. Disabling of ESSID broadcast provides yet another layer of security for your system (MPX 1550 extender system only).
  • Page 36 Emerge® MPX Extender System Installer/User Guide • Explicit bindings allow for the selection of a primary receiver, which enables the following functionality: • It allows for bi-directional serial and IR communications. Without a primary, serial and IR data is broadcast by the transmitter to all receivers and return data are ignored.

  • Page 37: Transmitter And Receiver Placement (Mpx 1550 System Only)

    Chapter 2: Installation NOTE: (Optional) You may manually enter a receiver’s MAC address. MAC address labels are affixed to the bottom of an MPX receiver. Figure 2.7: Bindings Page Transmitter and Receiver Placement (MPX 1550 System Only) To find acceptable locations for your units: 1.
  • Page 38 Antenna polarity: RF antennas are polarized. The default MPX extender system antenna is a dipole antenna, which emits and responds to vertically-oriented RF signals. The Avocent UNI-8DB antenna emits and responds to horizontally- oriented RF signals. When signals pass between these two types of antennas, one must be rotated into a 3 or 9 o’clock position.
  • Page 39 Chapter 2: Installation will not intersect. In this case, signal strength may be optimized through appropriate up or down tilt of their respective antennas, as illustrated in Figure 2.9. Notice how the primary lobe of each beam of each antenna is tilted toward the other antenna. Tilt is accomplished by a slight rotation of the antenna at its base or tilting of the articulating arm of the antenna in the appropriate direction.
  • Page 40 Emerge® MPX Extender System Installer/User Guide Figure 2.9: Vertically Aligned Antennas • Reflections: Depending upon your environment, you may want to orient the antennas on your transmitters and receivers so that one antenna on each unit is upward in a 12 o’clock position and the other antenna is perpendicular to it, in a 3 or 9 o’clock position.
  • Page 41 Chapter 2: Installation care to evaluate only those channels that are compatible with the antennas that you have selected. For example, do not test G band channels with UNII band antennas. 7. Once acceptable signal strength is attained, turn off the MPX transmitter, access points and receivers.

  • Page 42: Mounting Options

    Emerge® MPX Extender System Installer/User Guide If you intend to use the extender network to pass serial or IR control signals, see Serial Control on page 49 and IR Control on page 52 for more information. Mounting options Wall mounting An optional keyhole style wall mounting bracket is available for MPX 1450/1550 receivers.

  • Page 43: Table Mounting

    Chapter 2: Installation NOTE: Take care to orient the bracket such that the narrow portion of keyhole slot will interlock with the heads of the mounting screws when the unit suspended upon them. 4. Slots on outer edge of bracket can be used after the bracket is installed to the receiver. Hold the receiver / bracket against the mounting surface and drive screws thru slots.

  • Page 44: Initiating A Media Session

    Emerge® MPX Extender System Installer/User Guide NOTE: After the brackets are on the unit, the four table mounting holes provide a VESA 100 mm X 200 mm pattern. Power supply bracket An optional power supply bracket kit is available for MPX 1450/1550 extender systems. This bracket may be used to affix to the external power adaptor to the chassis of the MPX 1450/1550 receiver.
  • Page 45 Chapter 2: Installation The following steps allow you to verify proper operation of your transmitter, access points and receivers, establish an Active EDID string at the MPX transmitter and test compatibility of your source and display devices through the extender system. To establish your first media session across the extender system: 1.
  • Page 46 Emerge® MPX Extender System Installer/User Guide...

  • Page 47: Operation

    Operation Status Monitoring The web interface provides two pages for system monitoring: the Connection Status page and the Media LAN Performance page. The Connection Status page offers a status table for the transmitter and a separate table for each receiver. Connection status The Connection Status page in the Transmitter Menu displays the operational status of the transmitter and all bound receivers.
  • Page 48 Emerge® MPX Extender System Installer/User Guide Field Tx/Rx Description The OEM identifier assigned to the transmitter or receiver. This information may be OEM ID required for technical support but is not required for normal use of the product. Country Both The country code for the product.

  • Page 49: Mpx Status Leds

    Chapter 3: Operation Field Tx/Rx Description An indication of the wireless signal strength on the receiver. Only displayed on wireless A/V networks. Ranges from 0 to 100, with 0 representing weak signal strength and 100 Signal representing maximum signal strength. A graphical display is also provided as follows: Strength Poor signal quality –...
  • Page 50 Emerge® MPX Extender System Installer/User Guide Number Description Amber-2 Green-1 Green-2 NOTE: When an LED is described as flashing, it is flashing on and off at a rate of four flashes per second. When an LED is described as Blinking, it is blinking on and off at a slower rate of 1.5 seconds per blink. When an LED is described as On Solid, it is continuously illuminated and is neither blinking nor flashing.
  • Page 51 Chapter 3: Operation Signal Level Red Amber-1 Amber-2 Green-1 Green-2 Wired operation status If no connection exists, Green-1 and Green-2 will alternate in a search pattern while all other LEDs remain off. If a connection to one or more receivers does exist, the following pattern is displayed on transmitters or access points (if a connection to a transmitter does exist, MPX receivers show the same pattern as below).
  • Page 52 Emerge® MPX Extender System Installer/User Guide Flash upgrade status LED indicators provide the following status information during the Flash upgrade process. Table 3.6: LED Status - Flash upgrade Flash upgrade LED Activity State Green-2 LED flashing indicates that the Flash upgrade is in progress. While this LED is flashing, one...

  • Page 53: System Tuning

    Chapter 3: Operation Number Description ST-2; if off, a connection with a transmitter/access point is not established. If blinking slowly, the signal level = 1. If blinking quickly, the signal level = 2 or 3. If solid, the signal level = 4 or 5. NOTE: ST-1 and ST-2 LEDs can sometimes work concurrently.

  • Page 54: Transmitter/Access Point Tuning Parameters

    Emerge® MPX Extender System Installer/User Guide Transmitter/access point tuning parameters Controls provided on the Tuning Parameters page in the Transmitter Menu, as illustrated in the following figure, allow you to fine tune the operation of your extender system. Figure 3.3: Transmitter Tuning Parameters - Basic Settings...
  • Page 55 Chapter 3: Operation The default tuning parameter values are designed to maintain a reasonable balance between image quality and frame rate across all receivers. Depending on whether frame rate or image quality are more important, you can tune these parameters to meet the needs of you particular application.

  • Page 56: Receiver Tuning Parameters

    Under most conditions, these settings should not be required. Should the basic tuning parameters be insufficient to resolve issues in your environment, contact Avocent technical support for additional suggestions. Receiver tuning parameters The Tuning Parameters page in the Receiver Menu, as illustrated in the following figure, allows fine adjustments to be made to audio and video signal timing.

  • Page 57: Serial Control

    Chapter 3: Operation Table 3.9: Receiver Tuning Parameters Setting Description The MPX transmitter places a timestamp on audio and video data to ensure proper lip- synch across all bound receivers. Audio and video output will be synchronized across all display devices as long as the devices themselves introduce equivalent latency prior to Receiver display.
  • Page 58 Emerge® MPX Extender System Installer/User Guide • If primary only passthrough is selected, data received at the transmitter's serial port will be sent only to the primary receiver. This mode allows bi-directional communication with a single device. You can switch serial control from one receiver to another by clicking the Primary radio button on the Bindings page.
  • Page 59 Chapter 3: Operation Figure 3.5: Serial Passthrough Mode Table 3.10: Serial Passthrough Mode Descriptions Number Item Serial Device Source MPX Transmitter Serial Data from Transmitter to Receiver MPX Receiver Primary MPX Receiver Serial Data from Display via Primary Receiver...

  • Page 60: Ir Control

    Emerge® MPX Extender System Installer/User Guide Use the Serial Passthrough parameters section on the Serial Settings page in the Transmitter Menu to specify the serial mode and settings. To configure serial passthrough modes: 1. Select Serial Settings in the Transmitter Menu, located on the left side of the web interface.
  • Page 61 Chapter 3: Operation IR data is broadcast across the extender network from an MPX transmitter to all bound receivers. Bi-directional IR data is limited to the transmitter and the primary receiver. NOTE: For clarity, the flow of IR data from the IR(Rx) port to the IR(Tx) port on the same MPX extender system unit is referred to as IR local loopback and the flow of IR data across the extender network is called IR extension.
  • Page 62 A single IRB-100 dual emitter is supplied with the MPX transmitter. Should it be necessary to control more than two source devices, Avocent offers the IRB-Y splitter, which allows two IRB-100 dual emitters to be attached to a single MPX transmitter.
  • Page 63 Chapter 3: Operation Figure 3.7: IR Flow: Primary Receiver to Transmitter The following figure illustrates local looping of IR commands. This allows source or display devices to be controlled locally.
  • Page 64 Emerge® MPX Extender System Installer/User Guide Figure 3.8: IR Loopback NOTE: IR data looped locally within an MPX transmitter or the primary receiver is also sent normally across the extender network. IR data looped locally on a receiver other than the primary receiver will not be forwarded to the extender network.

  • Page 65: Advanced Source Device Settings

    Chapter 3: Operation b. Enabled: IR local loopback is enabled. 3. Apply the changes. Regardless of the IR blaster mode setting, all IR data received by the local IR receiver port on the transmitter is forwarded to the IR transmit ports of all connected receivers. To configure IR control on a receiver: 1.

  • Page 66: Displaying Firmware And Hardware Versions

    Emerge® MPX Extender System Installer/User Guide Figure 3.9: Transmitter Advanced Source Device Settings Displaying Firmware and Hardware Versions The Version Information page is used to display the firmware and hardware version numbers. This page is the same for transmitters and receivers.

  • Page 67: Firmware Version Checking

    Visit the Avocent web site at www.avocent.com to review the available upgrades. A firmware upgrade can be performed if the firmware on the Avocent web site is a higher revision than the version that is currently on each of the transmitters or receivers.
  • Page 68 Emerge® MPX Extender System Installer/User Guide bound access point, but it cannot upgrade firmware of any receivers connected to that access point. To download the upgrade file: 1. Select Firmware Upgrade from the Transmitter Menu. 2. Type the IP address of the TFTP server from which you are downloading the new Flash image.
  • Page 69 Chapter 3: Operation Figure 3.10: Transmitter Firmware Upgrade Flash upgrade progress The web interface offers on-going status updates throughout the upgrade process. Progress is reported in terms of percentage of completion of each step. Flash upgrade status LEDs While the receiver is upgrading Flash memory, the LEDs show the current state of the Flash upgrade.

  • Page 70: System Reboot

    Emerge® MPX Extender System Installer/User Guide • Green-1: Blinks while file download is in progress. It will turn solid after download has completed. • Amber-2: Blinks while erase or Flash of the boot image is in progress. It will turn solid after the boot image Flash has successfully completed.

  • Page 71: Appendix A: Technical Support

    Appendix A: Technical Support Our Technical Support staff is ready to assist you with any installation or operational issues you encounter with your Avocent product. If an issue should develop, follow the steps below for the fastest possible service. To resolve an issue: 1.

  • Page 72: Appendix B: System Definitions

    Emerge® MPX Extender System Installer/User Guide Appendix B: System Definitions The Emerge MPX extender system consists of one transmitter, up to eight access points and up to 64 receiver units. The following terms are used to identify common components. Table B.1: Definitions for an MPX Extender System Solution...
  • Page 73 Appendices Term Definition Dual IR emitter that connects to the IR(Tx) port of the transmitter or the receiver IR Blaster and converts electrical signals that arrive at that port to IR signals for control of source and display devices. IR Extension Flow of IR data across the MPX extender system.
  • Page 74 Emerge® MPX Extender System Installer/User Guide Term Definition A single MPX receiver that you specify as the primary receiver during configuration for each system. Only the primary receiver reports EDID Primary information back to the transmitter and source device. The primary receiver is...

  • Page 75: Appendix C: Supported Iso Country Codes

    Appendices Appendix C: Supported ISO Country Codes Table C.2: MPX Extender System Supported ISO Country Codes Country ISO Code ISO Code Country North America Malta United States Netherlands Canada Norway Europe Poland Austria Portugal Belgium Russia Cyprus Slovakia Czech Republic Slovenia Denmark Spain...
  • Page 76 Emerge® MPX Extender System Installer/User Guide Country ISO Code ISO Code Country Korea Africa / Middle East Malaysia Saudi Arabia New Zealand Dubai / UAE Philippines Latin / South America Singapore Argentina Taiwan Brazil Mexico...

  • Page 77: Appendix D: Technical Specifications

    Appendices Appendix D: Technical Specifications Table D.3: MPX 1450/1550 Transmitter, Receiver and Access Point Product Specifications Physical Attributes Height 1.0" Width 6.92" Depth 4.55" Ambient Atmospheric Condition Ratings Operating Temperature 32°F - 104°F (0°C - 40°C) Storage Temperature -04°F - 140°F (-20°C- 60°C) 20% to 80% relative humidity (non-condensing) across the operating Humidity temperature range...
  • Page 78 Emerge® MPX Extender System Installer/User Guide Physical Attributes Connections (rear) Power DC barrel connector Dual serial port for control of attached display devices. Requires optional DB9- Serial (RJ-45) DUAL female serial cable Ethernet connector 10/100 IEEE 802.3, used for streaming video and web...
  • Page 79 Appendices Physical Attributes SD video (Component) resolutions (at 30 frames per second): 480 i @ 60 Hz 480 p @ 60 Hz 576 i @ 50 Hz Video Resolutions (Component Video) 576 p @ 50 Hz HD video (Component) resolutions (at 30 frames per second): 720 p @ 50/60 Hz 1080 i @ 50/60 Hz Supports the following HDMI and DVI-D resolutions:...
  • Page 80 Emerge® MPX Extender System Installer/User Guide Physical Attributes Analog audio frequency response: 20 Hz - 20 Khz with a 3 dB per octave roll- Frequency Response off beginning at 14 Khz Supported Radio Bands (MPX 1550 extender system only) UNII 1: (4 Channels) 5.15-5.25 GHz: channels bonded into two 40 GHz channels...

  • Page 81: Appendix E: Video Troubleshooting

    Appendix E: Video Troubleshooting The following troubleshooting tips should help resolve most common setup and initialization issues. If a problem persists, please contact Avocent technical support for additional help. Available information The Transmitter Status table on the Connection Status page in the Transmitter Menu offers additional information for video troubleshooting.
  • Page 82 Emerge® MPX Extender System Installer/User Guide Figure E.1: Transmitter Status Table If you click Help, the Transmitter Status table provides three additional fields:...
  • Page 83 Appendices • Primary Video Resolutions: This field contains a list of all resolutions reported to the transmitter by the primary receiver. These values come from the display device or from the Display Device Settings page in the Receiver Menu. • Video Resolutions in Use: This field indicates the list of resolutions reported to the source device.
  • Page 84 Emerge® MPX Extender System Installer/User Guide effect. In this case, use the Display Device Settings table to enable appropriate resolutions for the display device. • Pins 12 and 15 of an RGB cable provide connectivity for DDC data and DDC clock, respectively.
  • Page 85 Appendices • Initiate a video hot-plug of the source and display devices to ensure that the EDID information has been read and transferred across the extender network. • Determine if the source device is sending HDCP protected content. If so, no video will be displayed because the system does not support HDCP protected content.
  • Page 86 Emerge® MPX Extender System Installer/User Guide If you are fine Then choose... tuning... Select Luma Chroma Percentages and Content Type on the Tuning Parameters page in the Transmitter Menu. See Transmitter/access point tuning parameters on page 46. The luma chroma setting affects the way in which the transmitter processes luma and chroma information in the input video stream.
  • Page 87 Appendices If you are fine Then choose... tuning... Adjust the Transmit Power Attenuation field on the Basic LAN Settings tab of the Media LAN Settings page. This setting may be set separately for transmitters and receivers. The transmit power attenuation is determined by the transmitter’s Country Code setting (MPX 1550 extender system only).
  • Page 88 Emerge® MPX Extender System Installer/User Guide device is turned on. Therefore, the power sequence of MPX transmitters, receivers, access points, source devices and display devices is critical when using an RGB source device. NOTE: EDID information is maintained by the MPX transmitter in non-volatile storage so the order in which you turn on the units is important only during initial installation.
  • Page 89 For Technical Support: www.avocent.com/support 590-974-501B...
