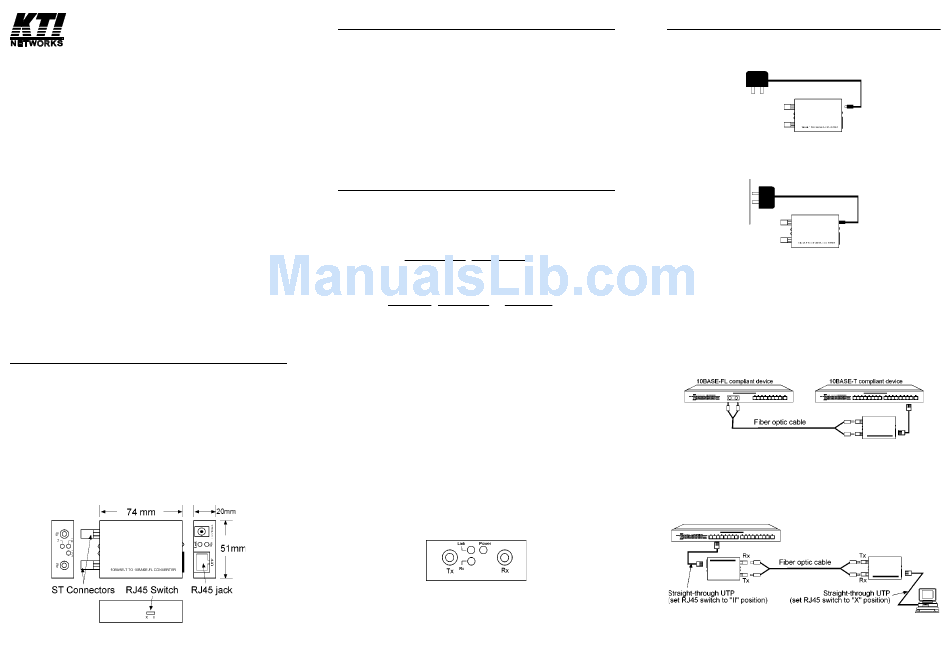

KTI Networks KC-10FM Installation Manual

Installation Guide
Ethernet Media Converter
Model: KC-10FM
DOC. 980422-KC10FM-K
P/N: 750-0111-001
General Description

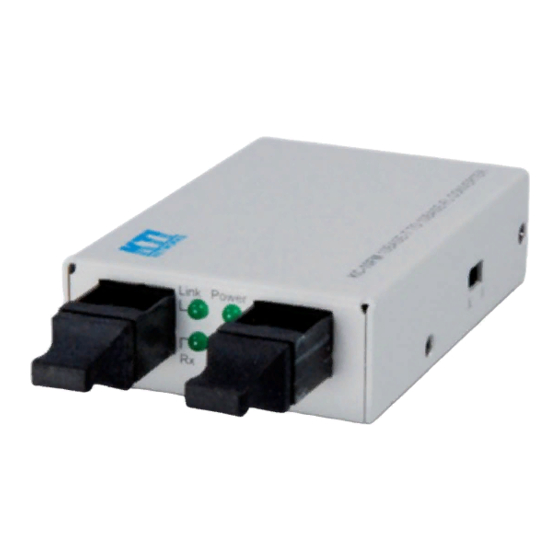

KC-10FM Ethernet media converter is designed to be a
connection interface between a 10BASE-T Ethernet UTP
cable and 10BASE-FL fiber cable. It features a RJ-45
connector and a pair of ST fiber optic connectors.
The converter complies with IEEE 802.3 10BASE-T and
10BASE-FL standard and supports a UTP cable up to 100
meters and a fiber optic cable up to 2000 meters with no
increasing on the hop count in the network.
Specifications
• Complies with IEEE 802.3 10BASE-T and 10BASE-FL std.
• Supports UTP cable up to 100 meters (328 feet)
• Supports fiber optic cable up to 2000 meters (6500 feet)
• Supports LED indications for the Power, UTP Link,
UTP Receiving, Fiber Link, and Fiber Receiving status
o
• Environment: Temperature 0 - 40 C
Humidity 10-90% non condensing
• Dimension: 74mm x 51mm x 20mm
• Power: +12V / 500mA minimum
Connectors & Cables
10BASE-T RJ-45 Connector
One RJ-45 switch is provided for selecting the type of RJ-
45 connector as follows:
RJ-45 Switch RJ-45 Type
X position MDI-X
II position MDI-I
RJ-45 Pin MDI-X type MDI-I type
1 Rx+
2 RX-
3 Tx+
6 Tx-
It allows you to make all UTP connections using common
straight-through UTP.
10BASE-T UTP Cable
Cable type: Category 3, 4 or 5
Maximum cable distance: 100 meters (328 feet)
Fiber Optic Connectors
Two ST connectors are provided for fiber optic cable
connection. One is labeled "Tx" for transmitting operation.
The other is labeled "Rx" for receiving operation.
Fiber Optic Cable
Cable type: 62.5/125 mm multimode fiber (recommended)
Maximum cable distance: 2000 meters (6500 feet)
Installation
1. Install the media converter with the DC power adapter
provided. ( +12VDC, 500mA)
2. Connect the power adapter cable to the media con-
verter before connecting the adapter to the AC outlet.
3. Do not connect more than two media converters in
series.
Making Network Connections
Tx+
The following example illustrates a connection from a
Tx-
Rx+
10BASE-T port of one hub to a 10BASE-FL port of
Rx-
another hub through a media converter.
The following example illustrates a connection from a
10BASE-T port of one hub to a 10BASE-T NIC on a
computer through a media converter.
