Installation Guide
100BASE-TX/100BASE-FX
Fast Ethernet Media Converter
KC-100FM2/T
KC-100FM2/C
KC-100FM2/S
KC-100FM2/S-3
KC-100FM2/S-5
DOC. 991115-KC100FM2-K Rev.2.1
P/N: 750-0114-001
General Description
KC-100FM2/T
UTP to multimode fiber with ST connectors
KC-100FM2/C
UTP to multimode fiber with SC connectors
KC-100FM2/S
UTP to 15Km SC single mode fiber
KC-100FM2/S-3 UTP to 30Km SC single mode fiber
KC-100FM2/S-5 UTP to 50Km SC single mode fiber
Specifications
o
Connectors & Cables
100BASE-TX RJ-45 Connectors
RJ-45 Pin MDI-X Jack
MDI Jack
1
Rx+
2
RX-
3
Tx+
6
Tx-
100BASE-TX UTP Cable
Fiber Optic Connector
Model
KC-100FM2/T KC-100FM2/C KC-100FM2/S
Wavelength
1300nm
1300nm
Fiber mode
Multimode
Multimode
Connectors
ST type
SC type
Fiber cable*
1
62.5/125µm
62.5/125µm
Cable length*
2
2000 meters
2000 meters
Fiber cable *
1
: recommended fiber cable
Cable length*
2
: distance for point-to-point full duplex connection
*3:
KC-100FM2/S
15K meters
KC-100FM2/S-3
30K meters
KC-100FM2/S-5
50K meters
Tx+
Tx-
Rx+
Rx-
1300nm
Single mode
SC type
9/125µm
*3
Advertisement
Related Manuals for KTI Networks KC-100FM2/T
Summary of Contents for KTI Networks KC-100FM2/T

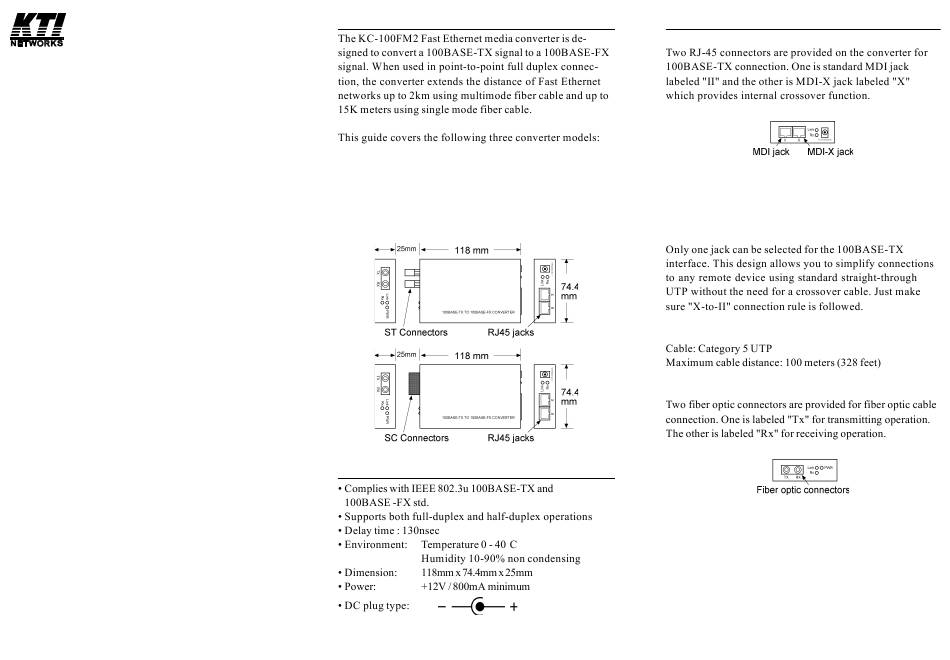

- Page 1 KC-100FM2/S-5 UTP to 50Km SC single mode fiber KC-100FM2/S KC-100FM2/S-3 KC-100FM2/S-5 DOC. 991115-KC100FM2-K Rev.2.1 P/N: 750-0114-001 100BASE-TX UTP Cable Fiber Optic Connector Specifications Model KC-100FM2/T KC-100FM2/C KC-100FM2/S Wavelength 1300nm 1300nm 1300nm Fiber mode Multimode Multimode Single mode Connectors ST type...
