Back Panel Connectors

MAXDATA PLATINUM Server Board
� � �
�
�

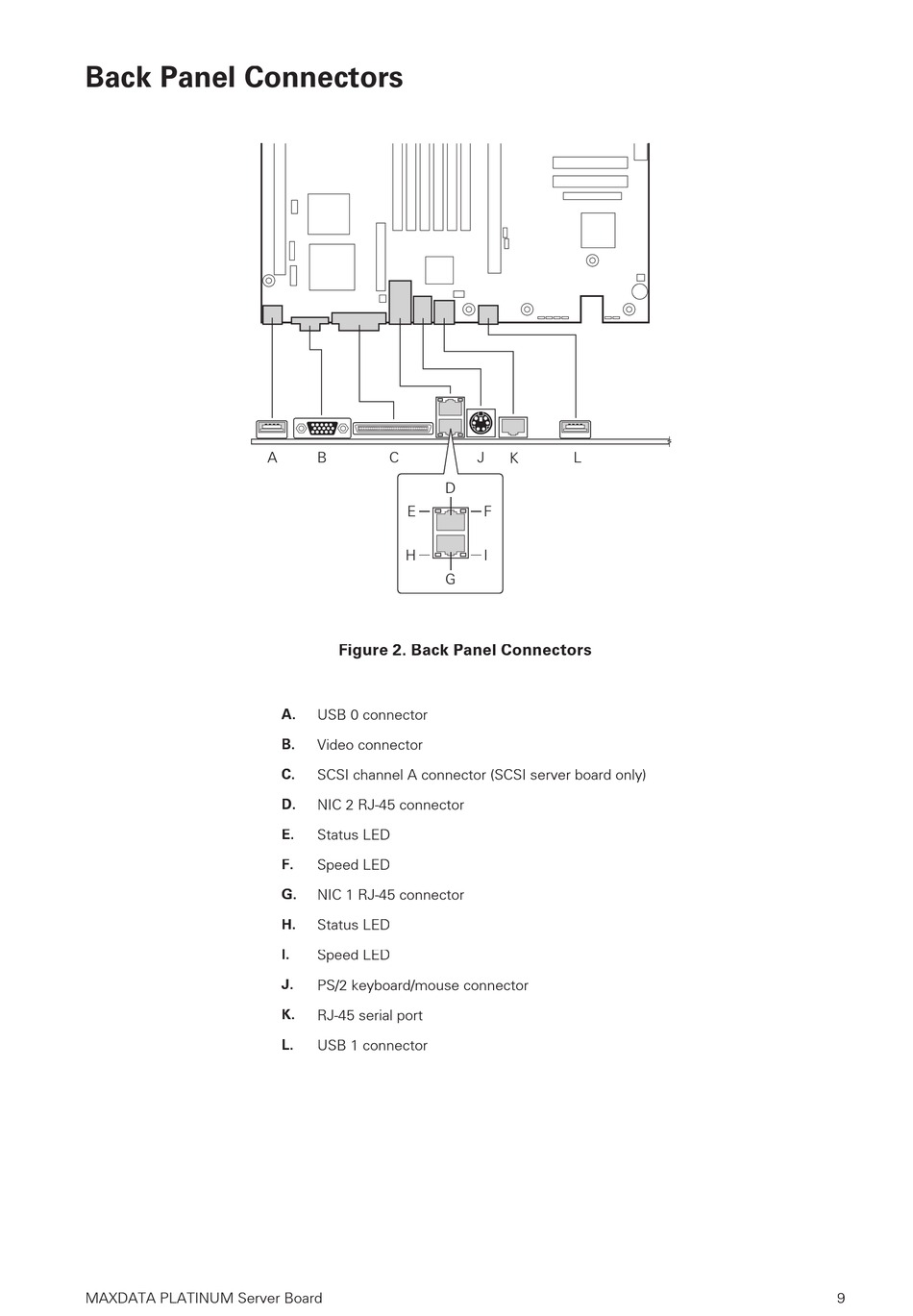

Figure 2. Back Panel Connectors
A.
USB 0 connector
B. Video connector
C. SCSI channel A connector (SCSI server board only)
D.
NIC 2 RJ-45 connector
E. Status LED
F.
Speed LED
G. NIC 1 RJ-45 connector
H. Status LED
I.
Speed LED
J. PS/2 keyboard/mouse connector
K. RJ-45 serial port
L.
USB 1 connector
� �
�
�
�
�
�
9
