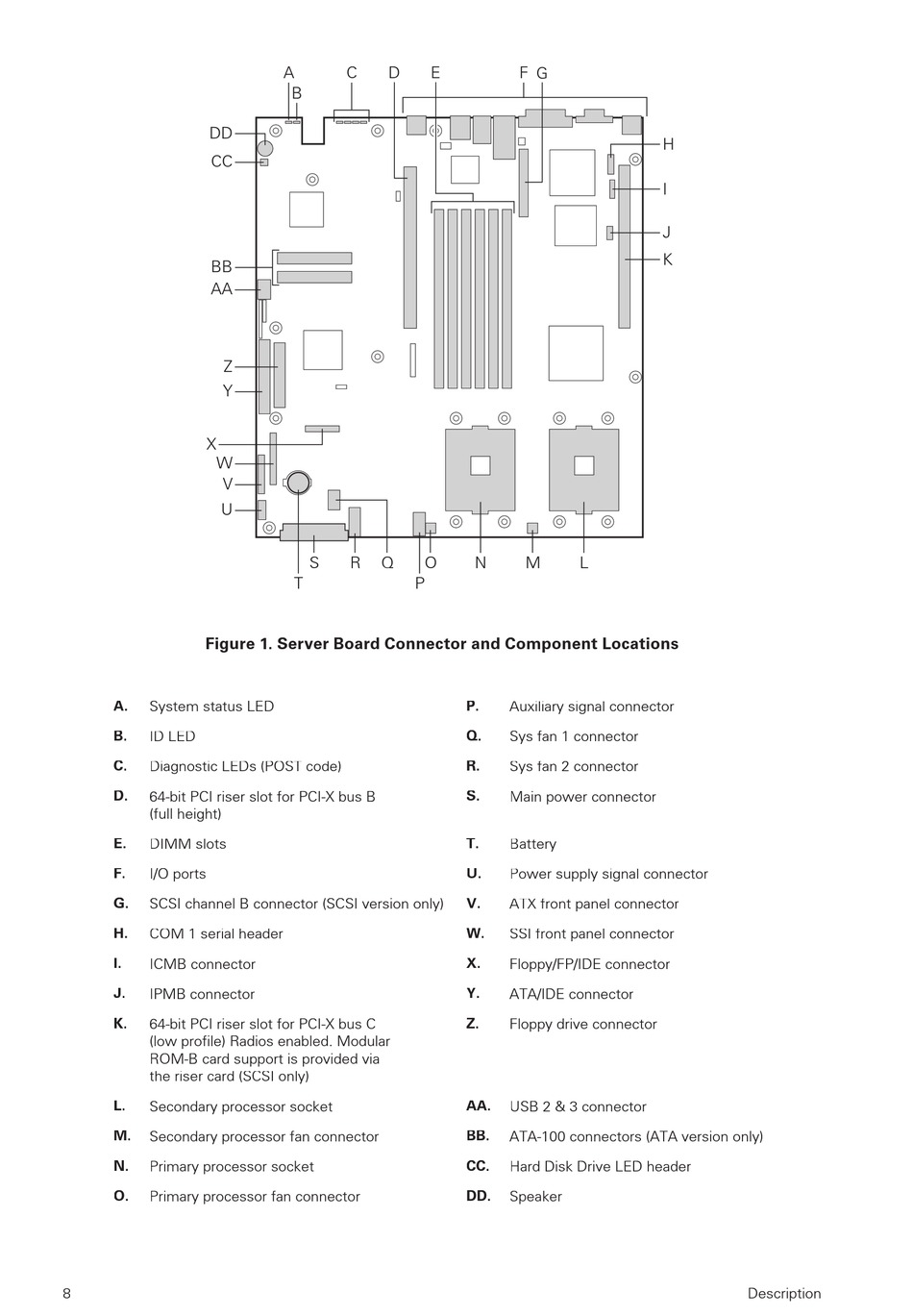

Figure 1. Server Board Connector and Component Locations
A.
System status LED
B.
ID LED
C.
Diagnostic LEDs (POST code)
D.
64-bit PCI riser slot for PCI-X bus B
(full height)
E.
DIMM slots
F.
I/O ports
G.
SCSI channel B connector (SCSI version only)
H.
COM 1 serial header
I.
ICMB connector
J.
IPMB connector
K.
64-bit PCI riser slot for PCI-X bus C
(low profile) Radios enabled. Modular
ROM-B card support is provided via
the riser card (SCSI only)
L.
Secondary processor socket
M.
Secondary processor fan connector
N.
Primary processor socket
O.
Primary processor fan connector
8
� �
P.
Auxiliary signal connector
Q.
Sys fan 1 connector
R.
Sys fan 2 connector
S.
Main power connector
T.
Battery
U.
Power supply signal connector
V.
ATX front panel connector
W.
SSI front panel connector
X.
Floppy/FP/IDE connector
Y.
ATA/IDE connector
Z.
Floppy drive connector
AA.
USB 2 & 3 connector
BB.
ATA-100 connectors (ATA version only)
CC.
Hard Disk Drive LED header
DD.
Speaker
