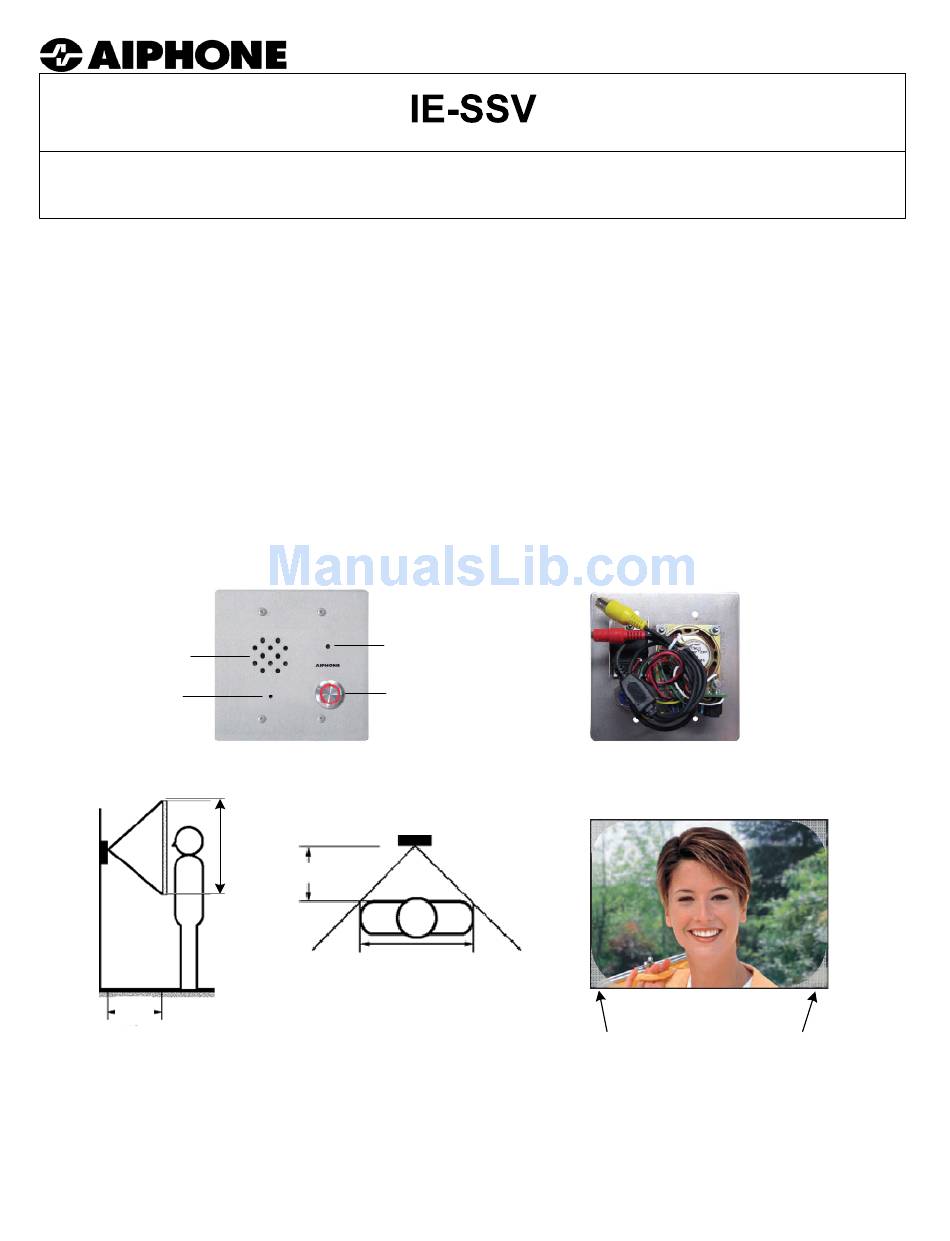

Aiphone IE-SSV Instructions

Vandal Resistant Sub Station with built in Color Pinhole Camera
The IE-SSV is a 2-gang stainless steel vandal proof and weather resistant sub station designed for use with the
systems listed above. It is constructed of 12 gauge stainless steel and has a stand alone color camera built in. The
unit either flush mounts into a 2-gang box, or surface mounts using the SBX-2G. Each unit includes a 12V DC power
supply for the camera, tamper proof screws, and a tool for installation.
INSTALLATION:
1. For flush mounting, install sub station in standard 2-gang electrical box with minimum 2-1/2" depth.
2. For surface mounting, use the SBX-2G surface mount enclosure (sold separately).
3. Only the 12V DC power supply included should be used to power the IE-SSV camera.
4. IMPORTANT! These units are designed for use in normal weather conditions, and to allow drainage and
evaporation of moisture that naturally gets into the unit.
unit when installing, and do not use weather stripping around the perimeter of the box when
sealing the unit is required, the bottom must remain unsealed. Sealing the unit will prevent or inhibit moisture from
dissipating from inside the unit, which may cause corrosion or deterioration of the internal components over time.
Speaker
Microphone
50cm
20"
The view achieved if the subject is 20" from the
camera is: 18" Vertically and 26½" Horizontally
0607
for use with AX, IE, TC-M, or TD-H Systems
- INSTRUCTIONS -

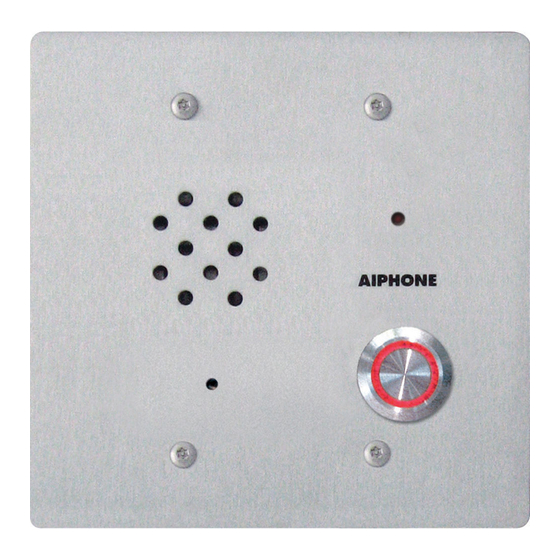

Front View
Camera
Red Lit
Call button
45cm
18"
50cm / 20"
67cm
26½"
Do not apply caulking or silicone sealant around the
Back View
Transparent corner shadowing
on the picture is normal.
mounting. If
Page 1
