Aiphone TD-24H/B Specifications

Vandal Resistant Sub Stations for IE, TD-H,TC-M Systems
The IE-SS and IE-SSR are vandal proof and weather resistant sub stations designed for use with the systems listed
above. They're constructed with 12 gauge stainless steel, and the IE-SSR features a red mushroom call button. The
units either flush mount into a 2-gang box, or surface mount with the SBX-2G. Each unit includes tamper proof screws
and a tool for installation.

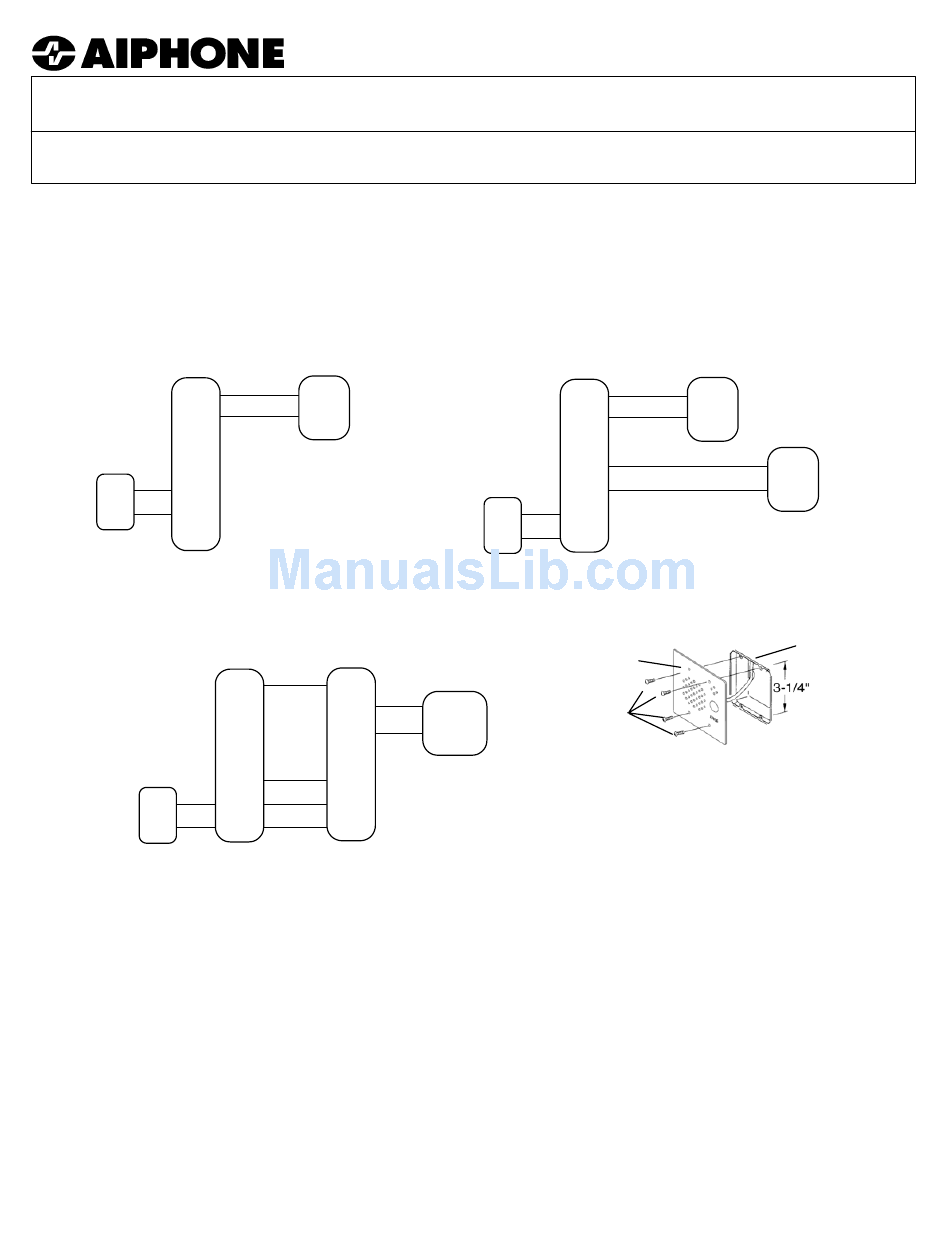

WIRING DIAGRAM (IE Series):
IE-1AD
1
2
PT-1210N
+
~
-
~
WIRING DIAGRAM (TD-H Series):
TD-H Master
TD-H Masters:
TD-3H/B
TD-6H/B
TD-12H/B
TD-24H/B
PS-1225UL
+
-
SPECIFICATIONS:
Power Source:
Speaker:
Microphone:
Call Button:
Communication:
Faceplate:
Mounting:
Terminations:
Wiring:
Wiring Distance:
Dimensions (H x W x D):
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
IE-SS/IE-SSR
- INSTRUCTIONS -
IE-SS/IE-SSR
Red
Blk
DE-UR
IE-SS/IE-SSR
C
1
1
~
2
24
C
D
D
+
+
-
-
Supplied by master station
Baffle protected, Water proof and puncture resistant, 2.4 oz. magnet
Baffle protected
SPST call button. Call tone is activated at master when call button is pressed
IE-SS: Limited stop button. IE-SSR: Limited stop, red mushroom button
Hands free at sub. Master uses handset.
12 gauge stainless steel
Flush mount into a 2-gang box. Surface mount into SBX-2G, sold separately.
Tamper proof screws included (6x32 for use with flush gang box) with T-10 TORX bit.
Color-coded prewired pigtails
2 conductors. Use Aiphone #812202
See system that unit is being used with for distance specifications
IE-SS/IE-SSR alone: 4-11/16" x 4-11/16" x 2"
With SBX-2G: 4-3/4" x 4-7/8" x 3-5/8" (Top) 2-3/8" (Bottom)
TOLL FREE TECHNICAL SUPPORT: (800) 692-0200
TOLL FREE FAX LINE: (800) 832-3765
E-MAIL: tech-serv@aiphone.com
