Aiphone IE-SS-LD/A Instructions

The IE-SS-LD/A and IE-SSR-LD remote stations are vandal proof and weather resistant, designed for use with the
systems listed above. They're constructed with 12 gauge stainless steel, and the IE-SSR-LD features a red mushroom
call button. The units either flush mount into a 2-gang box, or surface mount with the SBX-2G. Each unit includes
tamper proof screws and a tool for installation.
INSTALLATION:
1. For flush mounting, install sub station in standard 2-gang electrical box with min. 2-1/2" depth.
2. For surface mounting, install sub station in the SBX-2G surface mount enclosure.
3. IMPORTANT! These units are designed for use in normal weather conditions, and to allow drainage and
evaporation of moisture that naturally gets into the unit. Do not apply caulking or silicone sealant around the
unit when installing, and do not use weather stripping around the perimeter of the box when mounting. If
sealing the unit is required, the bottom must remain unsealed.Sealing the unit will prevent or inhibit moisture from
dissipating from inside the unit, which may cause corrosion or deterioration to the internal components over time.

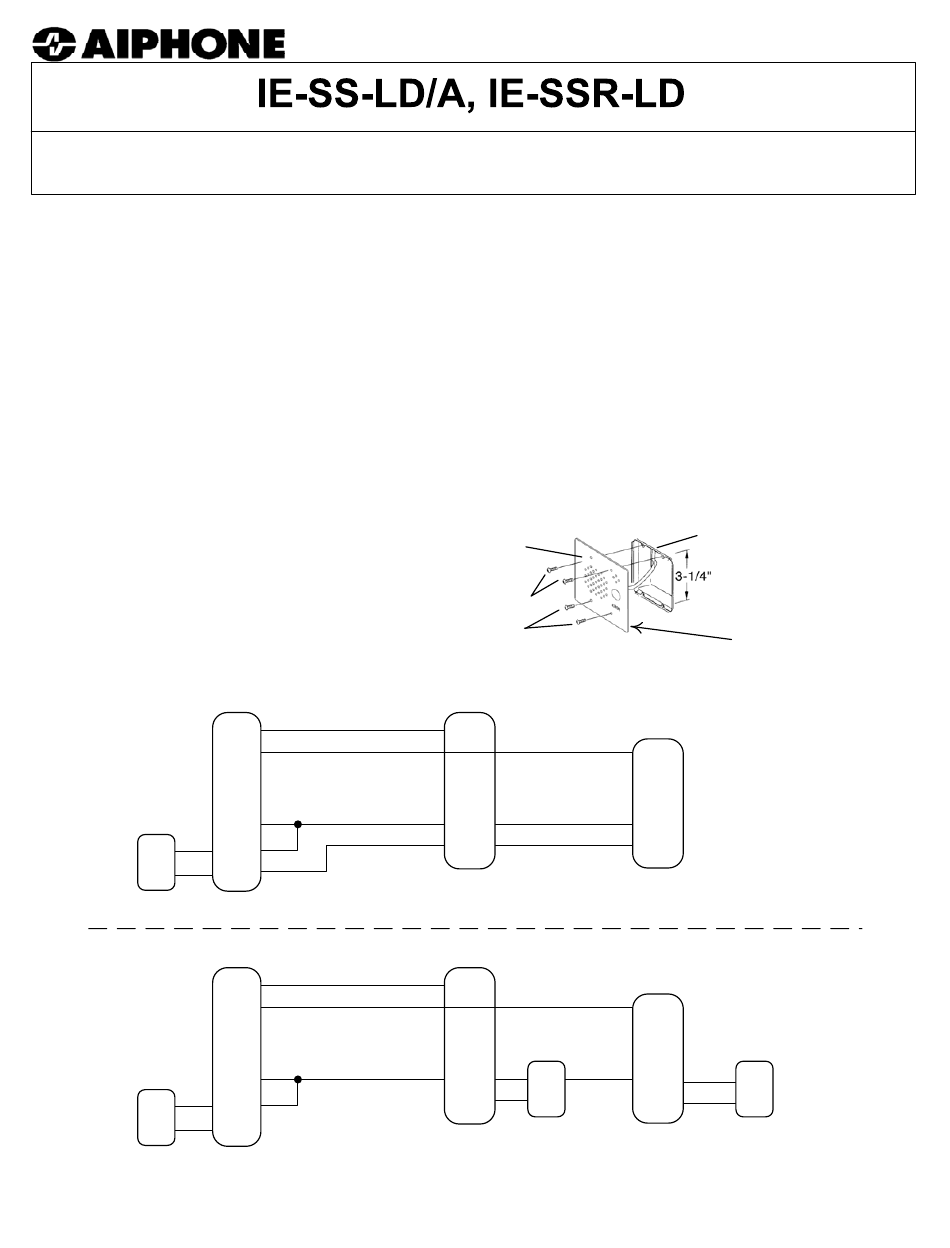

WIRING DIAGRAM:
LEF-10-LD
10
PS-1225UL
-
+
LEF-10-LD
10
PS-1225UL
-
+
Pg. 1
Vandal Resistant Stainless Steel Sub Stations
for LEF-LD & LAF-C-LD Systems
- INSTRUCTIONS -
1
2
~
E
-
E/- jumper
+
attached on
master
1
2
~
E
-
E/- jumper
+
attached on
master
MOUNTING:
IE-SS-LD/A
(or IE-SSR-LD)
TORX
screws
IE-SS-LD/A
Red
Blk
Wht
IE-SS-LD/A
Red
PS-1225UL
-*
Blk
+
Wht
2-GANG BOX
Do not apply
sealant between
unit and box.
IE-SSR-LD
Red
Blk
Wht
IE-SSR-LD
Red
12V DC
power supply
-*
Blk
+
Wht
supplies must be
NOTE:
For complete system information, please refer to the
installation manual provided with the intercom system.
*Negatives of
remote power
tied together.
