Billion BiPAC 7800N Specifications

EWAN
BiPAC 7800(N)
(802.11n) ADSL2+ / Broadband Firewall Router
with Gigabit Ethernet Switch
Experience super fast broadband connectivity with the ADSL2+ and FTTx
multi-service gateway!

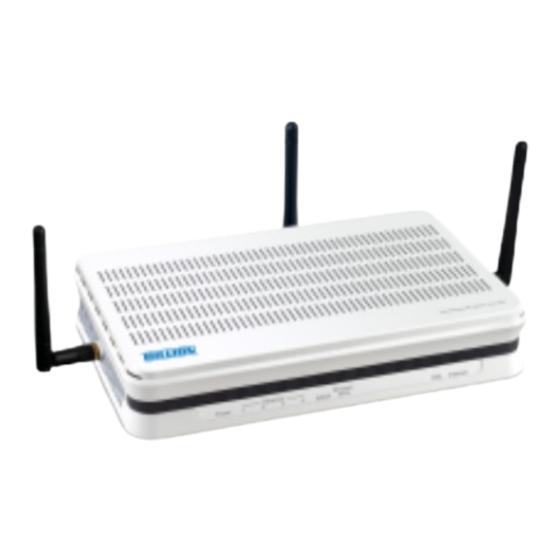

The BiPAC 7800(N) series is an all-in-one ADSL2+ / Broadband Router that offers users the flexibility of multiple Internet
connections and expanded wireless coverage. All this is offered while maintaining high-speed broadband access via ADSL2+ or
through an Ethernet WAN. The integrated 802.11n Wireless Access Point ensures the 7800N offers faster wireless speeds (up
to 300Mbps) while two built-in antennae effectively search for wireless signals. The BiPAC 7800(N) automatically adopts the
optimal connection to deliver smooth, constant signal reception even if obstacles are present. The BiPAC 7800(N) series is
equipped with a second Ethernet WAN interface, which can be used to connect to an external broadband modem. This unique
feature frees users to add FTTx services services when they become available. Users can easily enjoy high-bandwidth
applications such as High Definition IPTV services without changing their home network. A robust firewall is also built in to
provide protection against hacker attacks while the Quality of Service feature prioritizes queues and traffic for applications such
as music downloads, online gaming, video streaming and file sharing.
The Second Ethernet WAN
The BiPAC 7800(N) series uses a Dual-WAN approach with an ADSL2+ port and a separate RJ-45 WAN port that offers another
broadband connectivity option for connecting to Cable, VDSL or Fiber modems.

Express Internet Access

The BiPAC 7800(N) series is compliant with worldwide ADSL standards, and supports download rates of up to 12 / 24Mbps
using ADSL2 / 2+, 8Mbps using ADSL and an upload rate of up to 1Mbps. The integrated Annex M standard supports ADSL2 /
2+ for higher uploads by doubling the upload data rate. The 4-port Gigabit Switch incorporated into the BiPAC 7800(N) enables
users to connect to multiple computers or wired-Ethernet devices easily and enjoy blistering LAN transmission for multimedia
applications such as interactive gaming, IPTV video streaming and real-time audio.
Smooth, Responsive Net Connection
Quality of Service (QoS) gives users full control over outgoing data traffic. Priority can be assigned by the router to ensure that
important transmissions like gaming packets, VoIP calls or IPTV / streaming content passes through the router at lightning
speed, even when there is heavy Internet traffic. The speed of different types of outgoing data passing through the router is also
controlled to ensure that users do not saturate bandwidth with their browsing activities.
Robust Firewall Security
The NAT default firewall has advanced anti-hacker pattern-filtering protection features that automatically detect and block Denial
of Service (DoS) attacks. In addition, Packet Filtering provides high-level security for access control. Built with Stateful Packet
Inspection (SPI), the router enables users to determine whether or not a data packet is allowed to pass through the firewall to
the private LAN.
Optimal Wireless Speeds and Coverage (BiPAC 7800N)
With an integrated 802.11n Wireless Access Point, the router delivers up to 6 times the speed and 3 times the wireless coverage
of an 802.11b / g network device. It supports a data rates up to 300Mbps and is also compatible with 802.11b / g equipment. The
Wi-Fi Protected Access (WPA-PSK / WPA2-PSK) and Wired Equivalent Privacy (WEP) features enhance the level of
transmission security and access control over Wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS)
standard, allowing users to establish a secure wireless network by simply pushing a button. If the network requires wider
coverage, the built-in Wireless Distribution System (WDS) repeater function allows users to expand the wireless network without
the need for any external wires or cables.
BiPAC 7800 BiPAC 7800N
Wireless speed up to 300Mbps and
3X the coverage of standard
802.11b / g
• Dual-WAN approach - ADSL2+ or
Ethernet WAN for broadband
connectivity
• 4-port gigabit switch
• Supports 802.11n wireless access
point with WPA-PSK / WPA2-PSK
(BiPAC 7800N)
• High-speed internet access via
ADSL2 / 2+; backwards compatible
with ADSL
• WPS (Wi-Fi Protected Setup)
for easy setup (BiPAC 7800N)
• Wireless speed up to 300Mbps and
3 times the coverage of standard
802.11b / g (BiPAC 7800N)
• Quality of Service Control for traffic
prioritization and bandwidth management
• SOHO firewall security with DoS
prevention and packet filtering
• Universal plug and play (UPnP)
compliance
• Dynamic Domain Name System
(DDNS)
• Available syslog
• Ease of use with quick installation
wizard and Auto-scan ADSL settings
*2
• Supports IPTV applications
• Easy Sign-On (EZSO)
