11. Gently remove the key switch assembly from the cabinet.
Pull out the right side first and gently rock the assembly until the left flange
clears the cabinet. See Figure E-12.

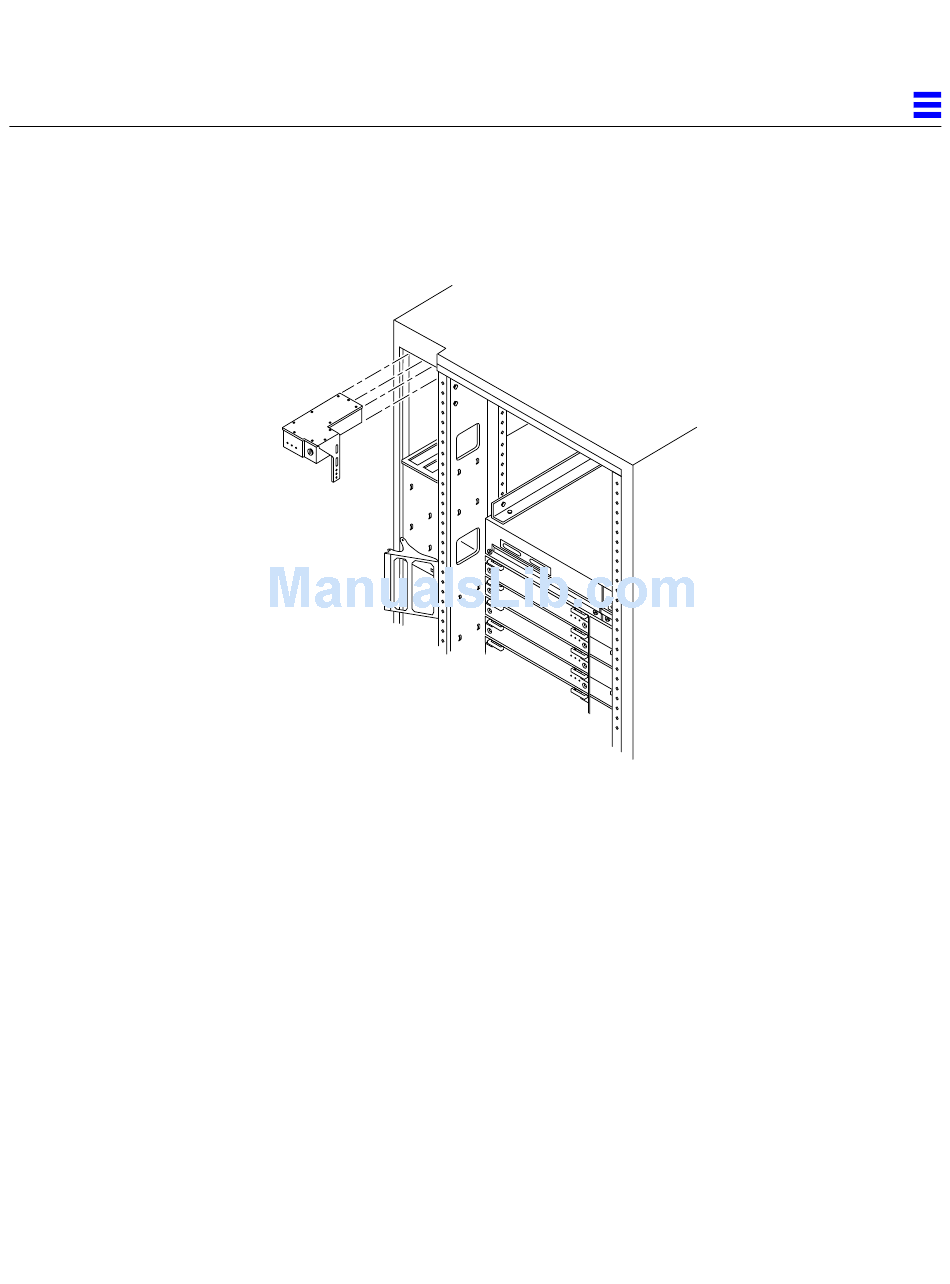

Figure E-12 Replacing the Key Switch Assembly in the
Enterprise 6000/5000 Systems
To replace the key switch assembly:
1. Insert the key switch assembly into the cabinet until it is seated properly.
The key switch assembly is seated properly when the screw holes align with
the cabinet pillar. See Figure E-12.
2. Replace the two screws on the right side that attach the key switch
assembly to the cabinet pillar.
You can access the two screws through the space previously occupied by the
SCSI tray. See Figure E-11.
