8.1.2 Removing/Replacing a Tape or CD-ROM Drive

in Enterprise 6000/5000 Systems

To remove and replace an existing device, perform steps 1 through 5. To install
a tape device for the first time, proceed to step 6.
Caution – To prevent breakage, do not grasp the panel by the bottom edge.
!
1. Remove the top panel.
Grasp the panel on both sides at the top and pull out far enough to just
disengage the ball studs. See Figure 8-4.
2. Remove the panel and set it aside.

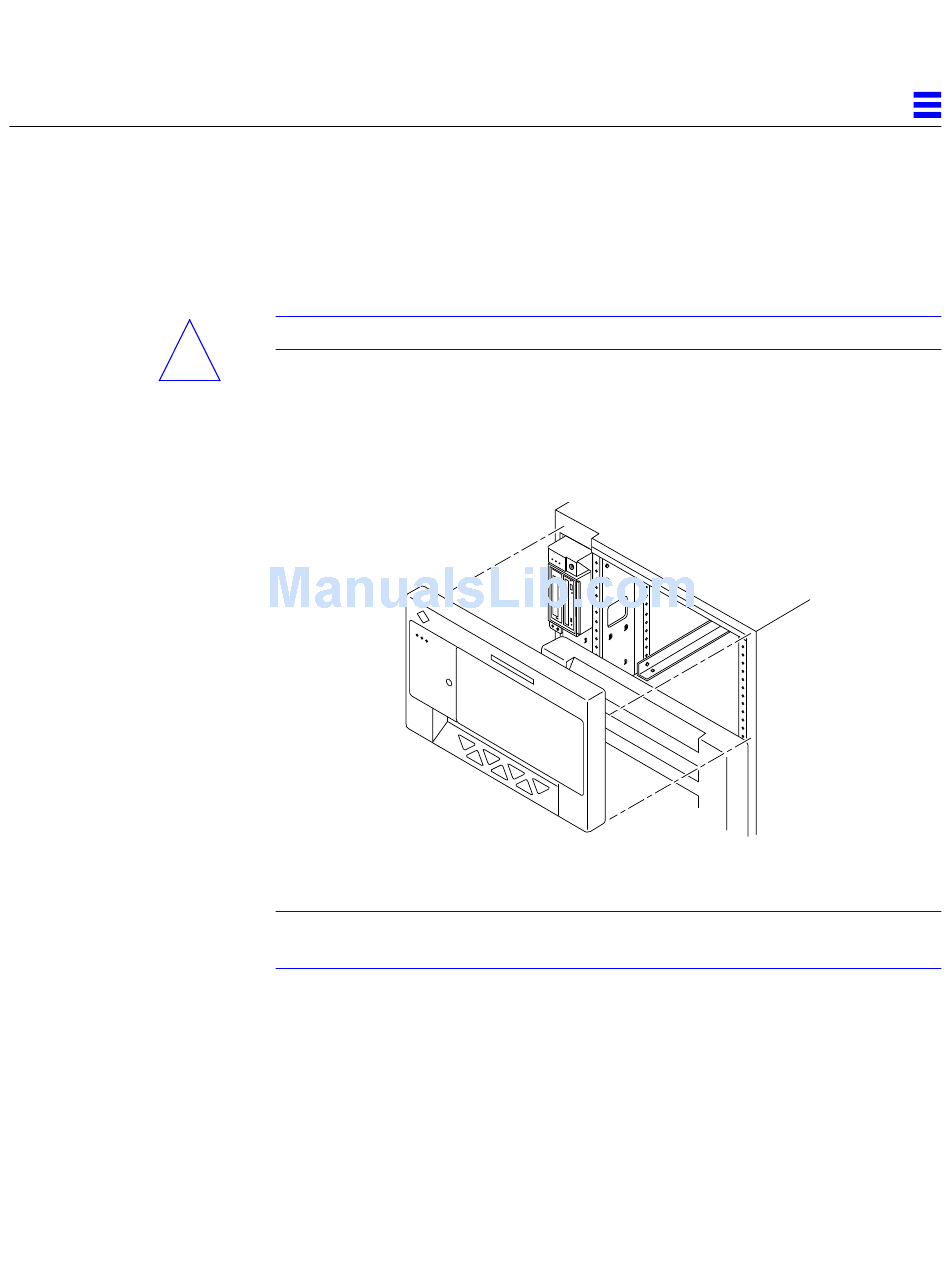

Figure 8-4
Note – It is not necessary to remove the SCSI tray to replace a device; only the
device enclosure needs to be removed.
3. Release the device enclosure from the SCSI tray by removing three screws
on the left-hand side as depicted in Figure 8-5.
You will then be able to move the device enclosure forward to release the
data and power cables from the rear of each device.
Internal SCSI and Storage Devices
Removing the Top Front Panel
