SY-6VBA 133 Quick Start Guide

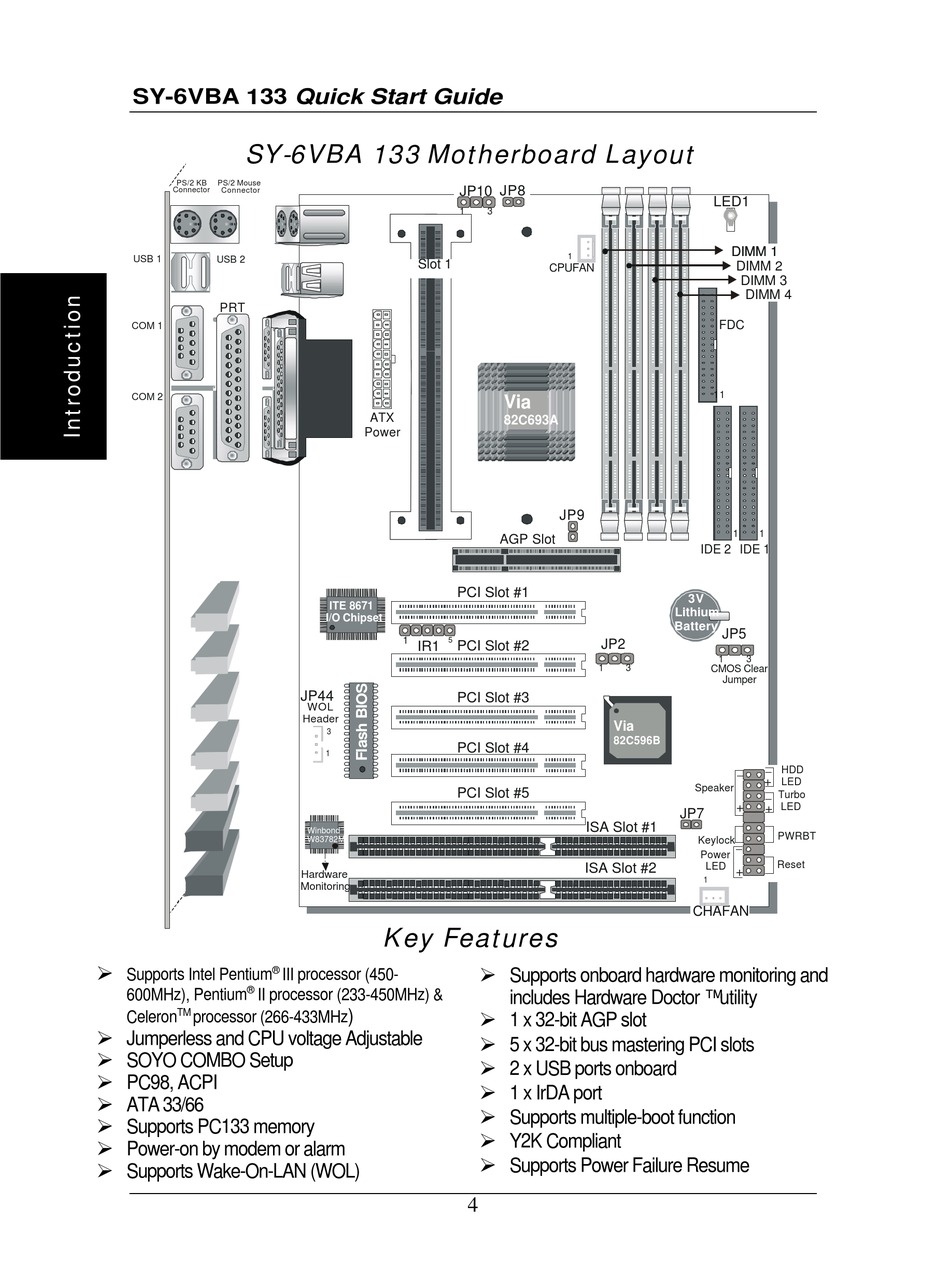

SY-6VBA 133 Motherboard Layout

PS/2 KB PS/2 Mouse
Connector
Connector
USB 1 USB 2
PRT
COM 1
COM 2
Ø
®
Supports Intel Pentium
®
600MHz), Pentium II processor (233-450MHz) &
TM
Celeron processor (266-433MHz
Ø Jumperless and CPU voltage Adjustable
Ø SOYO COMBO Setup
Ø PC98, ACPI
Ø ATA 33/66
Ø Supports PC133 memory
Ø Power-on by modem or alarm
Ø Supports Wake-On-LAN (WOL)
Slot 1
®
ATX
Power
PCI Slot #1
ITE 8671
I/O Chipset
1
5
IR1 PCI Slot #2
JP44
PCI Slot #3
WOL
Header
3
PCI Slot #4
1
PCI Slot #5
Winbond
W83782M
Hardware
Monitoring

Key Features

III processor (450-
)
JP8
JP10
1 3
1
CPUFAN
®
Via
82C693A
JP9
AGP Slot
JP2
1 3
Via
82C596B
ISA Slot #1
ISA Slot #2
Ø Supports onboard hardware monitoring and
includes Hardware Doctor ™ utility
Ø 1 x 32-bit AGP slot
Ø 5 x 32-bit bus mastering PCI slots
Ø 2 x USB ports onboard
Ø 1 x IrDA port
Ø Supports multiple-boot function
Ø Y2K Compliant
Ø Supports Power Failure Resume
4
LED1
DIMM 1 DIMM 1
DIMM 2
DIMM 3
DIMM 4
FDC
1 1
1 1
IDE 2 IDE 1
3V
Lithium
Battery
JP5
1 3
CMOS Clear
Jumper
®
HDD
+ LED
Speaker
Turbo
LED
+
+
JP7
PWRBT
Keylock
Power
Reset
LED
+
1
CHAFAN
