GE CLOCK CONFIGURATION TOOL SOFTWARE INTERFACE
Quick configuration
24
This procedure applies to an average installation. Additional steps are required for some
network configurations.
1.

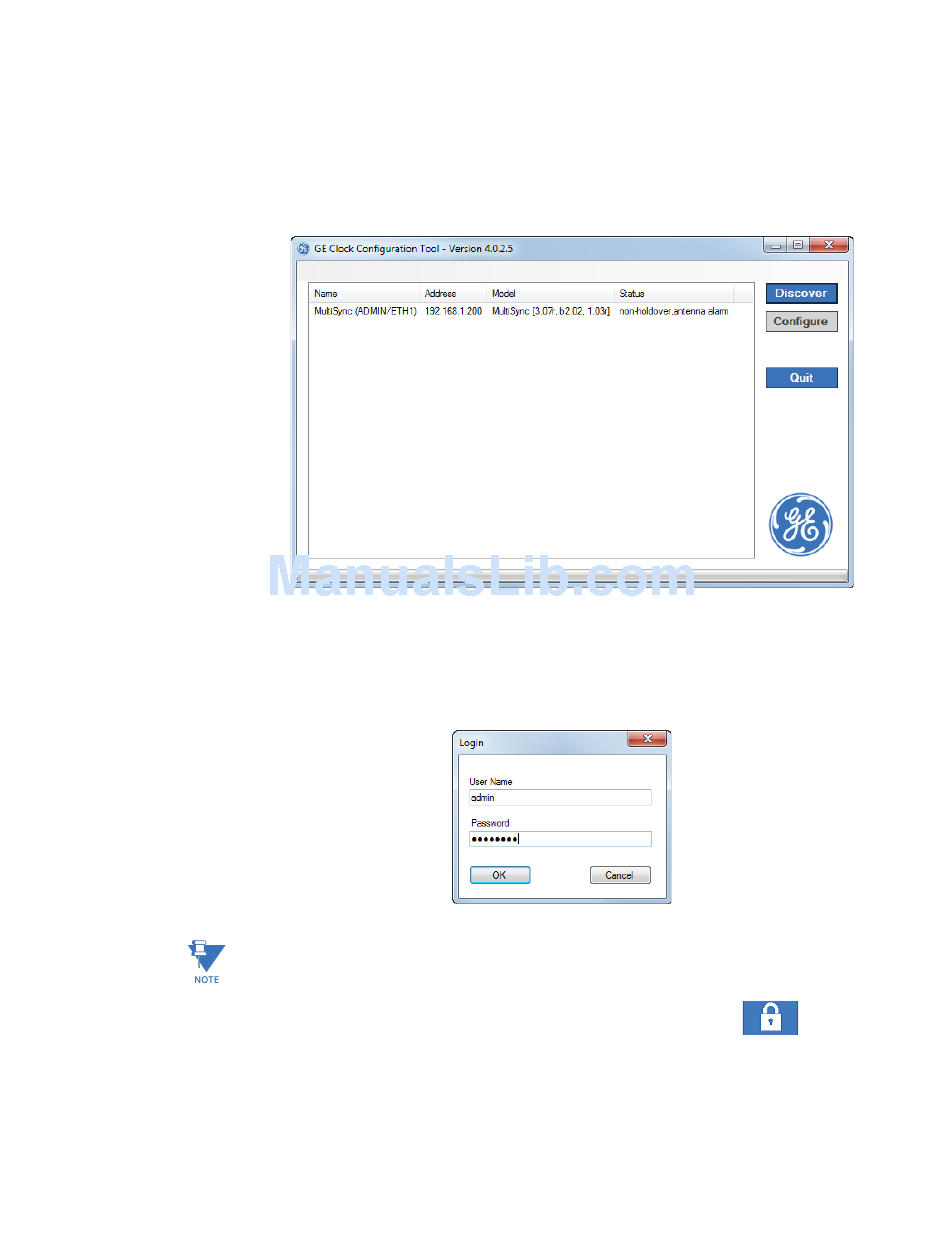

To connect to the MultiSync 100, open the GE Clock Configuration Tool Software, and
click Discover.
2.
Select your MultiSync 100 from the list of available devices, and click Configure.
The default login for the GE Clock Configuration Tool is:
User Name: admin
Password: Password
If the MultiSync 100 does not appear when you press Discover in the GE Clock
Configuration Tool, either connect the MultiSync 100 directly using a cross-over Ethernet
cable, or install the driver from the CD and connect the MultiSync 100 using a USB cable.
3.
Set a new password as prompted, or by clicking the Security icon
of the GE Config window.
The first time you login, you must change your password.
4.
On the GPS tab, for an average installation, set the following:
4.1.
Cable Delay to 4ns for every meter of antenna cable
4.2.
Mask Angle to 5 degrees
CHAPTER 4: INTERFACES
MULTISYNC 100 GPS CLOCK – INSTRUCTION MANUAL
