BATTERY CHARGING
■ Optional battery chargers

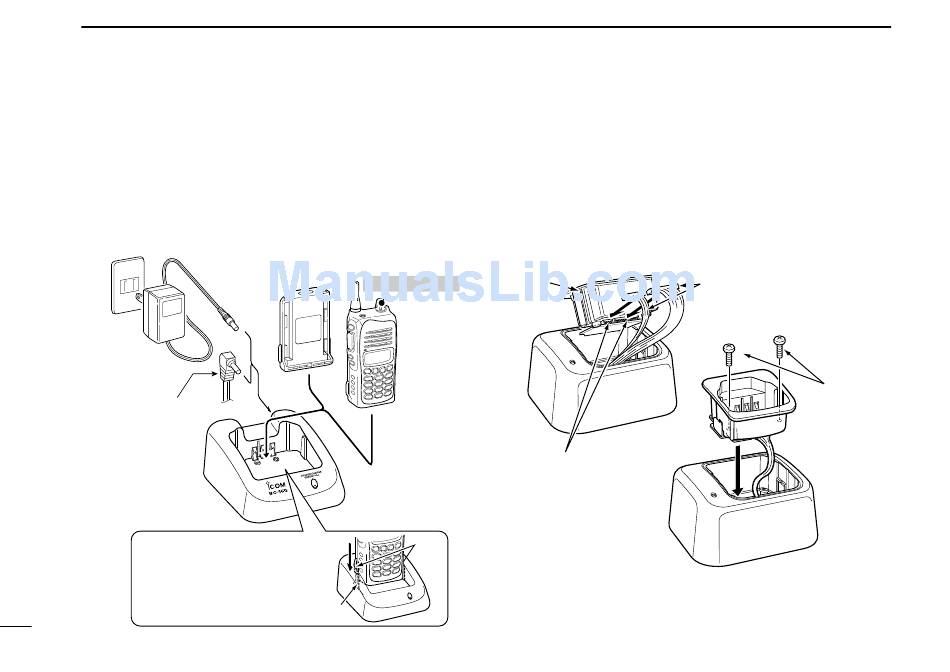

D Rapid charging with the BC-160
The optional BC-160 provides rapid charging of optional Li-
Ion battery packs.
• An AC adapter (may be supplied with BC-160 depending
on version) or the DC power cable (OPC-515L/CP-17L) is
additionally required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
IMPORTANT!:
Ensure the guide lobs on the
battery pack are correctly
aligned with the guide rails
inside the charger adapter.
20
Battery Transceiver
pack
Turn power OFF
Lobs
Guide rail
D AD-106 installation
The AD-106
charger adapter
BC-119N or BC-121N before battery charging.
➥ Connect the AD-106
charger adapter
119N/BC-121N as below, then install the AD-106 into the
holder space of the BC-119N or BC-121N with the sup-
plied screws.
AD-106
Plugs
* This illustration is described with the BC-119N.
must be installed into the
and the BC-
Connectors
Screws supplied
with the charger
adapter
